Brake Warning Light Circuit (Remains On): Wiring Diagram

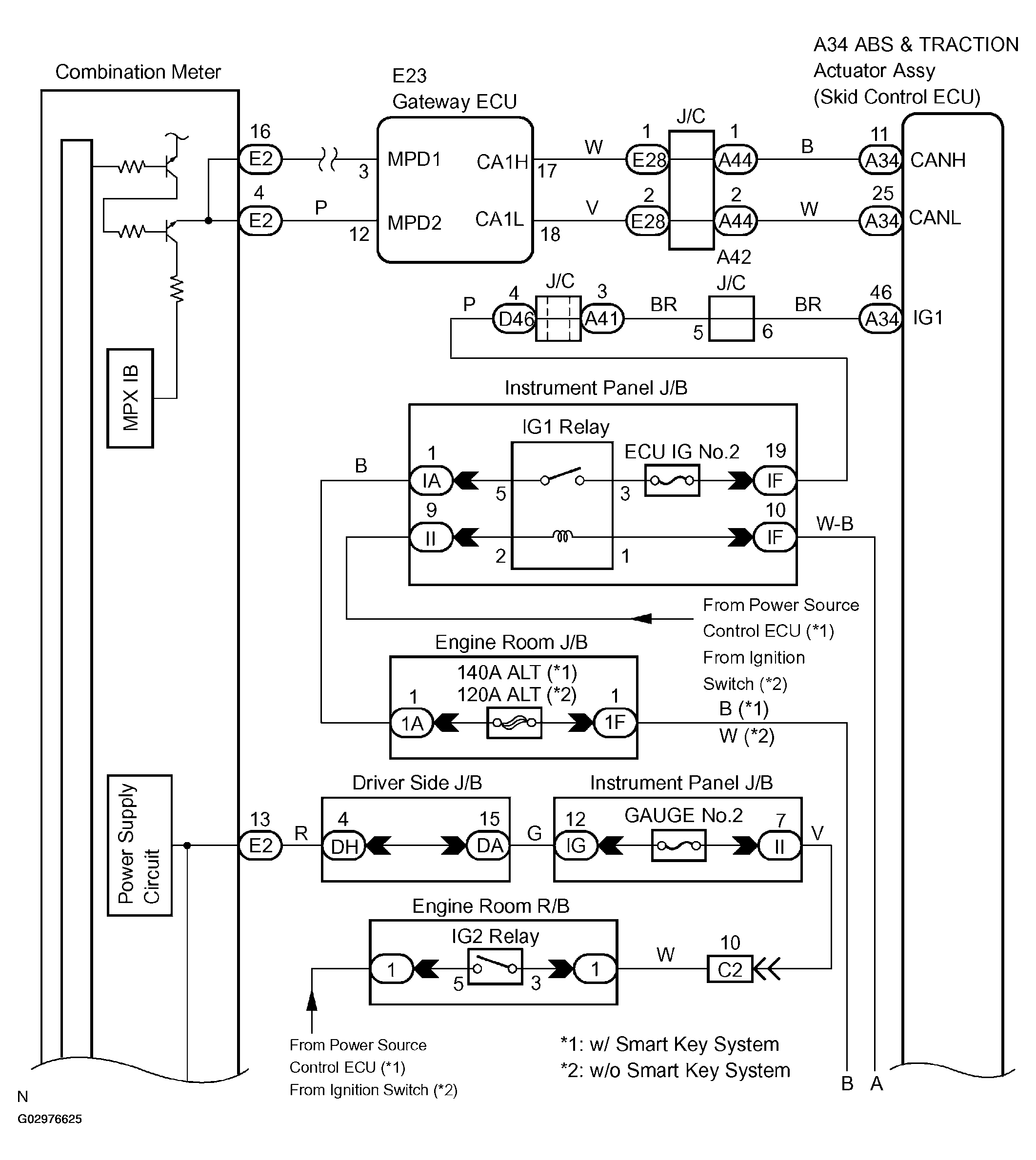

Fig 1: Brake Warning Light Circuit Diagram (1 Of 2)
G02976625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

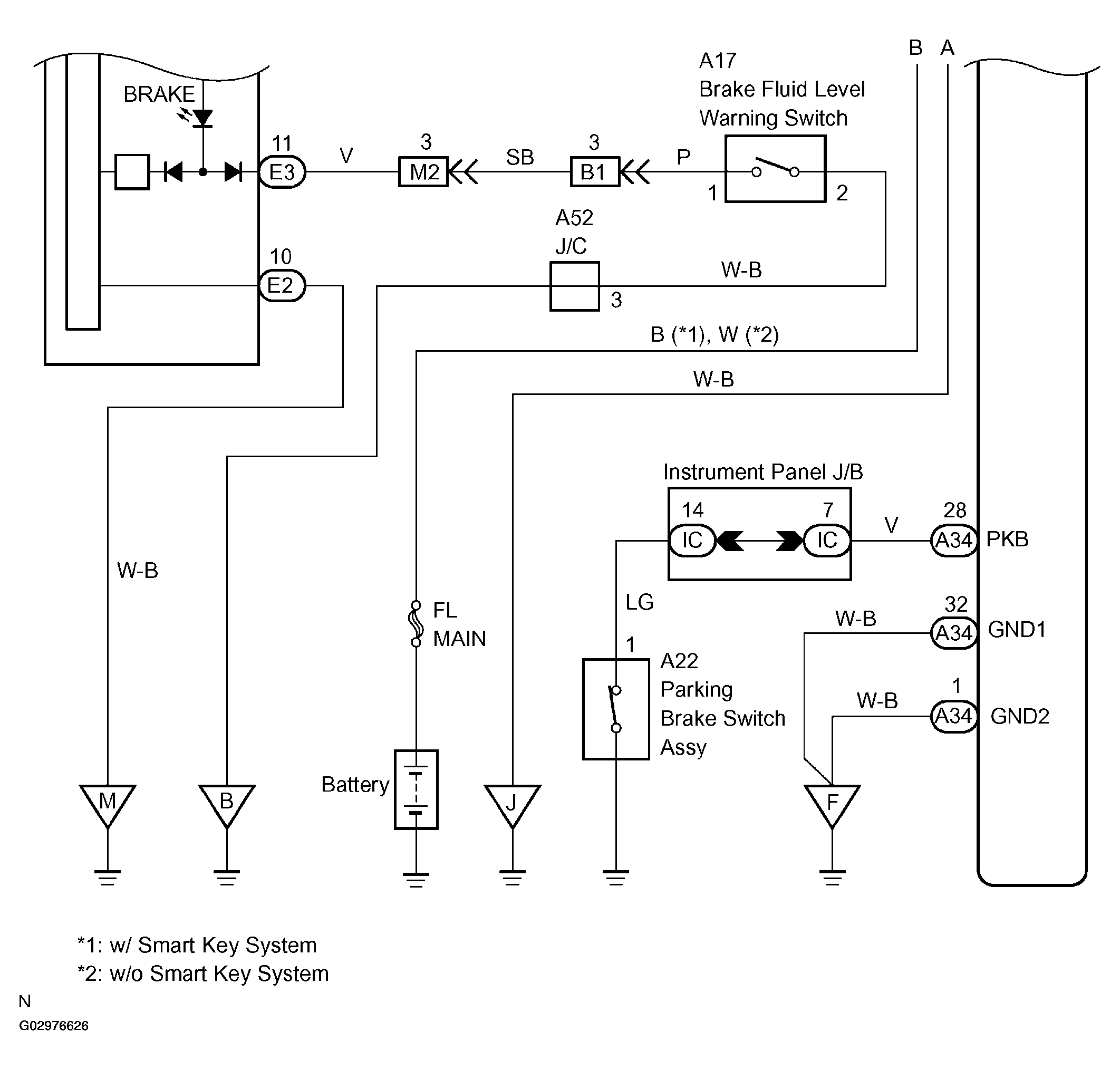

Fig 2: Brake Warning Light Circuit Diagram (2 Of 2)
G02976626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
