Speed Sensor Front LH: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE SPEED SENSOR FRONT LH
   1. Disconnect the speed sensor connector and clamp.

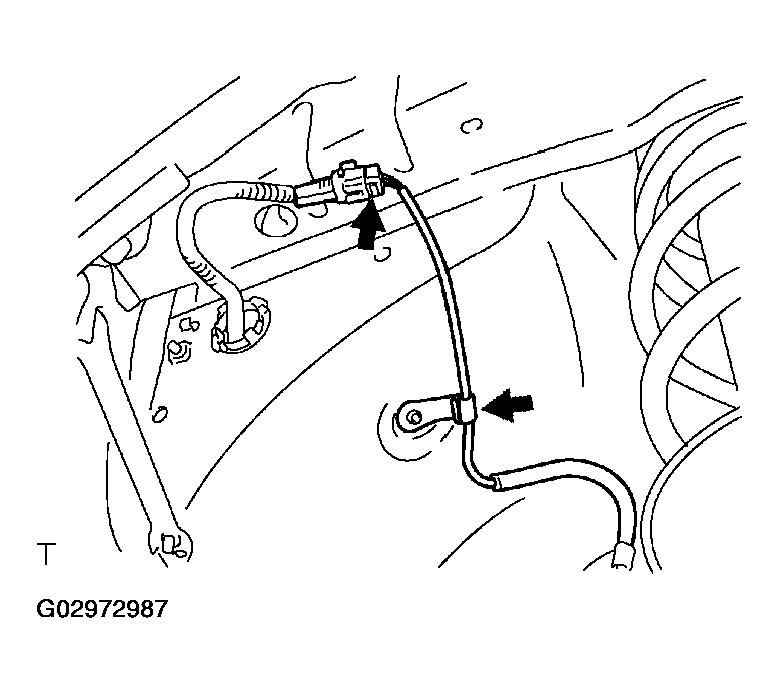

      Fig 1: Disconnecting Speed Sensor Connector And Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

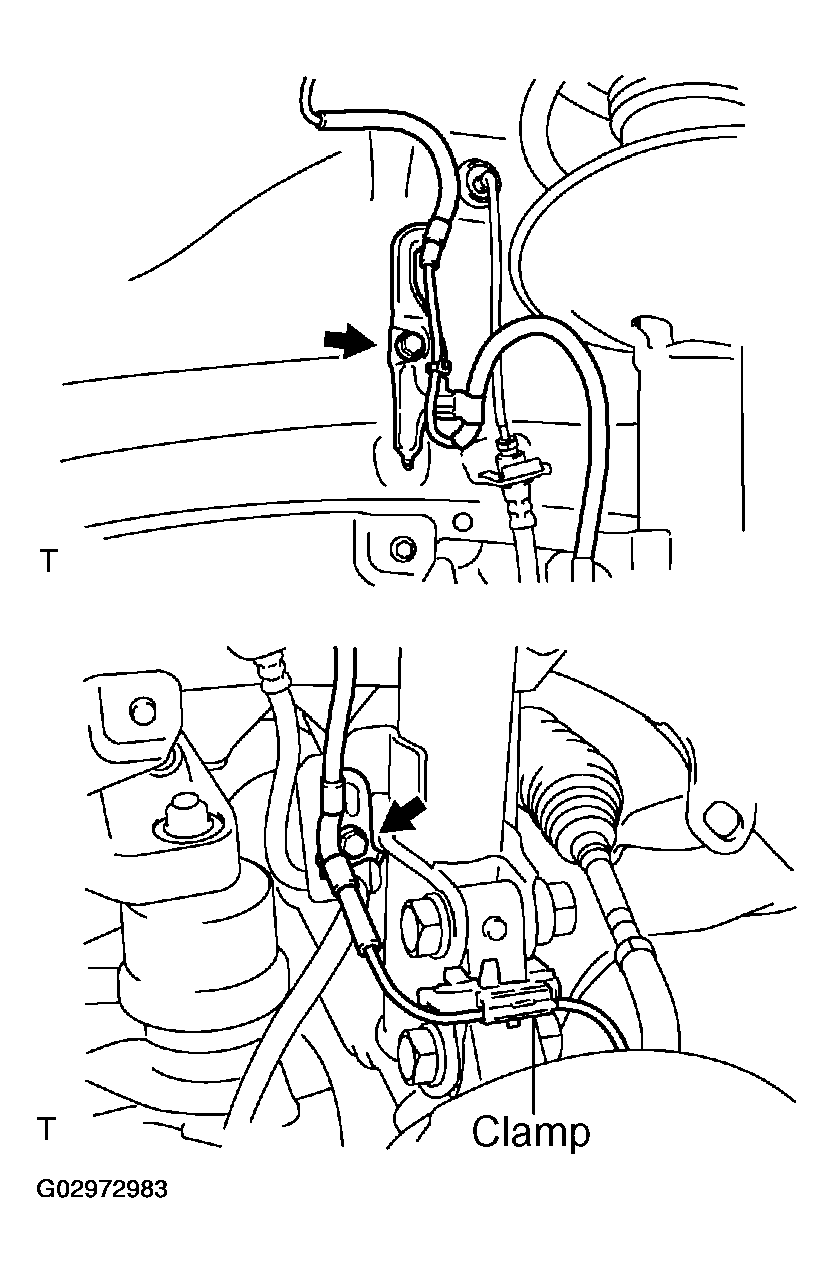

   2. Remove the 2 bolts and separate the speed sensor harness from the body and shock absorber assy.
   3. Remove the clamp from the steering knuckle.
      Fig 2: Removing Clamp From Steering Knuckle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

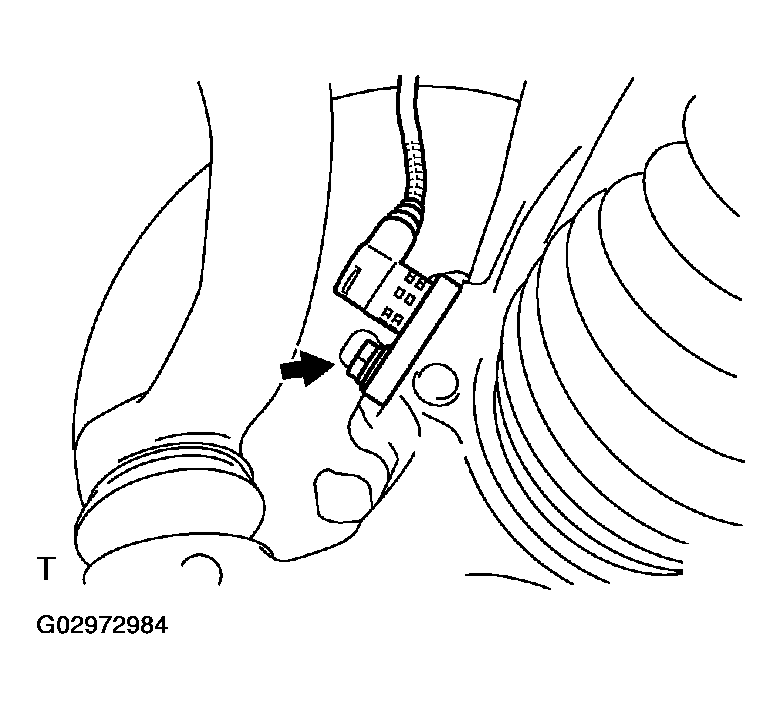

   4. Remove the bolt and the speed sensor front LH.
      NOTE:

      • Prevent foreign matter from attaching to the sensor tip.
      • Clean the installation hole and surface for the speed sensor every time the speed sensor is removed.
      Fig 3: Cleaning Installation Hole And Surface For Speed Sensor Every Time Speed Sensor Is Removed

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SPEED SENSOR FRONT LH
   1. Install the speed sensor front LH with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE: Prevent foreign matter from attaching to the sensor tip.
      Fig 4: Installing Speed Sensor Front LH With Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

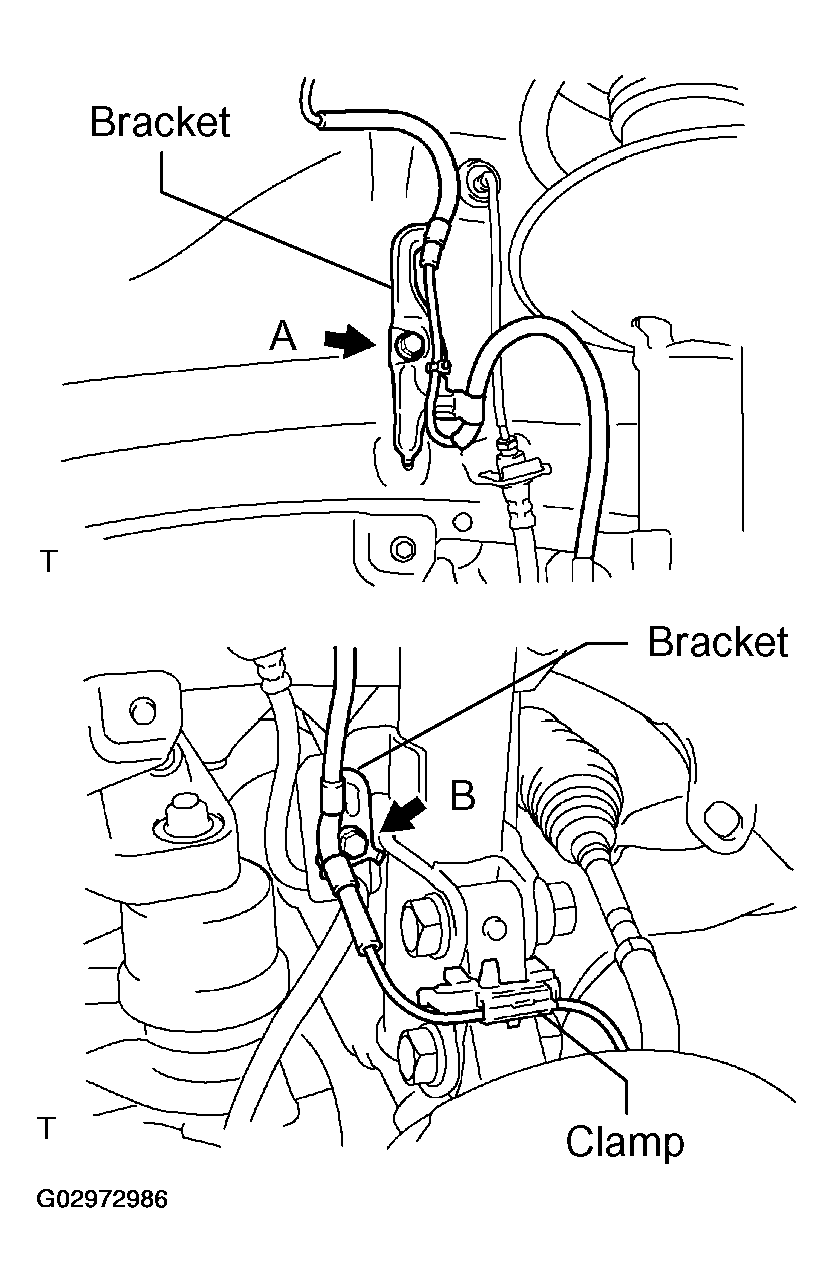

   2. Install the sensor harness brackets with the 2 bolts to the body and shock absorber assy.

      Torque:

      Bolt A: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt B: 19 N.m (192 kgf.cm, 14 ft.lbf)

   3. Connect the clamp to the steering knuckle.
      NOTE: Do not twist the wire harness for speed sensor front LH when installing the speed sensor.
      Fig 5: Connecting Clamp To Steering Knuckle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Connect the speed sensor connector and clamp.
      Fig 6: Connecting Speed Sensor Connector And Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT FENDER LINER LH
6. INSTALL FRONT WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

7. CHECK ABS SPEED SENSOR SIGNAL (SEE  DIAGNOSIS SYSTEM - ABS WITH EBD & BA & TRAC & VSC SYSTEM  OR  DIAGNOSIS SYSTEM - ABS WITH EBD  )
