Rear Brake Pad, Brake Caliper & Brake Rotor: Components

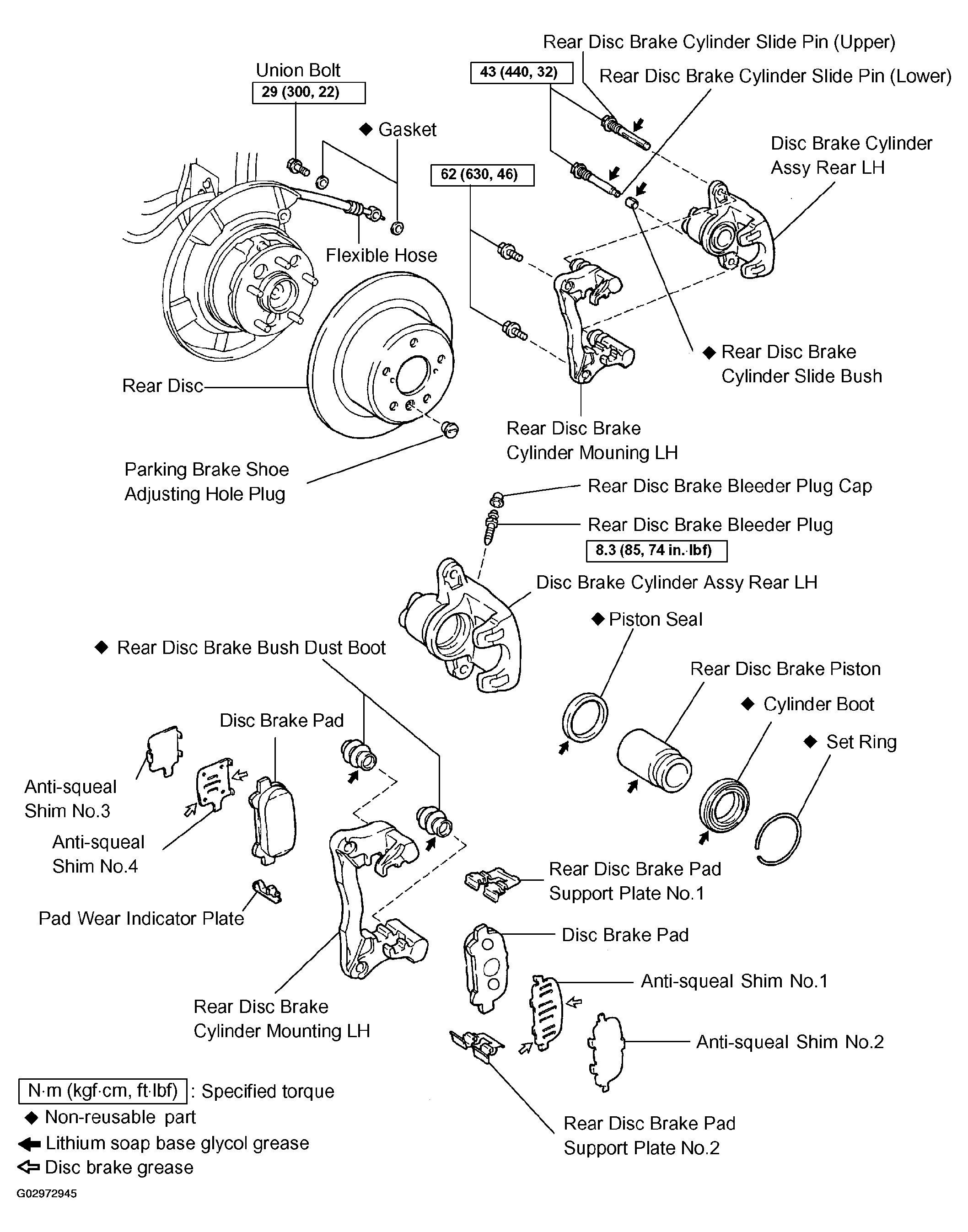

Fig 1: Identifying Rear Brake Components

G02972945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
