Parking Brake Control Pedal ASSY: Components

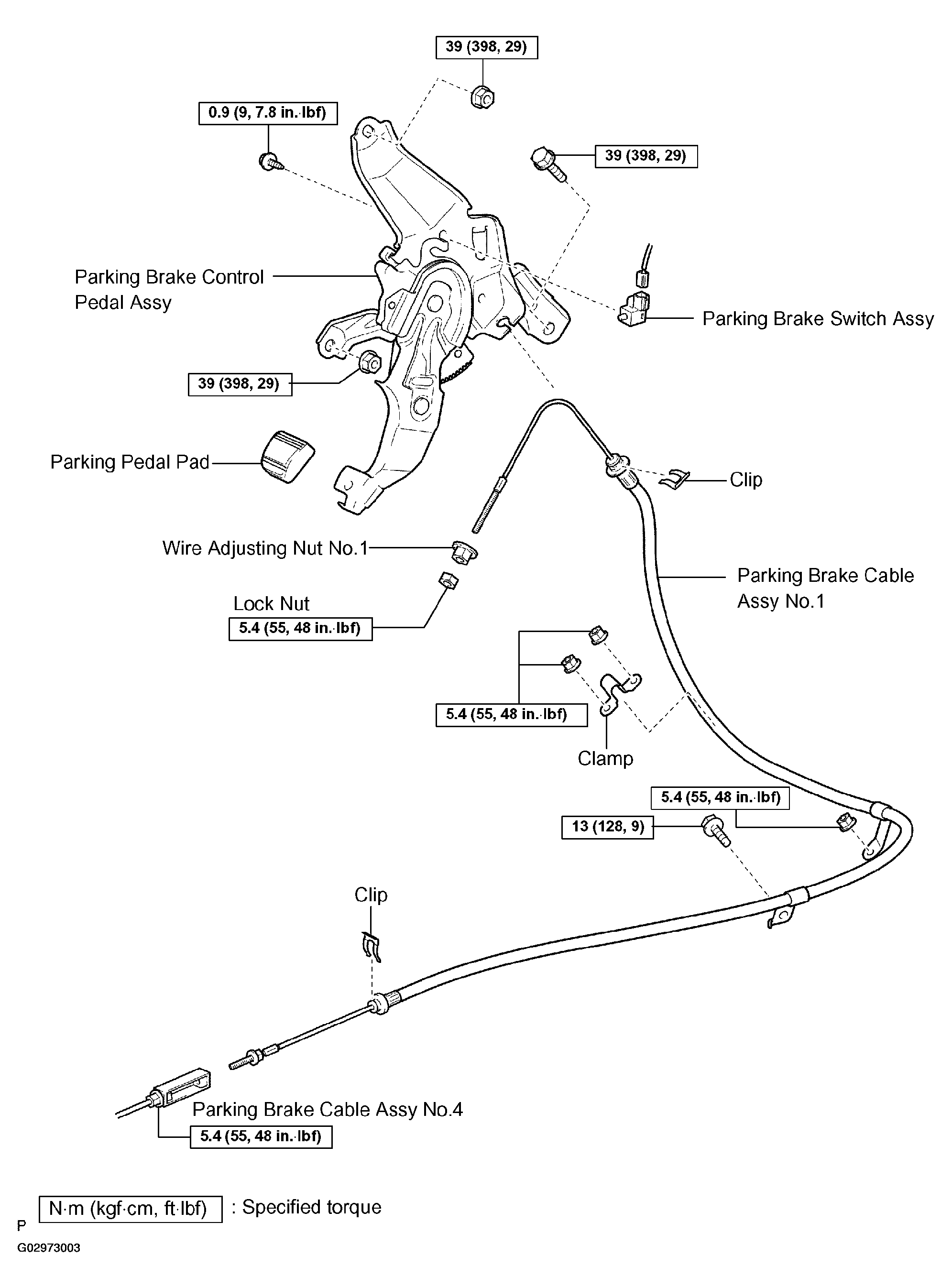

Fig 1: Identifying Parking Brake Control Pedal Assy Components

G02973003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
