Parking Brake Cable ASSY No.4: Replacement

REMOVE SHIFT LEVER KNOB SUB-ASSY (SEE REPLACEMENT )
REMOVE POSITION INDICATOR HOUSING ASSY (SEE REPLACEMENT )
REMOVE CONSOLE BOX UPPER
REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE REPLACEMENT )
REMOVE CONSOLE BOX ASSY (SEE REPLACEMENT )
REMOVE PARKING BRAKE CABLE ASSY NO.4
1. Release the parking brake.
2. Hold the nut on the parking brake cable assy No.1 using a wrench. Loosen and disconnect the turnbuckle from the parking brake cable assy No.1 using a wrench.

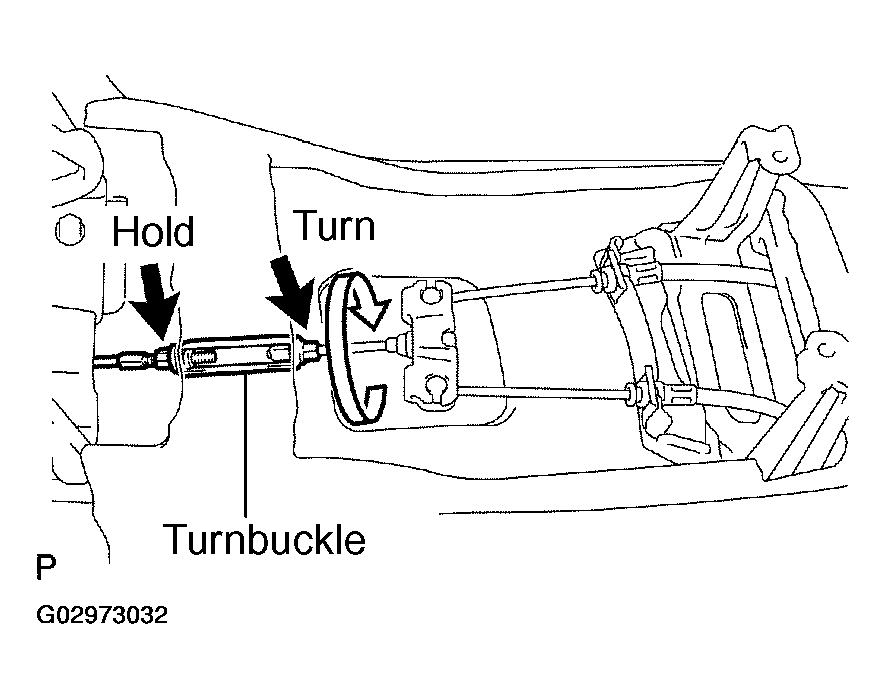

  Fig 1: Disconnecting Turnbuckle From Parking Brake Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Slide the boot as shown in the illustration.

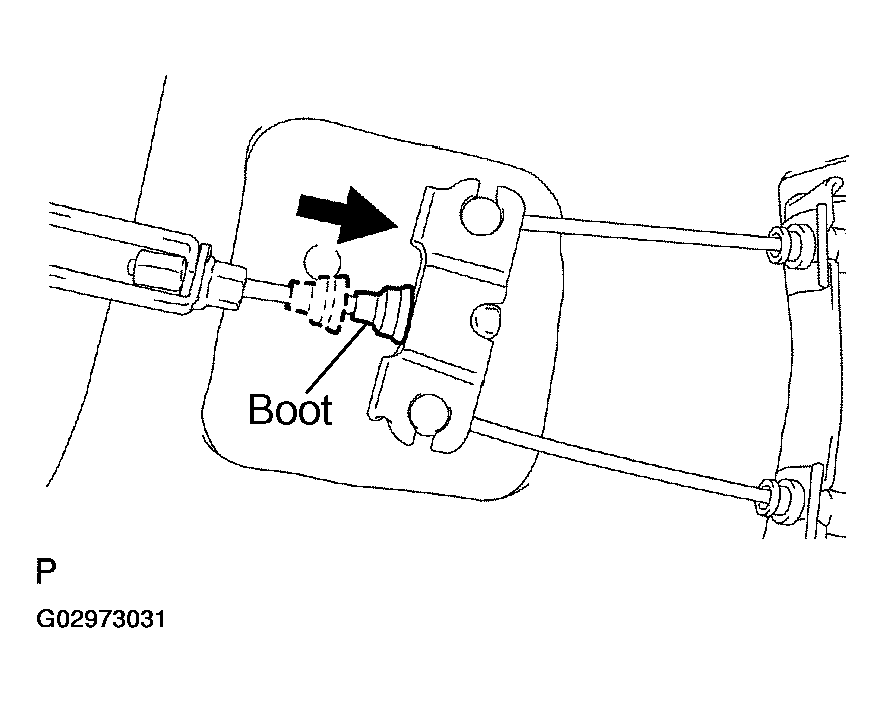

  Fig 2: Sliding Boot
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the parking brake cable assy No.4 from the parking brake equalizer as shown in the illustration.

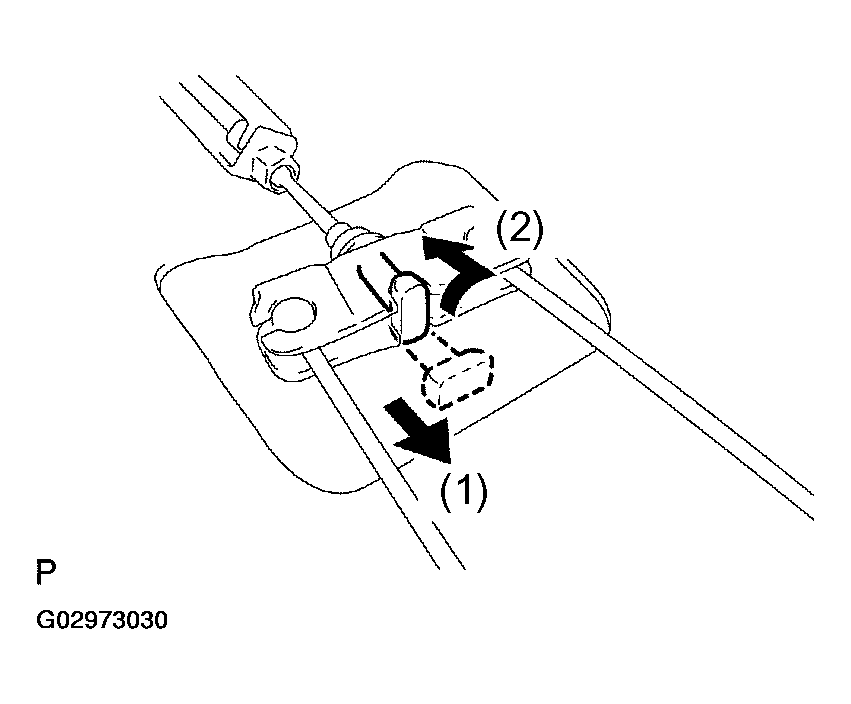

  Fig 3: Removing Parking Brake Cable Assy From Parking Brake Equalizer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE CABLE ASSY NO.4
1. Install the parking brake cable assy No.4 to the parking brake equalizer as shown in the illustration.

  Fig 4: Installing Parking Brake Cable Assy To Parking Brake Equalizer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slide the boot back as shown in the illustration.

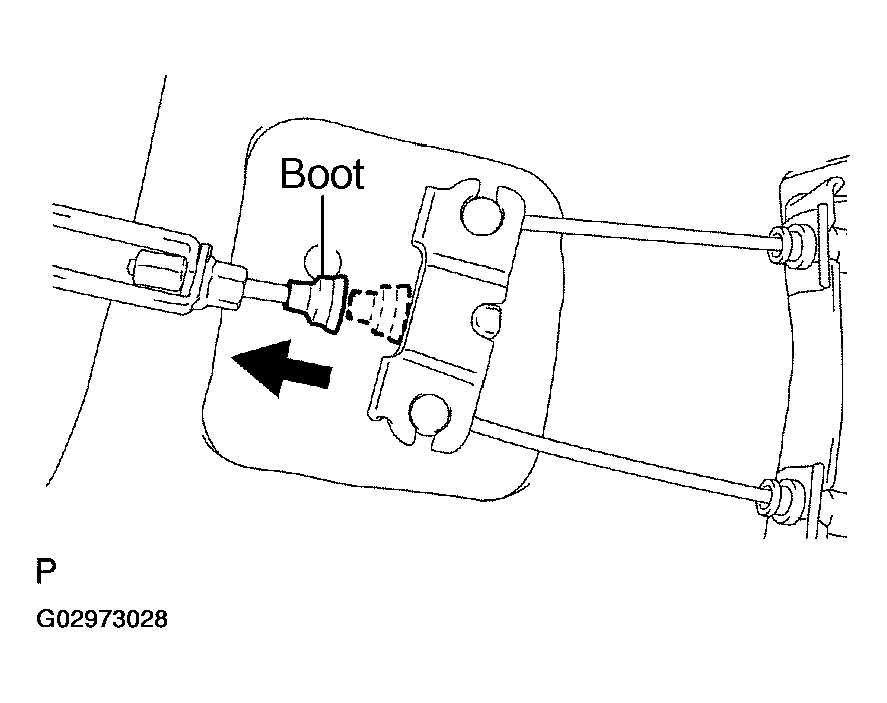

  Fig 5: Sliding Boot Back
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Hold the nut on the parking brake cable assy No.1 using a wrench. Tighten the turnbuckle of the parking brake cable assy No.4 using a wrench.
  Torque: 5.4 N.m (55 kgf.cm, 48 in. lbf)

  Fig 6: Tightening Turnbuckle Of Parking Brake Cable Assy Using Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX ASSY
INSTALL CONSOLE PANEL SUB-ASSY UPPER
INSTALL CONSOLE BOX UPPER
INSTALL POSITION INDICATOR HOUSING ASSY
INSTALL SHIFT LEVER KNOB SUB-ASSY
INSPECT AND ADJUST PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT )
