Parking Brake Cable ASSY No.3: Components

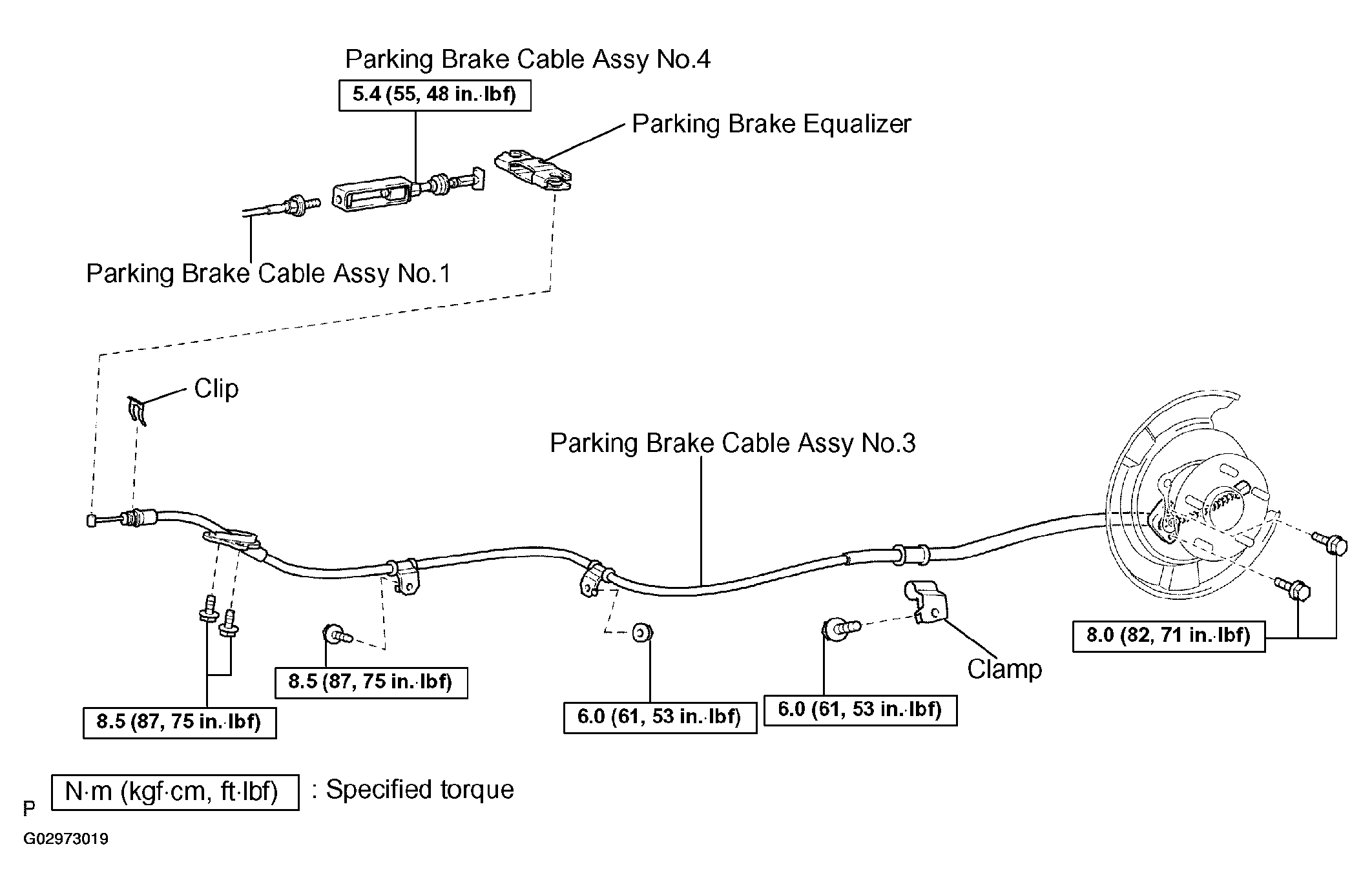

Fig 1: Identifying Parking Brake Cable Assy Components

G02973019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
