Parking Brake Cable ASSY No.1: Components

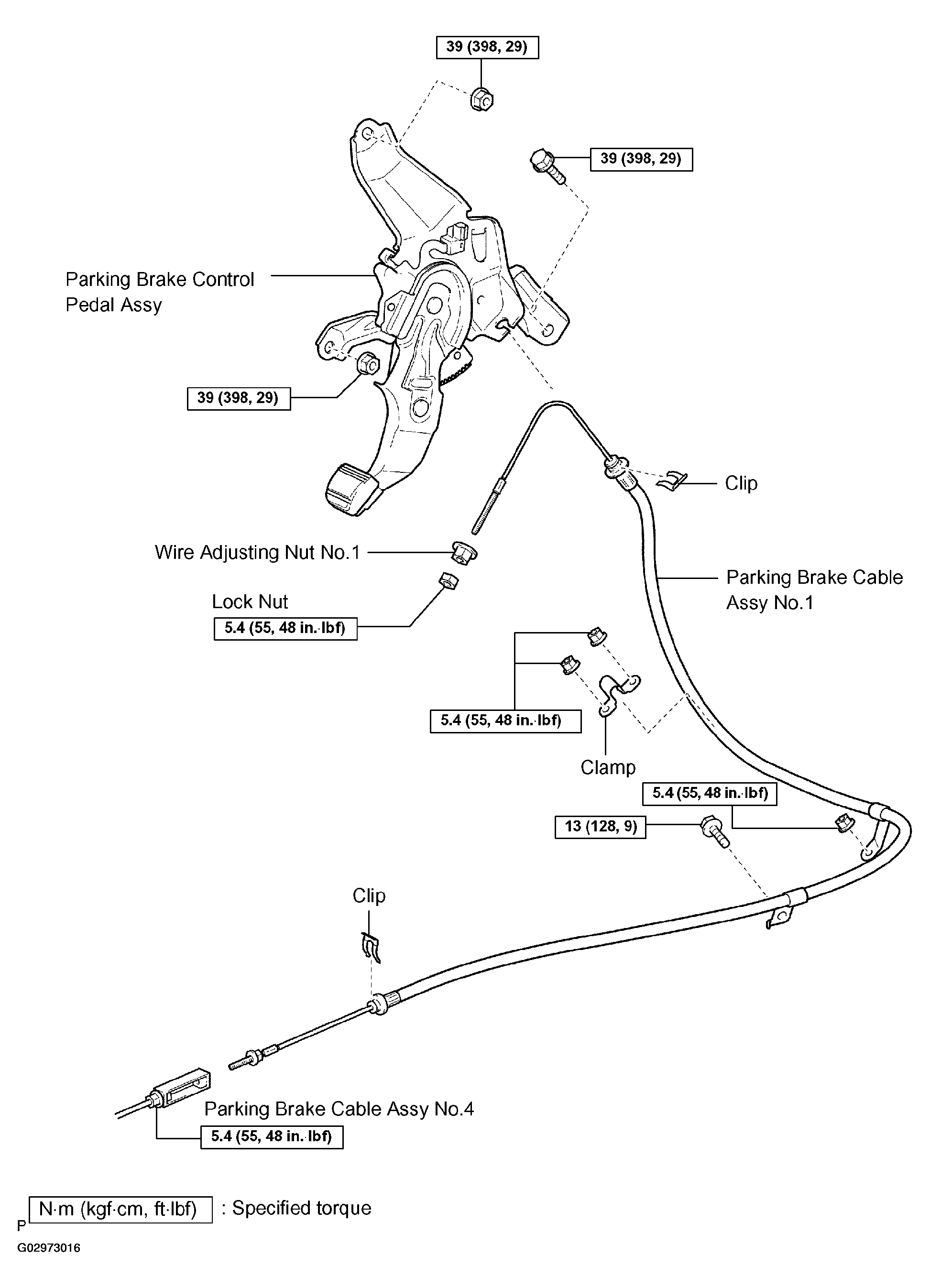

Fig 1: Identifying Parking Brake Cable Assy Components

G02973016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
