Parking Brake ASSY: Components

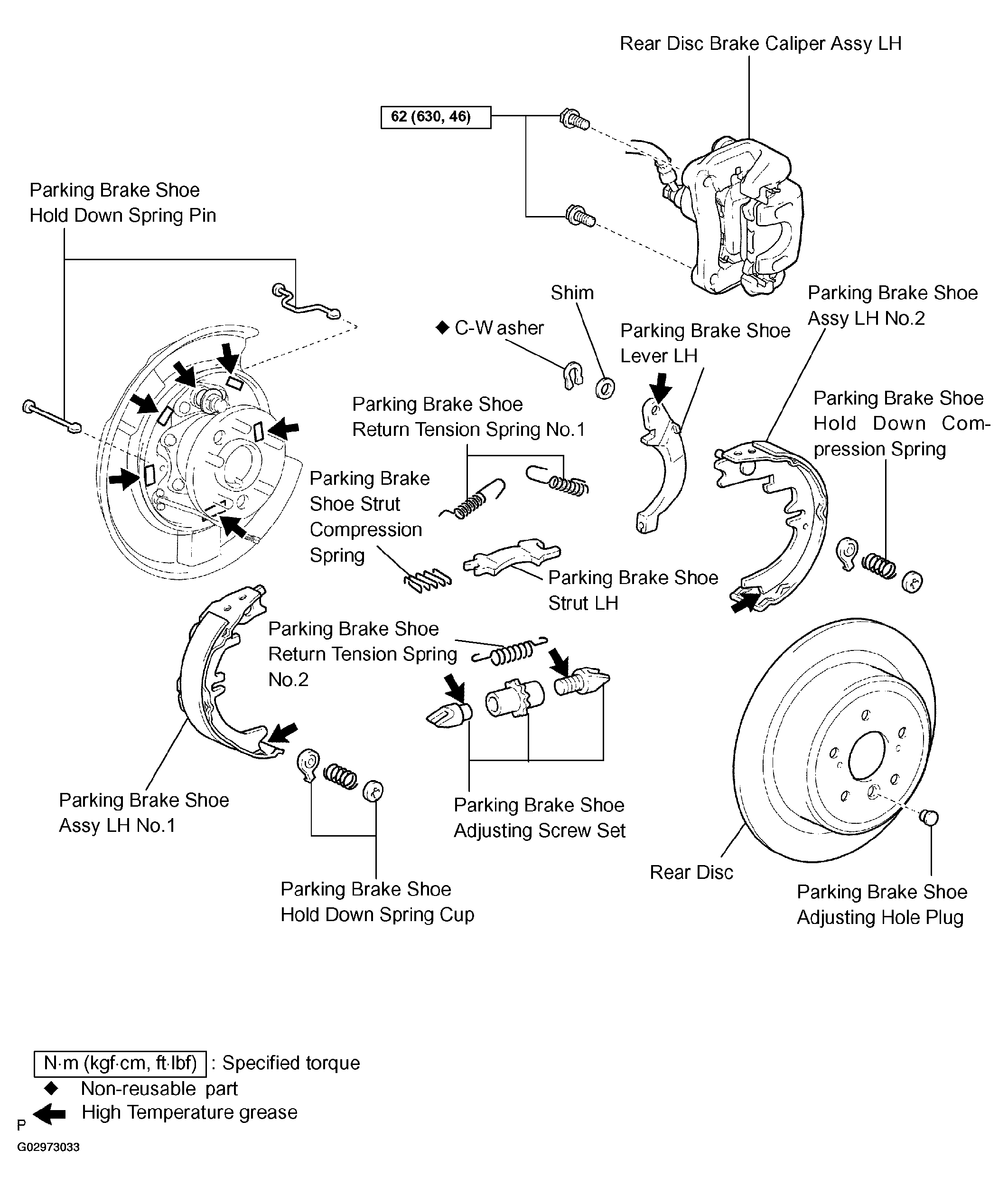

Fig 1: Identifying Parking Brake Assy Components

G02973033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
