Brake Pedal Support ASSY: Components

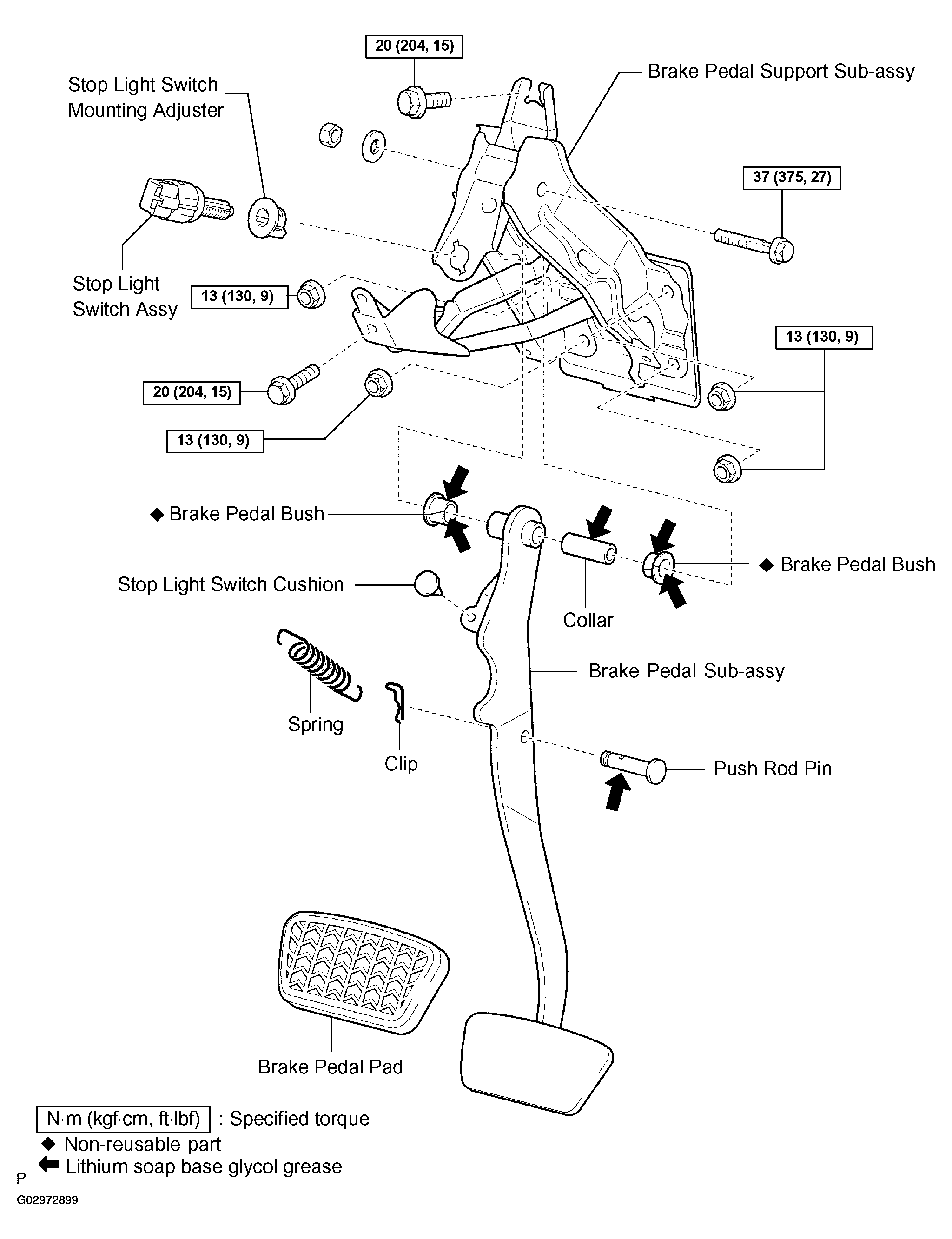

Fig 1: Identifying Break Pedal Components

G02972899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
