Brake Booster ASSY: Components

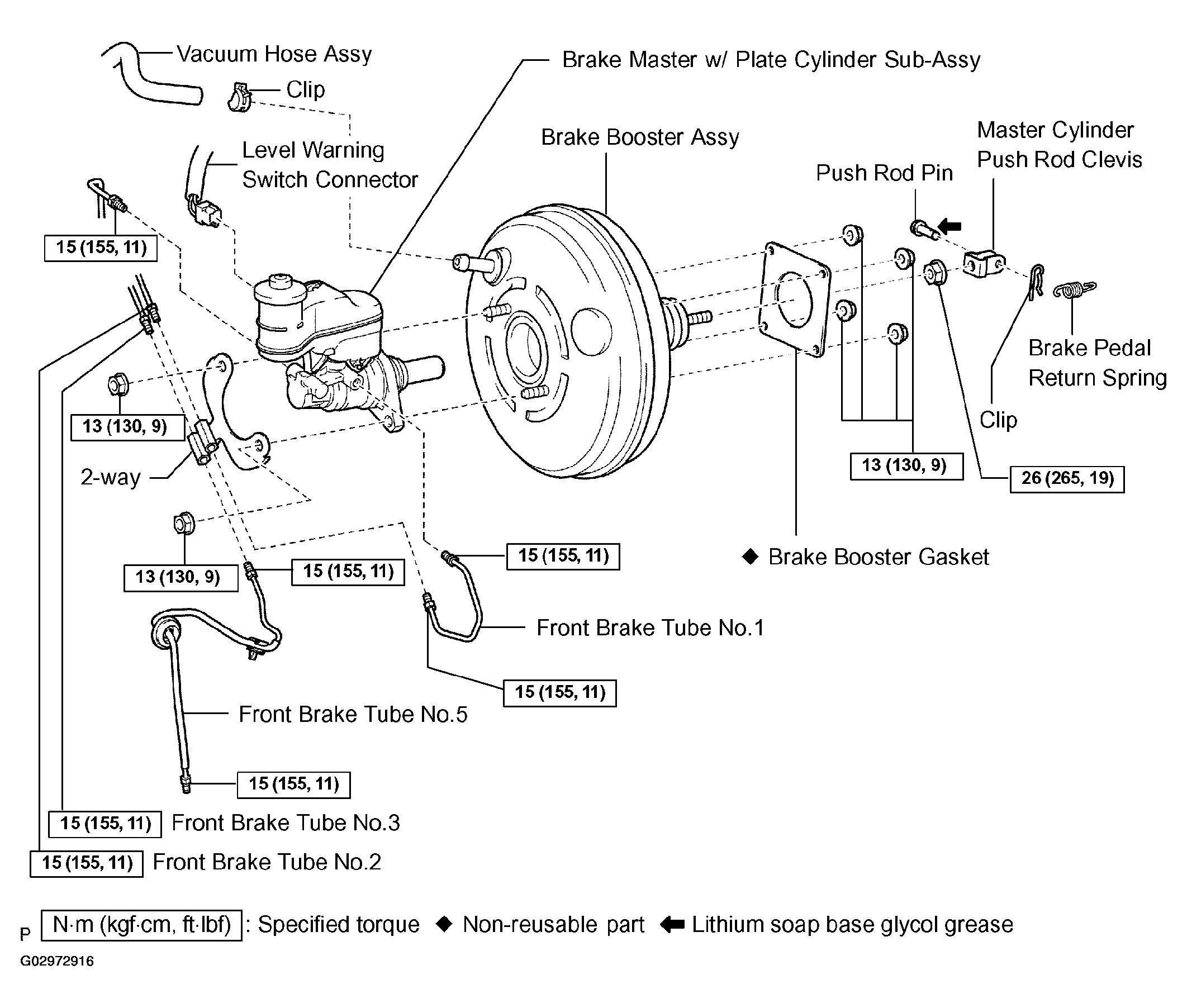

Fig 1: Identifying Break Buster Components

G02972916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
