Using Hand-Held Tester

  1. SPEED SENSOR SIGNAL CHECK (TEST MODE)

    HINT:

    • If the ignition switch is turned from on (IG) to off during test mode (SIGNAL CHECK), the DTCs of the sensor check function will be erased.
    • During test mode (SIGNAL CHECK), the skid control ECU records DTCs, if the abnormal sensor signal is received.
    1. Procedures for test mode:
      1. Turn the ignition switch off.
      2. Move the shift lever to the P position.
      3. Connect the hand-held tester to the DLC3.

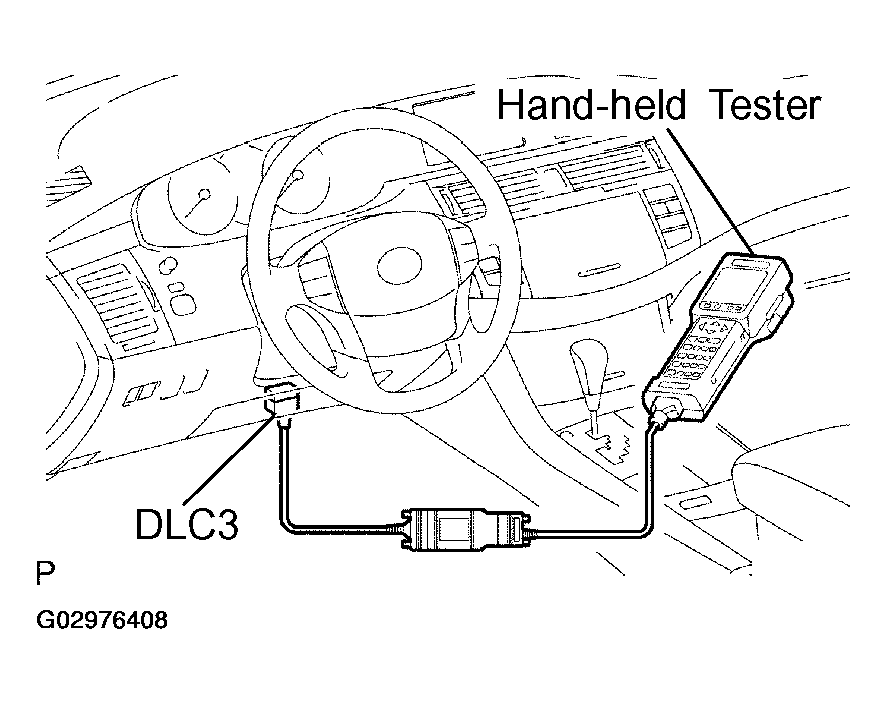

        Fig 1: Connecting Hand-Held Tester To DLC3
        G02976408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Turn the ignition switch on (IG).
      5. Select "SIGNAL CHECK" on the hand-held tester screen.

        HINT:

        Refer to the hand-held tester operator's manual for further details.

        Fig 2: Selecting SIGNAL CHECK" On Hand-Held Tester Screen
        G02976409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Check that the ABS warning light comes on for several seconds and then blinks in test mode.

        HINT:

        If the ABS warning light does not blink, inspect the ABS warning light circuit.

        ABS WARNING LIGHT

        Trouble area See
        ABS warning light circuit (Remains on) ABS WARNING LIGHT CIRCUIT (REMAINS ON)
        ABS warning light (Does not come on) ABS WARNING LIGHT CIRCUIT (DOES NOT COME ON)
      7. Start the engine.
        Fig 3: Identifying Test Mode Blinking Pattern
        G02976410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the speed sensor signal.
      1. Drive the vehicle straight forward.

        Accelerate the vehicle to a speed of 34 mph (55 km/h) or more.

      2. Depress the brake pedal and check that the ABS warning light goes off.

      HINT:

      • The sensor check may not be completed if the vehicle has its wheel spun or its steering wheel turned during this check.
      • The ABS warning light goes off when the sensor signal check has been completed and the brake pedal is depressed.
      • The ABS warning light comes on immediately after a malfunction has been detected during the speed sensor signal check.
      • Stop the vehicle.
      • Read the DTCs by following the tester screen.

    HINT:

    See the list of DTCs shown in step  3.

    USING SST CHECK WIRE

  2. SPEED SENSOR SIGNAL CHECK (TEST MODE)

    HINT:

    • If the ignition switch is turned from on (IG) to off during test mode, the DTCs of the sensor signal check function will be erased.
    • During test mode (SIGNAL CHECK), the skid control ECU records DTCs, if the abnormal sensor is received.
    1. Procedures for test mode:
      1. Turn the ignition switch off.
      2. Move the shift lever to the P position.
      3. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

        Fig 4: Connecting Terminals TS And CG Of DLC3
        G02976411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Turn the ignition switch on (IG).
      5. Check that the ABS warning light comes on for several seconds and then blinks in test mode.

        HINT:

        If the ABS warning light does not blink, inspect the ABS warning light circuit and TS terminal circuit.

        ABS WARNING LIGHT CIRCUIT

        Trouble area See
        ABS warning light circuit (Remains on) ABS WARNING LIGHT CIRCUIT (REMAINS ON)
        ABS warning light circuit (Does not come on) ABS WARNING LIGHT CIRCUIT (DOES NOT COME ON)
        TS and CG terminal circuit TS AND CG TERMINAL CIRCUIT
        Fig 5: Identifying Test Mode Blinking Pattern
        G02976412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Start the engine.
    2. Check the speed sensor signal:
      1. Drive the vehicle straight forward.

        Accelerate the vehicle to a speed of 34 mph (55 km/h) or more.

      2. Depress the brake pedal and check that the ABS warning light goes off.

        HINT:

        • The sensor check may not be completed if the vehicle has its wheels spun or its steering wheel turned during this check.
        • The ABS warning light goes off when the sensor signal check has been completed and the brake pedal is depressed.
        • The ABS warning light comes on immediately after a malfunction has been detected during the speed sensor signal check.
      3. Stop the vehicle.
      4. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

        Fig 6: Connecting Terminals TC And CG Of DLC3
        G02976413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Read the number of blinks of the ABS warning light.

        HINT:

        • See the list of DTCs shown in step 3.
        • If every sensor is normal, a normal code will be output (A cycle of 0.25 second ON and 0.25 second OFF is repeated).
        • If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed first.

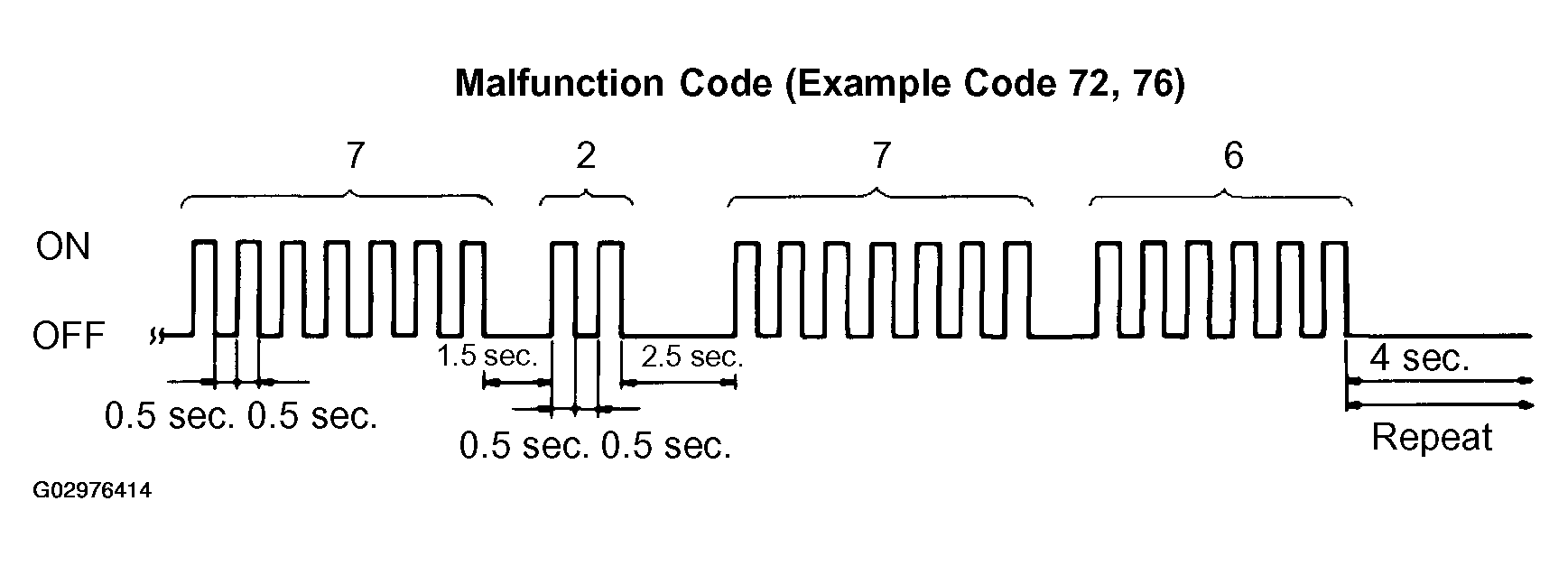

          Fig 7: Example COf Malfunctin Code 72, 76
          G02976414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. After performing the check, turn the ignition switch off, and remove the SST from the DLC3.

        SST 09843-18040

      7. Turn the ignition switch on (IG).

      HINT:

      If the ignition switch is not turned to the ON position after the SST is removed from the DLC3, the previous TEST MODE will continue.

  3. DTC OF SIGNAL CHECK FUNCTION (test mode):

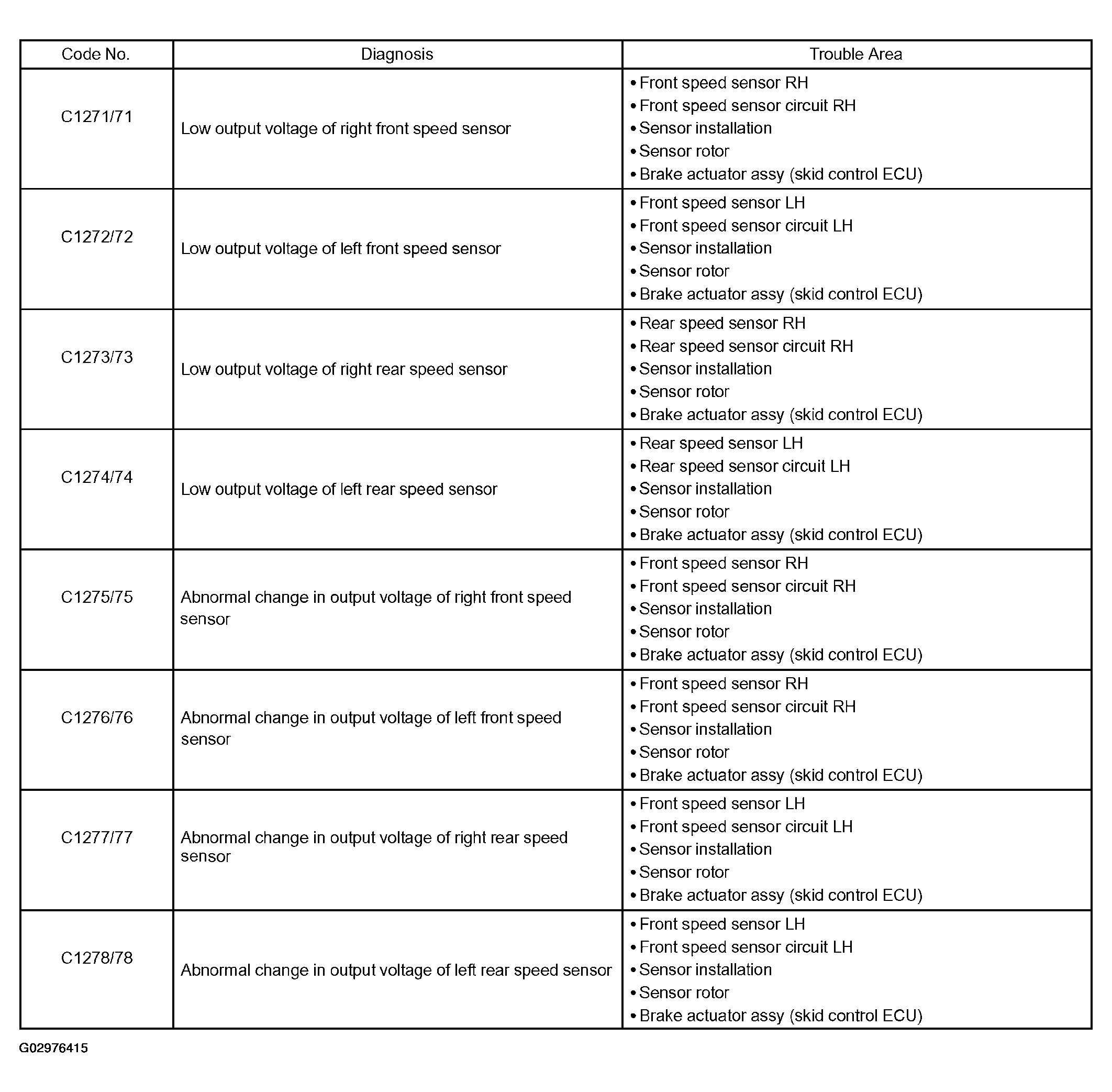

    Fig 8: Signal Check Function DTC (Test Mode) Chart
    G02976415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The codes in this table are output only in signal check function (test mode).
