TS And Cg Terminal Circuit: Wiring Diagram

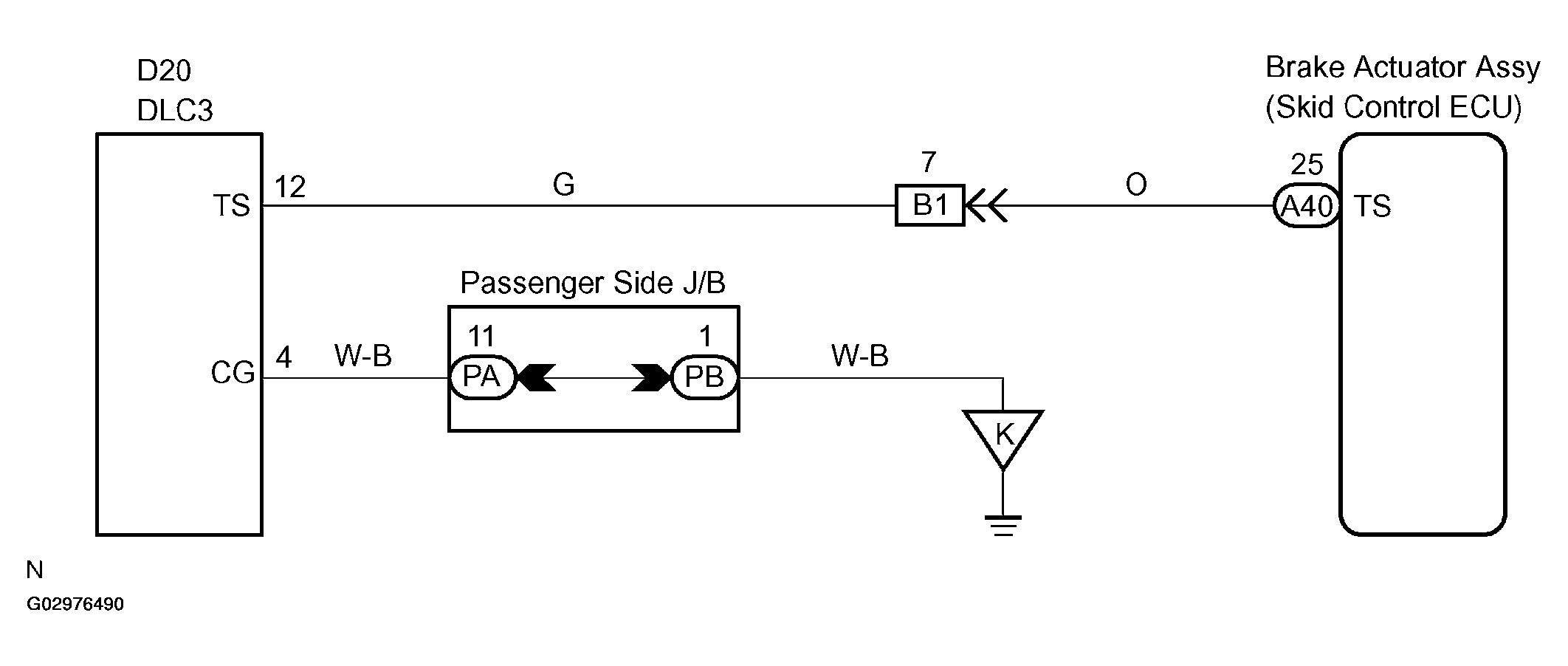

Fig 1: TS And CG Terminal Circuit - Wiring Diagram

G02976490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
