Brakes - Abs With EBD (Diagnostics): Location

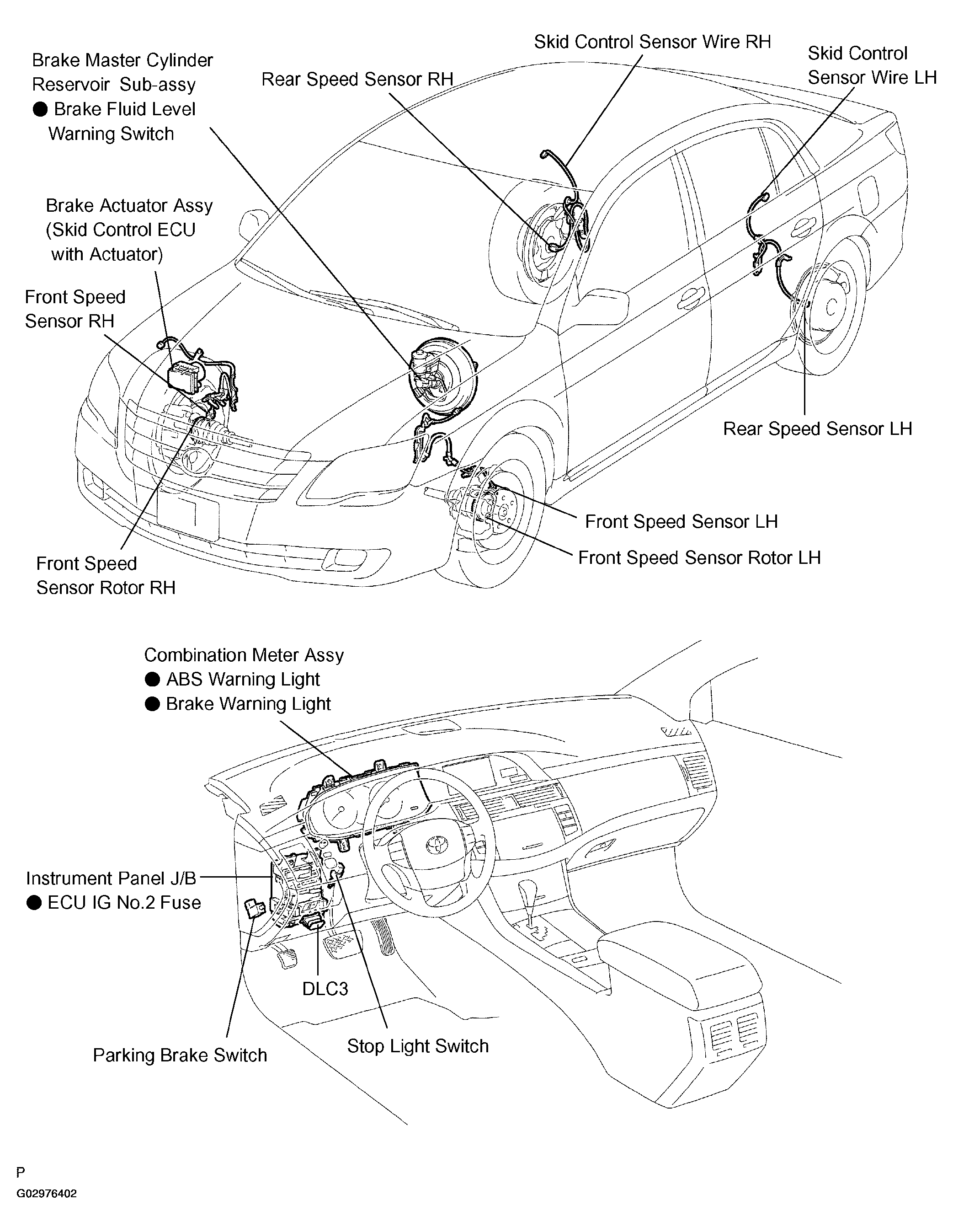

Fig 1: Locating ABS With EBD System

G02976402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
