Data List/Active Test

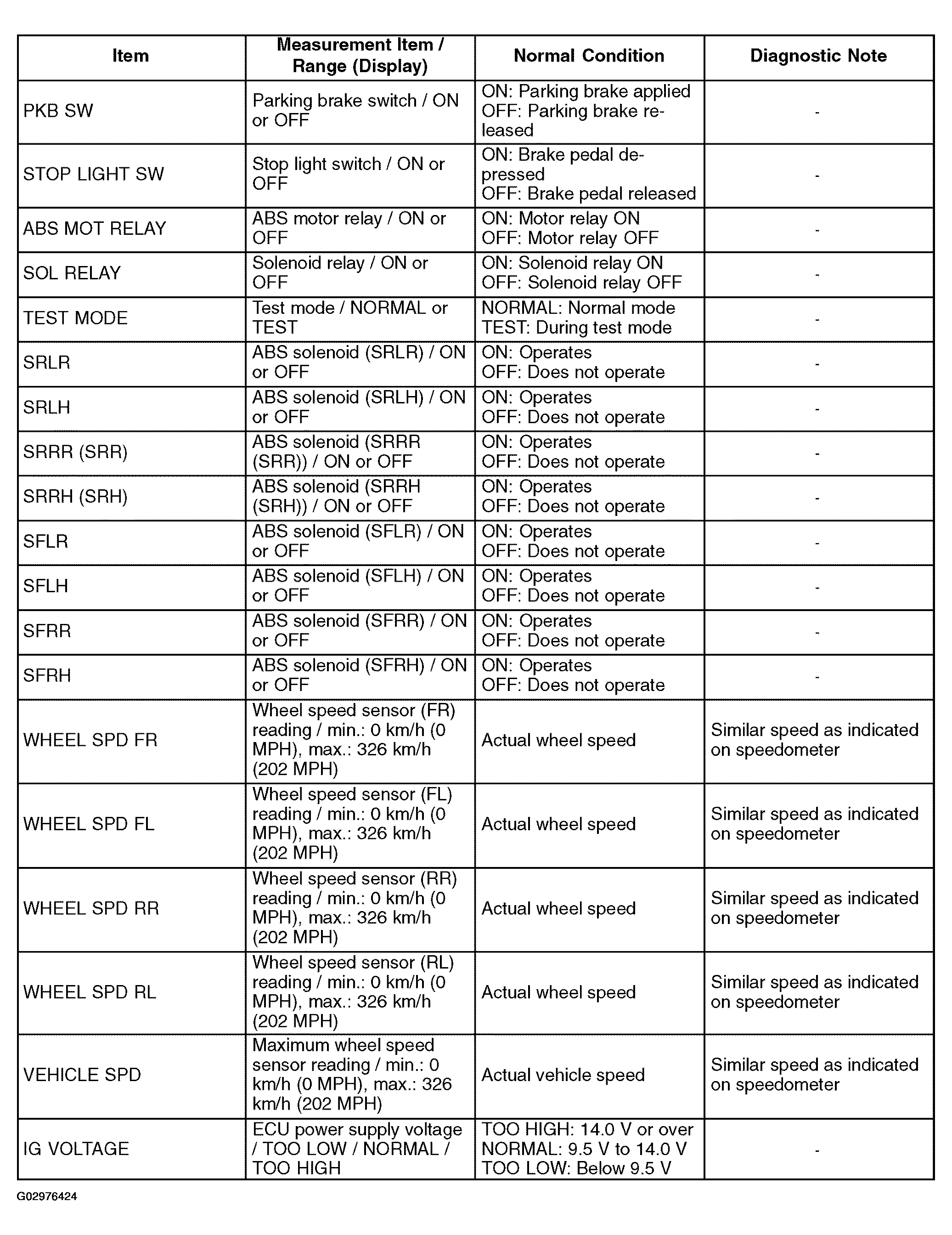

- DATA LIST
HINT:
According to the DATA LIST displayed on the hand-held tester, the value and status of the switch, sensor, actuator and so on can be read without part removal. Reading the DATA LIST as the first step of troubleshooting is one of the methods to shorten labor time.
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch on (IG).
- Read the "DATA LIST" on the tester display.
- ACTIVE TEST
HINT:
Performing the ACTIVE TEST using the hand-held tester allows the relay, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one of the methods to shorten labor time.
It is possible to display the DATA LIST during the ACTIVE TEST.
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch on (IG).
- According to the display on the tester, perform the "ACTIVE TEST".
ACTIVE TEST (1 OF 2)Item Vehicle Condition / Test Details Diagnostic Note ABS MOT RELAY Turns ABS motor relay ON / OFF Operating sound of motor is heard BRAKE WRN LIGHT Turns Brake warning light ON / OFF Observe combination meter ABS WRN LIGHT Turns ABS warning light ON / OFF Observe combination meter SRLR Turns ABS solenoid (SRLR) ON / OFF Operating sound of solenoid (clicking sound) is heard SRLH Turns ABS solenoid (SRLH) ON / OFF Operating sound of solenoid (clicking sound) is heard SRRR Turns ABS solenoid (SRRR) ON / OFF Operating sound of solenoid (clicking sound) is heard SRRH Turns ABS solenoid (SRRH) ON / OFF Operating sound of solenoid (clicking sound) is heard SFLR Turns ABS solenoid (SFLR) ON / OFF Operating sound of solenoid (clicking sound) is heard SFLH Turns ABS solenoid (SFLH) ON / OFF Operating sound of solenoid (clicking sound) is heard SFRR Turns ABS solenoid (SFRR) ON / OFF Operating sound of solenoid (clicking sound) is heard SFRH Turns ABS solenoid (SFRH) ON / OFF Operating sound of solenoid (clicking sound) is heard SFRR & SFRH Turns ABS solenoid (SFRR & SFRH) ON / OFF Operating sound of solenoid (clicking sound) is heard SFLR & SFLH Turns ABS solenoid (SFLR & SFLH) ON / OFF Operating sound of solenoid (clicking sound) is heard ACTIVE TEST (2 OF 2)Item Diagnostic Note Vehicle Condition / Test Details SRH & SRR Turns ABS solenoid (SRRR & SRRH) ON / OFF Operating sound of solenoid (clicking sound) is heard SRLR & SRLH Turns ABS solenoid (SRLR & SRLH) ON / OFF Operating sound of solenoid (clicking sound) is heard SFRH & SFLH Turns ABS solenoid (SFRH & SFLH) ON / OFF Operating sound of solenoid (clicking sound) is heard
