DTC C1249/58: Stop Light Switch Circuit: Wiring Diagram

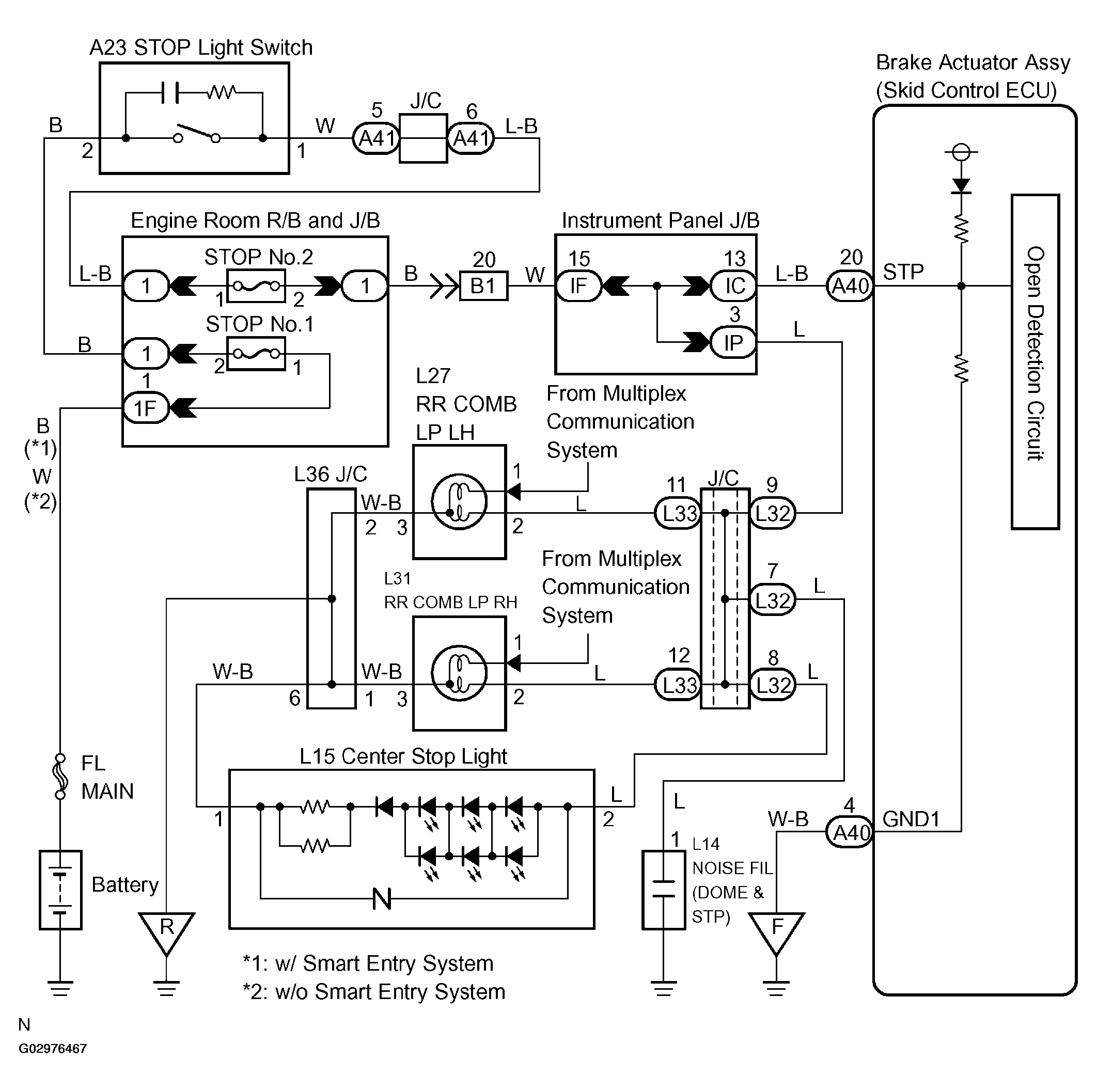

Fig 1: Stop Light Switch Circuit - Wiring Diagram

G02976467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
