DTC C0278/11: Open Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

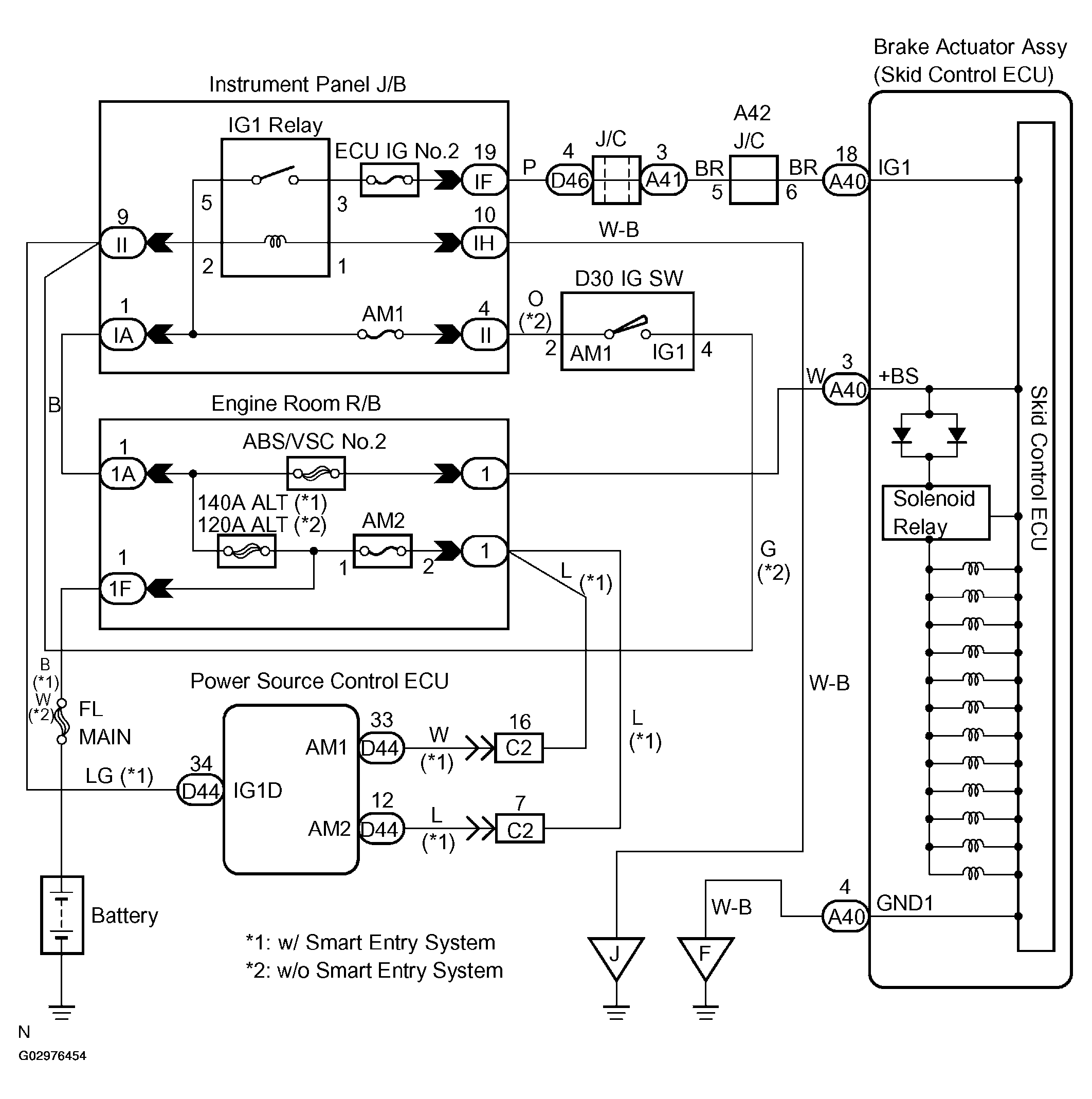

Fig 1: Open Circuit In ABS Solenoid Relay Circuit - Wiring Diagram

G02976454

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
