Circuit Description

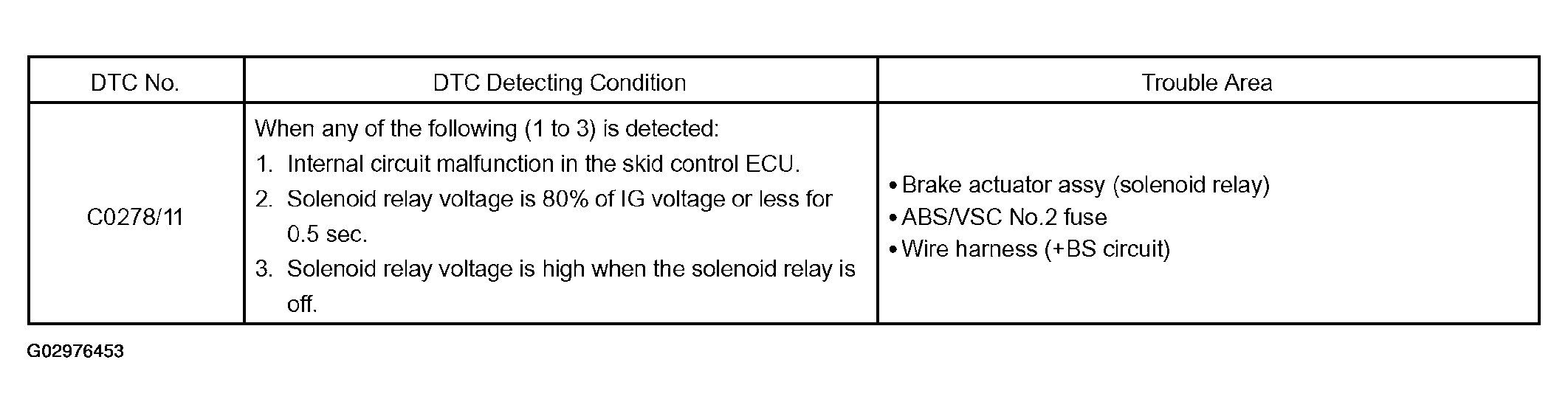

This solenoid relay supplies power to each ABS solenoid. If the ABS initial check is OK after the ignition switch is turned on (IG), the skid control ECU will turn the ABS solenoid relay on.
HINT: (Initial Check)
If a speed signal of 4 mph (6 km/h) or more is input to the skid control ECU, with the ignition switch on and the stop light switch off, the ECU performs self diagnosis of the motor and solenoid circuits.
