Home >> Toyota >> 2005 >> Avalon XLS >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Brakes - Abs With EBD (Diagnostics) >> DTC C0273/13: Open Circuit In Abs Motor Relay Circuit >> Circuit Description

Circuit Description

The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU turns the motor relay on and operates the ABS pump motor.

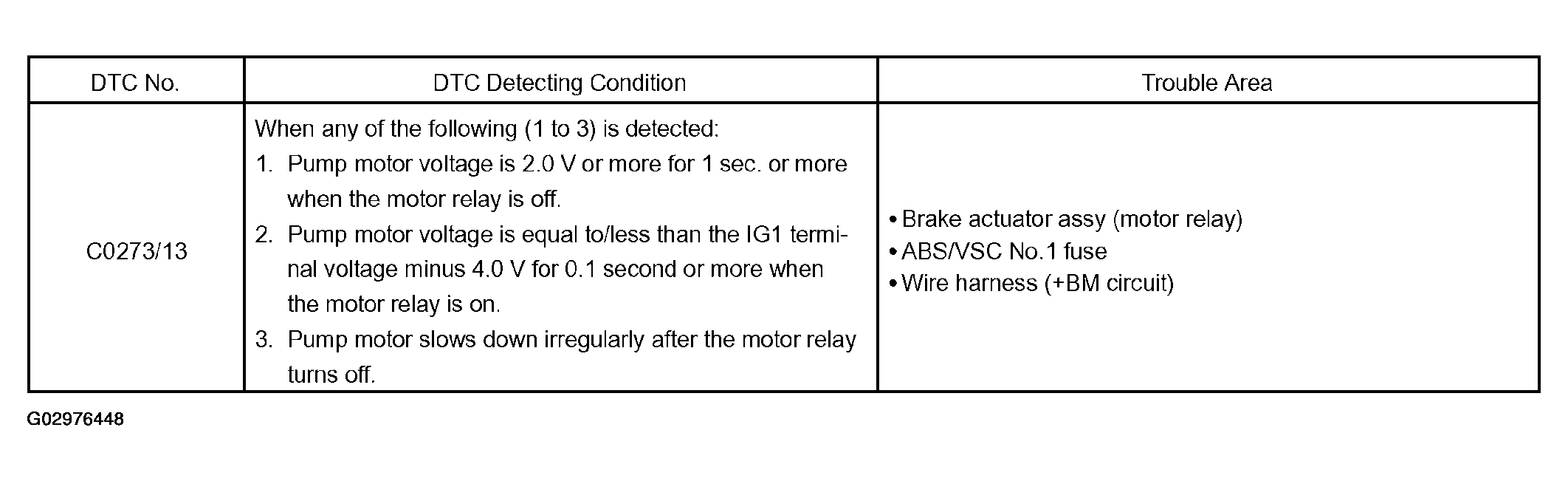

Fig 1: DTC Chart
G02976448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
