Brake Warning Light Circuit (Remains On): Wiring Diagram

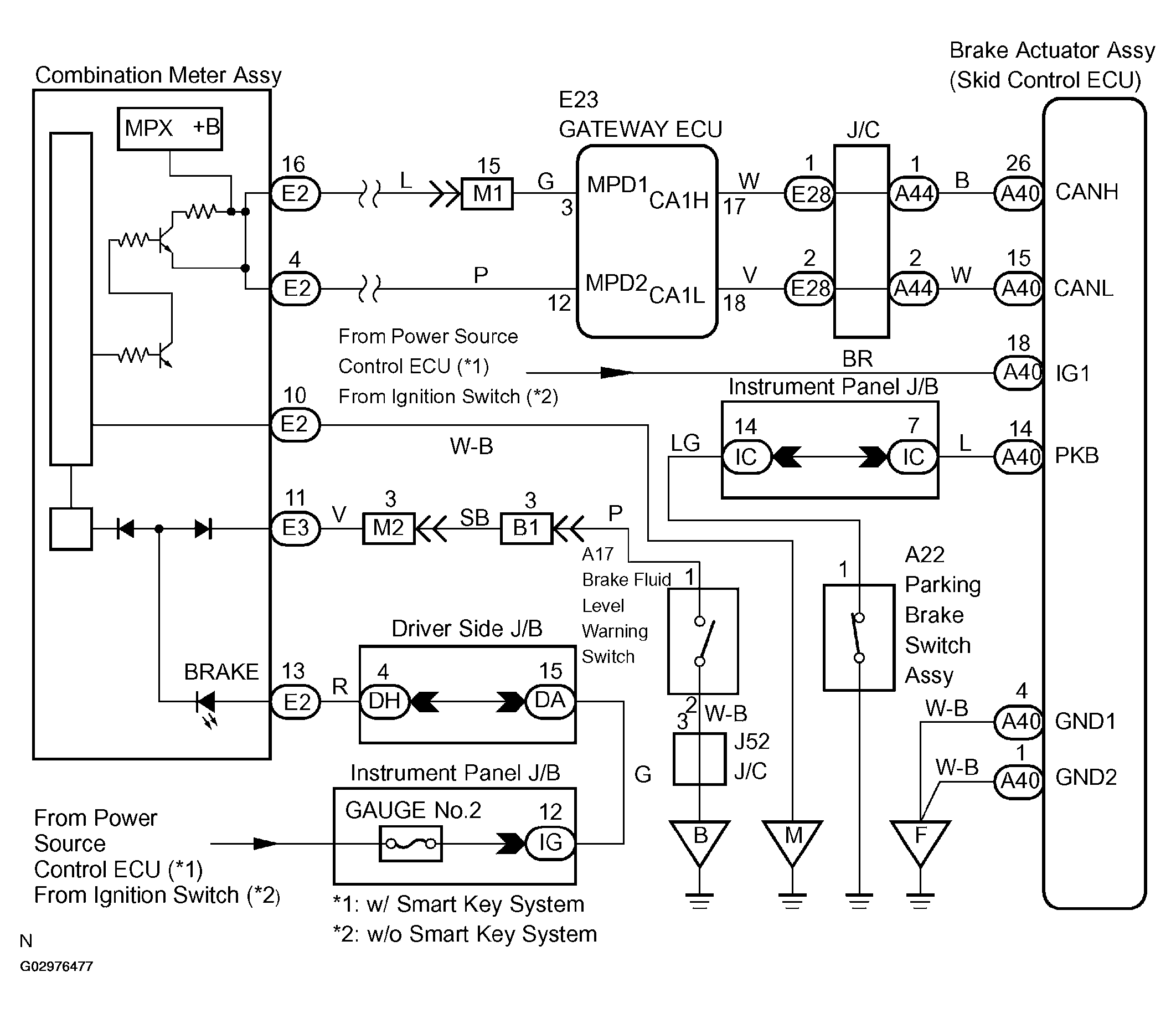

Fig 1: Brake Warning Light Circuit (Remains On) - Wiring Diagram

G02976477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
