Abs Warning Light Circuit (Remains On): Wiring Diagram

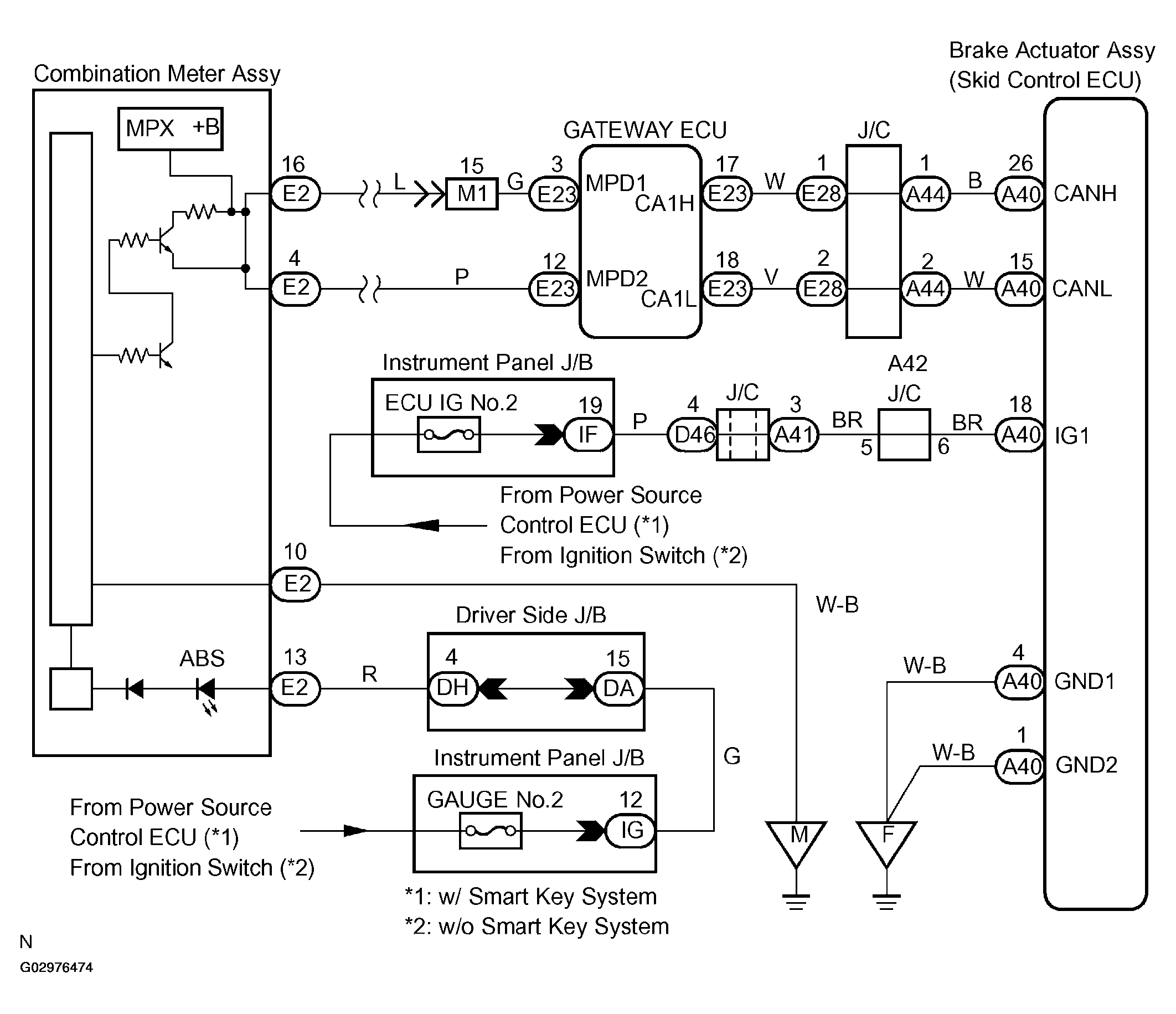

Fig 1: ABS Warning Light Circuit (Remains On) - Wiring Diagram

G02976474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
