Heater Control Assembly: Removal

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CENTER CLUSTER INTEGRATION PANEL
    1. Remove the 3 heater control knobs.
    2. Remove the 5 screws.
    3. Remove the integration control panel by pulling the portions indicated by arrows in the illustration.
    4. Disconnect the connector.

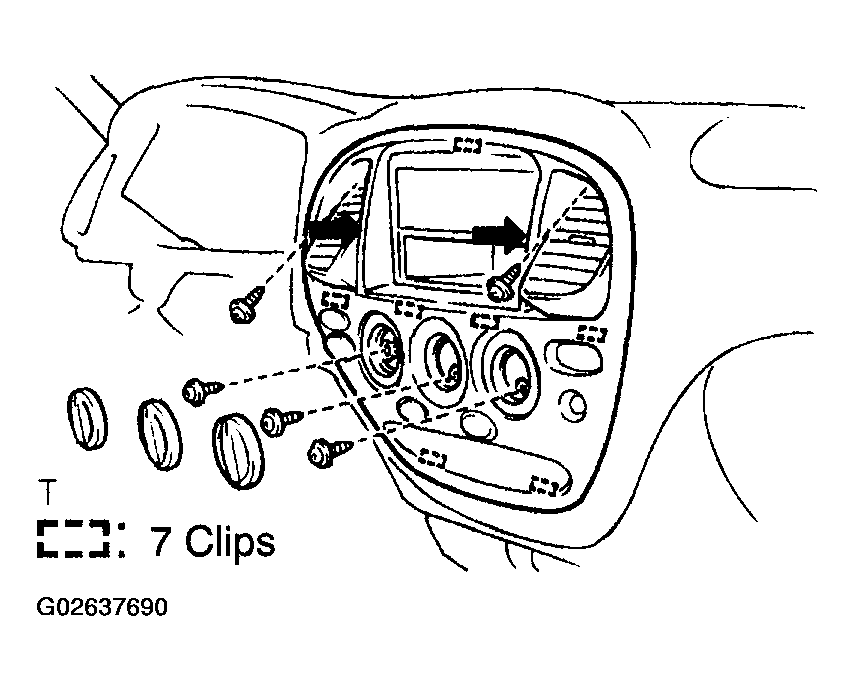

    Fig 1: Removing Screws
    G02637690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LOWER LH FINISH PANEL
  3. REMOVE HEATER TO REGISTER DUCT NO. 2
  4. REMOVE GLOVE COMPARTMENT DOOR
  5. REMOVE LOWER NO. 2 FINISH PANEL
  6. REMOVE HEATER TO REGISTER DUCT NO. 4 (See  REMOVAL  )
  7. DISCONNECT HEATER CONTROL CABLES

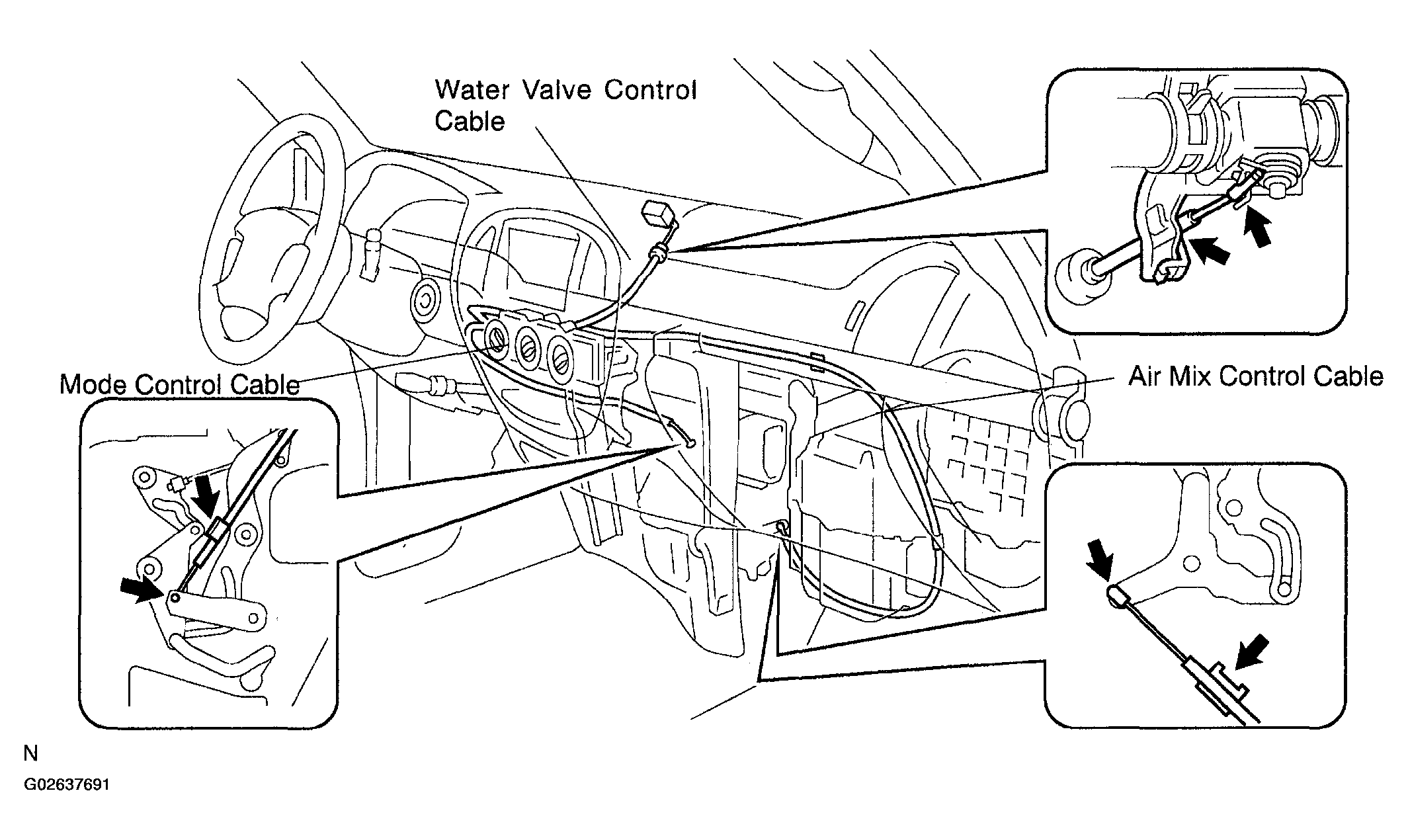

    Fig 2: Disconnecting Heater Control Cables
    G02637691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE HEATER CONTROL ASSEMBLY

    Remove the heater control assembly, then disconnect the connectors.

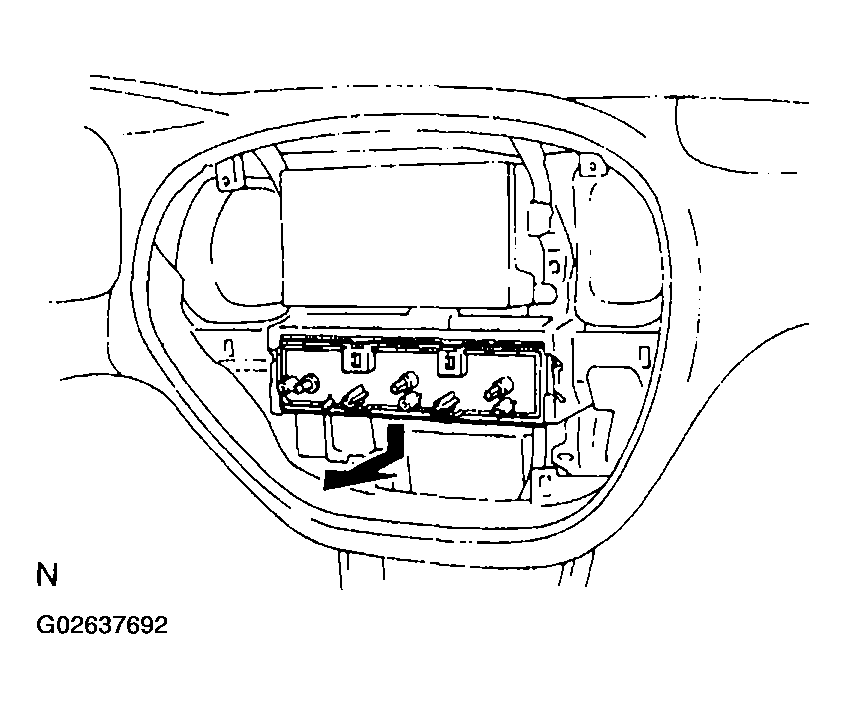

    Fig 3: Removing Heater Control Assembly
    G02637692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
