System Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

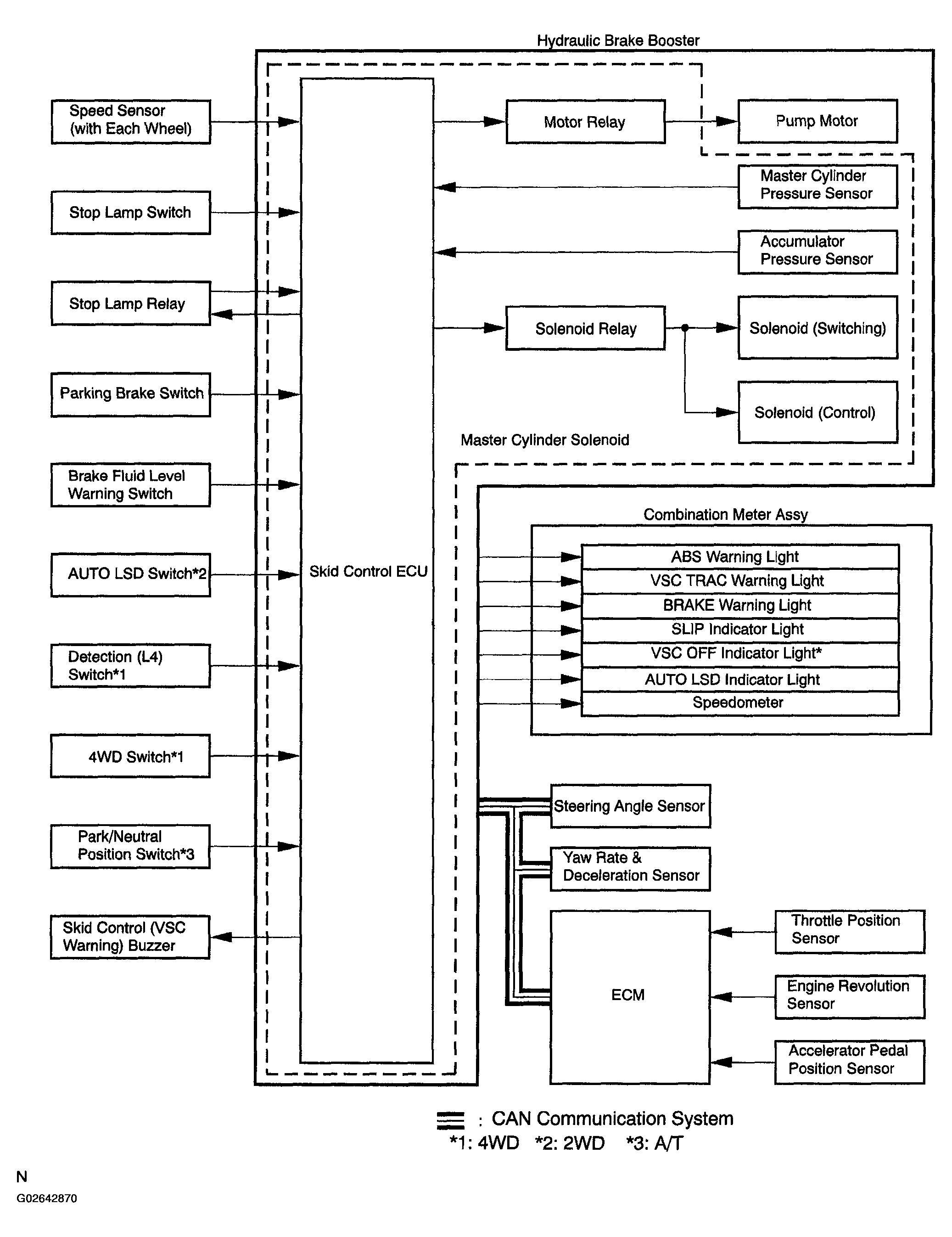

Fig 1: ABS With EBD & BA & TRAC & VSC System Diagram
G02642870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SIGNALS REFERENCE

Transmitting ECU (Transmitter) Receiving ECU Signals Communication Method
ECM Skid control ECU Throttle position signal CAN communication system
ECM Skid control ECU Engine revolution signal CAN communication system
ECM Skid control ECU Accelerator pedal position signal CAN communication system
ECM Skid control ECU Intake temperature sensor signal CAN communication system
Skid control ECU ECM Yaw rate and deceleration signal CAN communication system
Skid control ECU ECM Steering angle signal CAN communication system
Skid control ECU ECM Throttle opening angle request signal CAN communication system
