How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Troubleshoot in accordance with the following procedures:

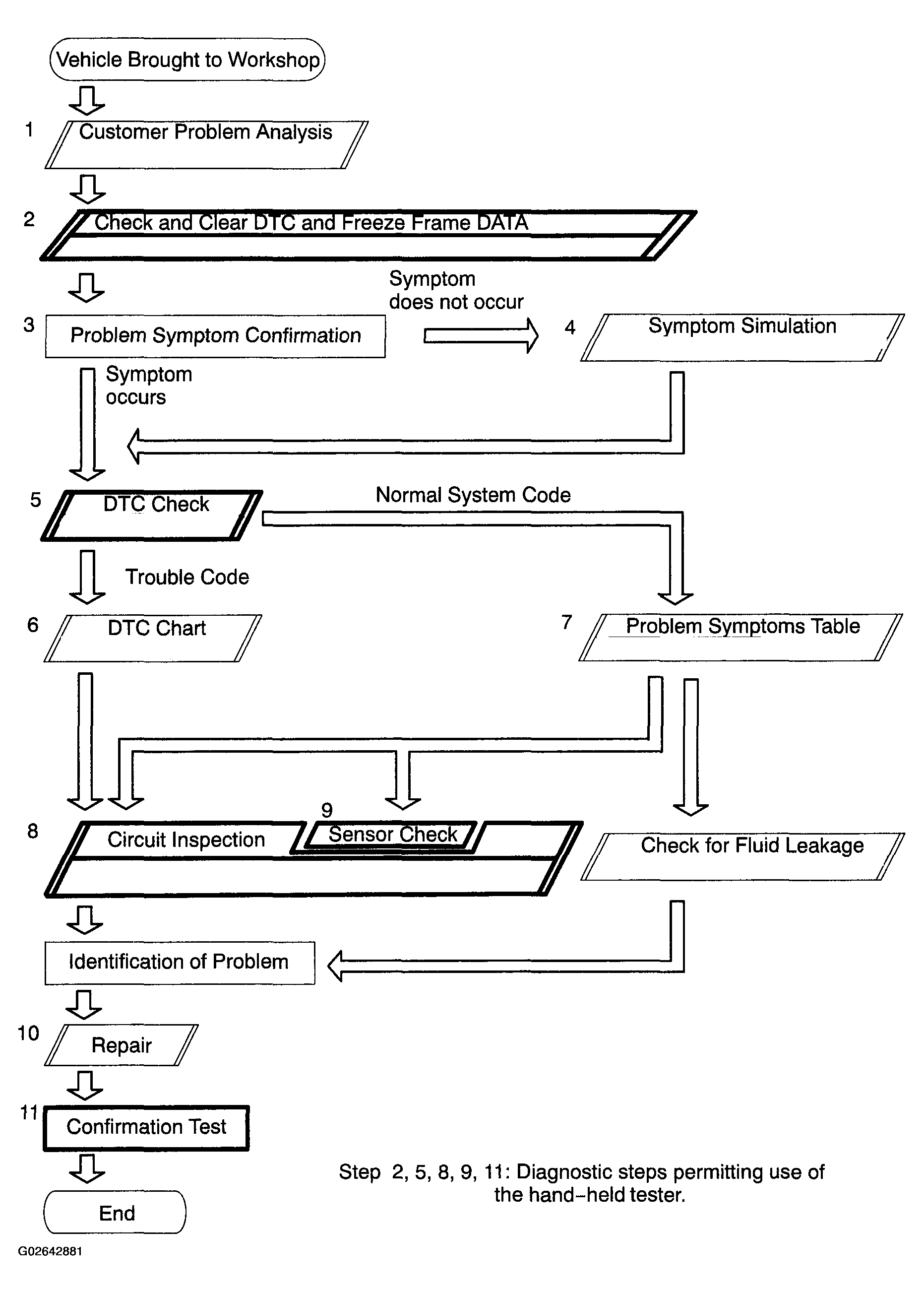

Fig 1: Troubleshooting Flow Chart
G02642881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
