VSC OFF Indicator Light Circuit (Remains ON): Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

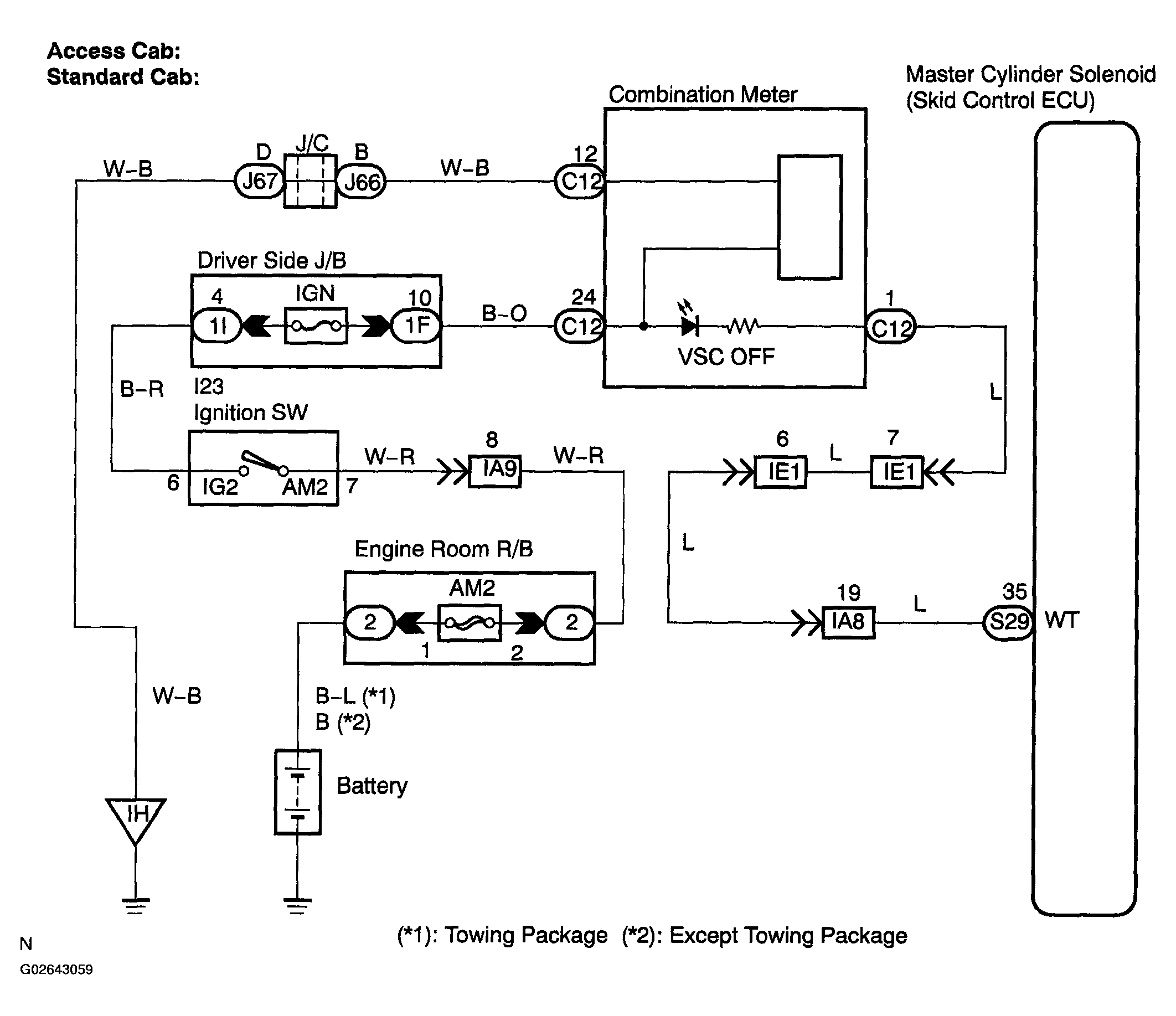

Fig 1: VSC OFF Indicator Light Circuit (Remains ON) Wiring Diagram (Access, Standard Cab)
G02643059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

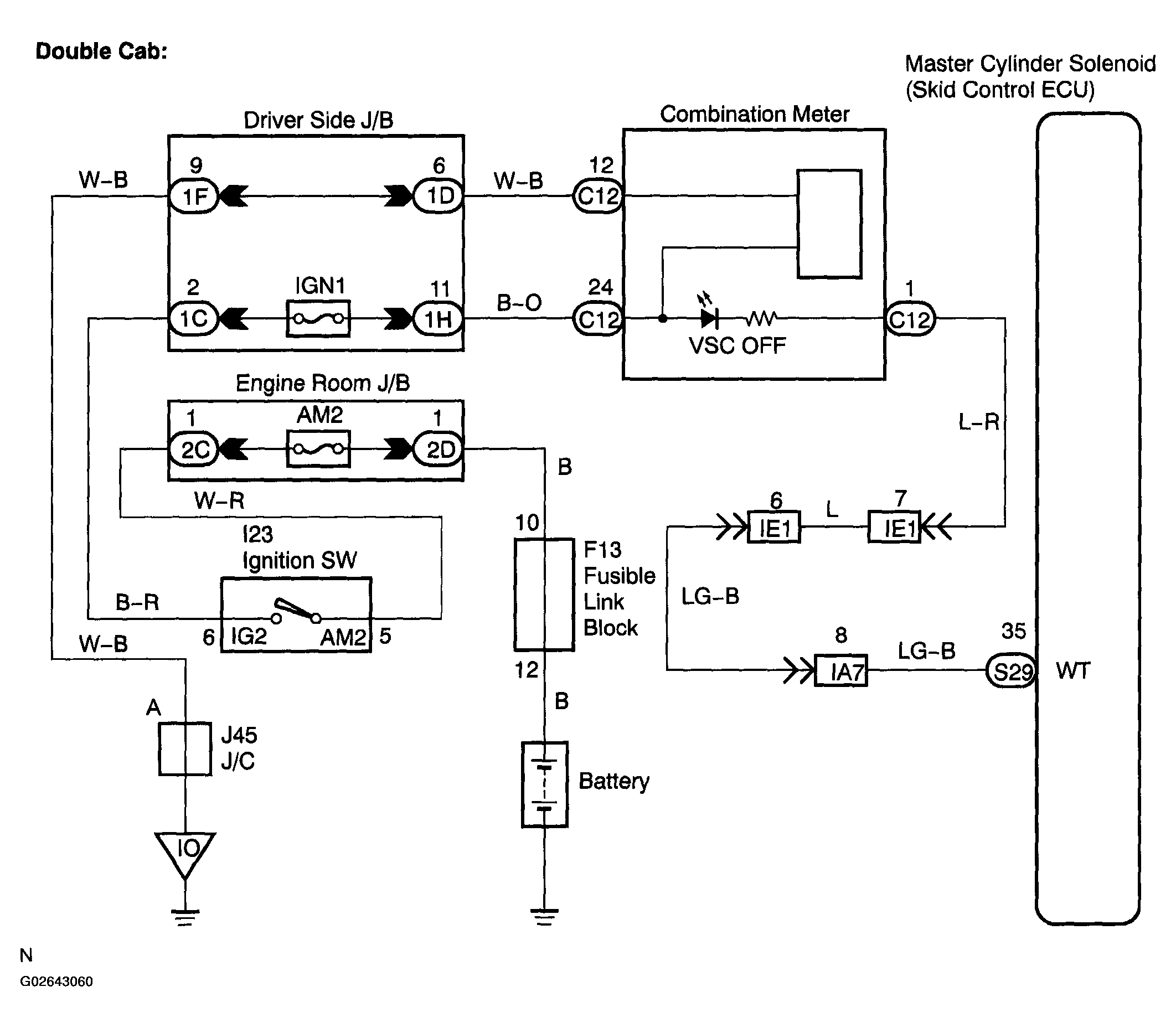

Fig 2: VSC OFF Indicator Light Circuit (Remains ON) Wiring Diagram (Double Cab)
G02643060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
