Circuit Description

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

The accumulator pressure sensor is connected to the skid control ECU in the hydraulic brake booster and detects fluid pressure of the accumulator.

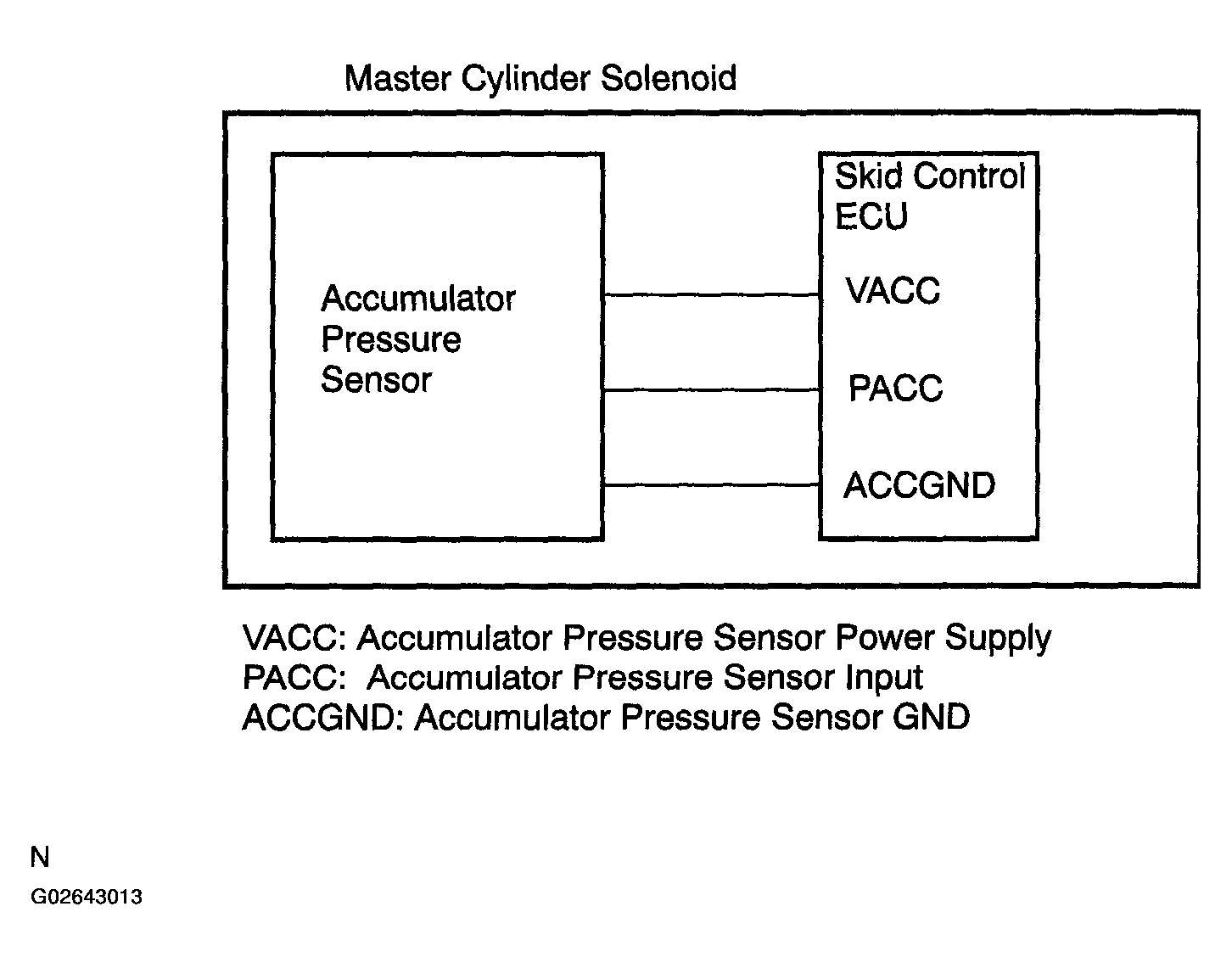

Fig 1: Pressure Sensor Connection Diagram
G02643013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

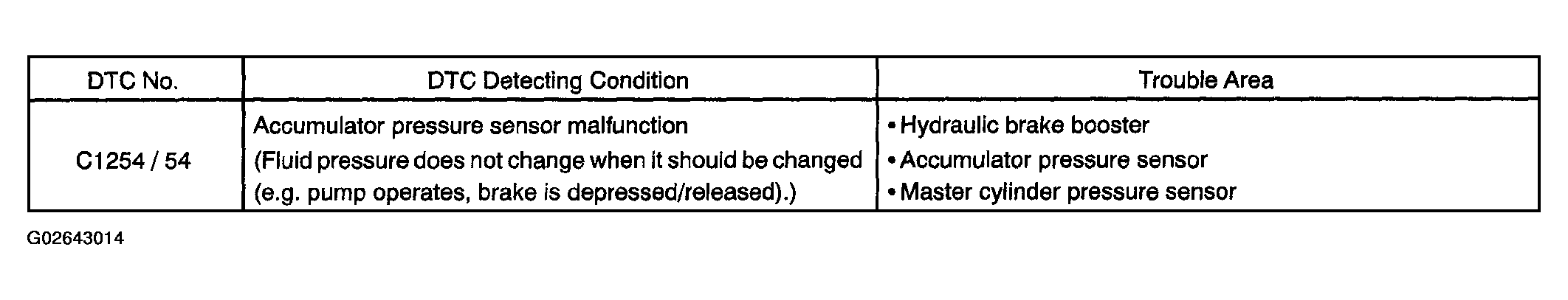

Fig 2: DTC - C1254/54 Trouble Detection Chart
G02643014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
