Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the master cylinder solenoid, perform zero point CALIBRATION  .
  1. Check stop light switch operation.

    CHECK:

    Check that the stop light comes on when the brake pedal is depressed and goes off when the brake pedal is released.

    OK:

    Stop light function is normal.

    HINT:

    Check the stop light bulb as it may have burnt out.

    1. NG: Go to step   4 .
    2. OK: Go to next step.
  2. Measure voltage of the master cylinder solenoid (skid control ECU STP terminal).

    PREPARATION:

    Disconnect the skid control ECU connector S29.

    CHECK:

    Measure the voltage according to the value(s) in the table below.

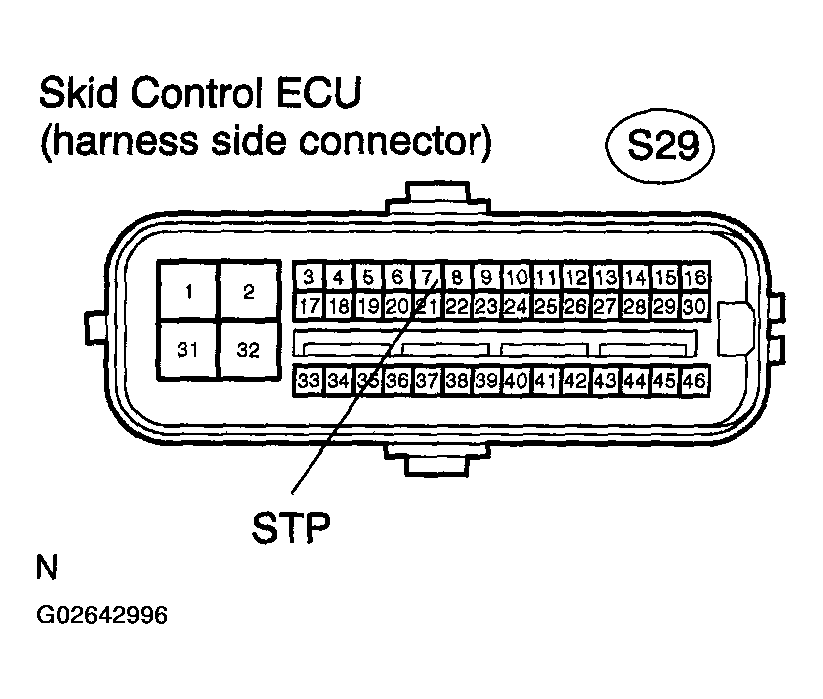

    Fig 1: Identifying Terminal STP Of Skid Control ECU Connector S29
    G02642996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    SKID CONTROL ECU CONNECTOR S29 VOLTAGE SPECIFICATIONS

    Tester Connection Switch Condition Specified Condition
    S29-7 (STP) - Body ground Brake pedal depressed 8 to 14V
    S29-7 (STP) - Body ground Brake pedal released Below 1.5V
    1. NG: Repair or replace STP circuit.
    2. OK: Go to next step.
  3. Reconfirm DTC (See  DTC CHECK / CLEAR   ).

    PREPARATION:

    Clear the DTCs.

    CHECK:

    Check if the same DTCs are detected.

    RESULT:

    DTC OUTPUT RESULT

    DTC is output A
    DTC is not output B
    1. B: END.
    2. A: Replace master cylinder solenoid (See  DISASSEMBLY  ).
  4. Inspect stop light switch (Stop light power source terminal voltage).

    PREPARATION:

    Disconnect the stop light switch connector S4.

    CHECK:

    Measure the voltage according to the value(s) in the table below.

    OK:

    Access Cab., Standard Cab.:

    STOP LIGHT SWITCH CONNECTOR S4 VOLTAGE SPECIFICATIONS (1 OF 2)

    Tester Connection Condition Specified Value
    S4-2 - Body ground Ignition SW ON 10 to 14V
    Fig 2: Identifying Stop Light Switch Connector S4 (Access, Standard Cab)
    G02642997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Double Cab.:

    STOP LIGHT SWITCH CONNECTOR S4 VOLTAGE SPECIFICATIONS (2 OF 2)

    Tester Connection Switch Condition Specified Value
    S4-4 - Body ground Ignition SW ON 10 to 14V
    Fig 3: Identifying Stop Light Switch Connector S4 (Double Cab)
    G02642998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Repair or replace harness or connector (Stop light power source circuit).
    2. OK: Go to next step.
  5. Inspect stop light switch.

    PREPARATION:

    Disconnect the stop light switch connector S4.

    CHECK:

    Measure the resistance according to the value(s) in the table below.

    OK:

    Access Cab., Standard Cab.:

    STOP LIGHT SWITCH CONTINUITY CONDITIONS (1 OF 2)

    Tester Connection Switch Condition Specified Condition
    1 - 2 Free No continuity
    1 - 2 Pushed in Continuity
    Fig 4: Inspecting Stop Light Switch (Access, Standard Cab)
    G02642999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Double Cab.:

    STOP LIGHT SWITCH CONTINUITY CONDITIONS (2 OF 2)

    Tester Connection Switch Condition Specified Condition
    1 - 4 Free No continuity
    1 - 4 Pushed in Continuity
    Fig 5: Inspecting Stop Light Switch (Double Cab)
    G02643000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Replace stop light switch.
    2. OK: Go to next step.
  6. Check harness and connector between master cylinder solenoid (skid control ECU) and stop light switch.
    1. NG: Repair or replace harness or connector (STP circuit).
    2. OK: Go to next step.
  7. Reconfirm DTC (See  DTC CHECK / CLEAR   ).

    PREPARATION:

    Clear the DTCs.

    CHECK:

    Check if the same DTCs are detected.

    RESULT:

    DTC OUTPUT RESULT

    DTC is output A
    DTC is not output B
    1. B: END.
    2. A: Replace master cylinder solenoid (See  DISASSEMBLY  ).
