Circuit Description

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

The master cylinder pressure sensor is connected to the skid control ECU in the hydraulic brake booster.

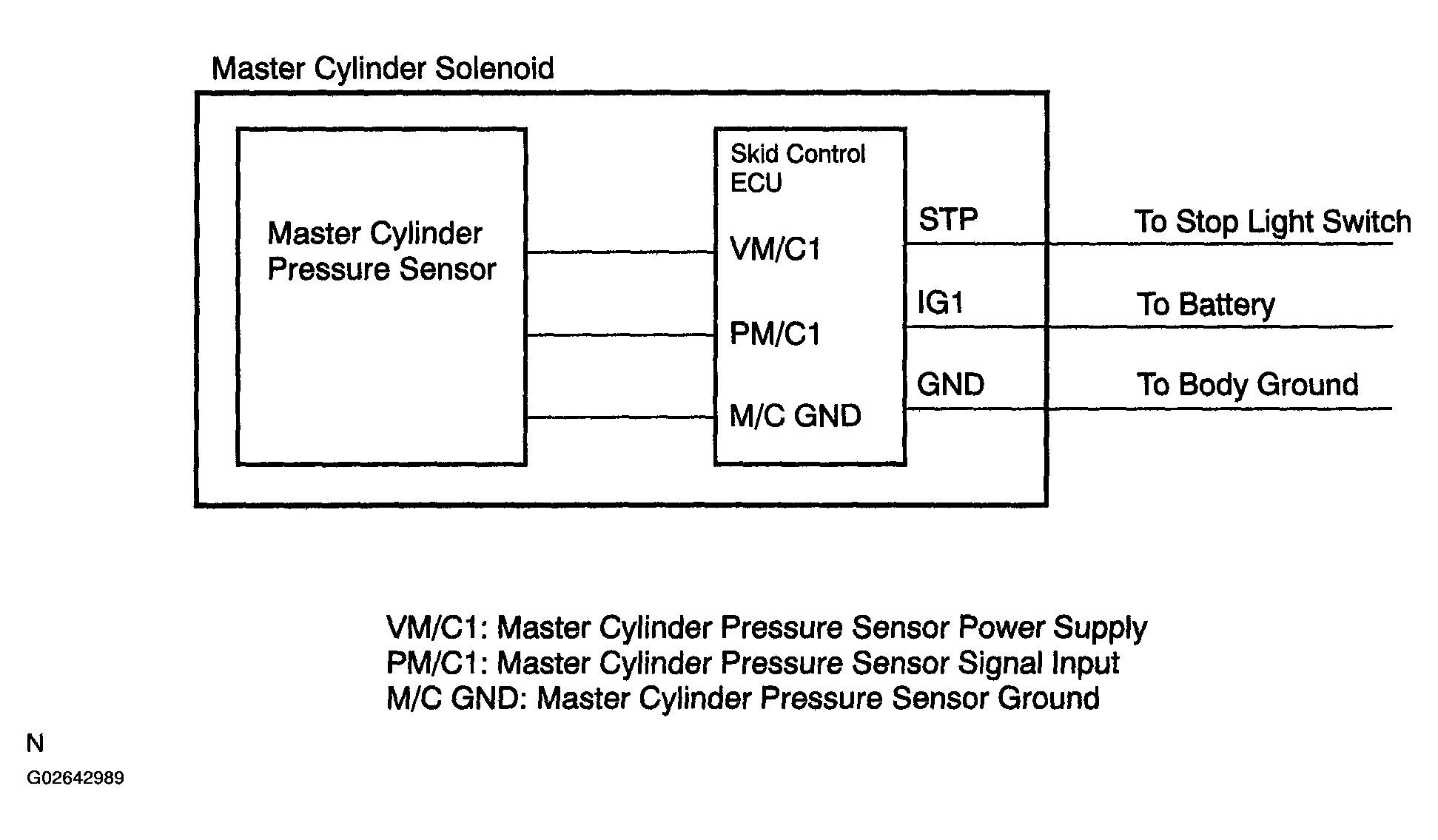

Fig 1: Master Cylinder Pressure Sensor Connection Diagram
G02642989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

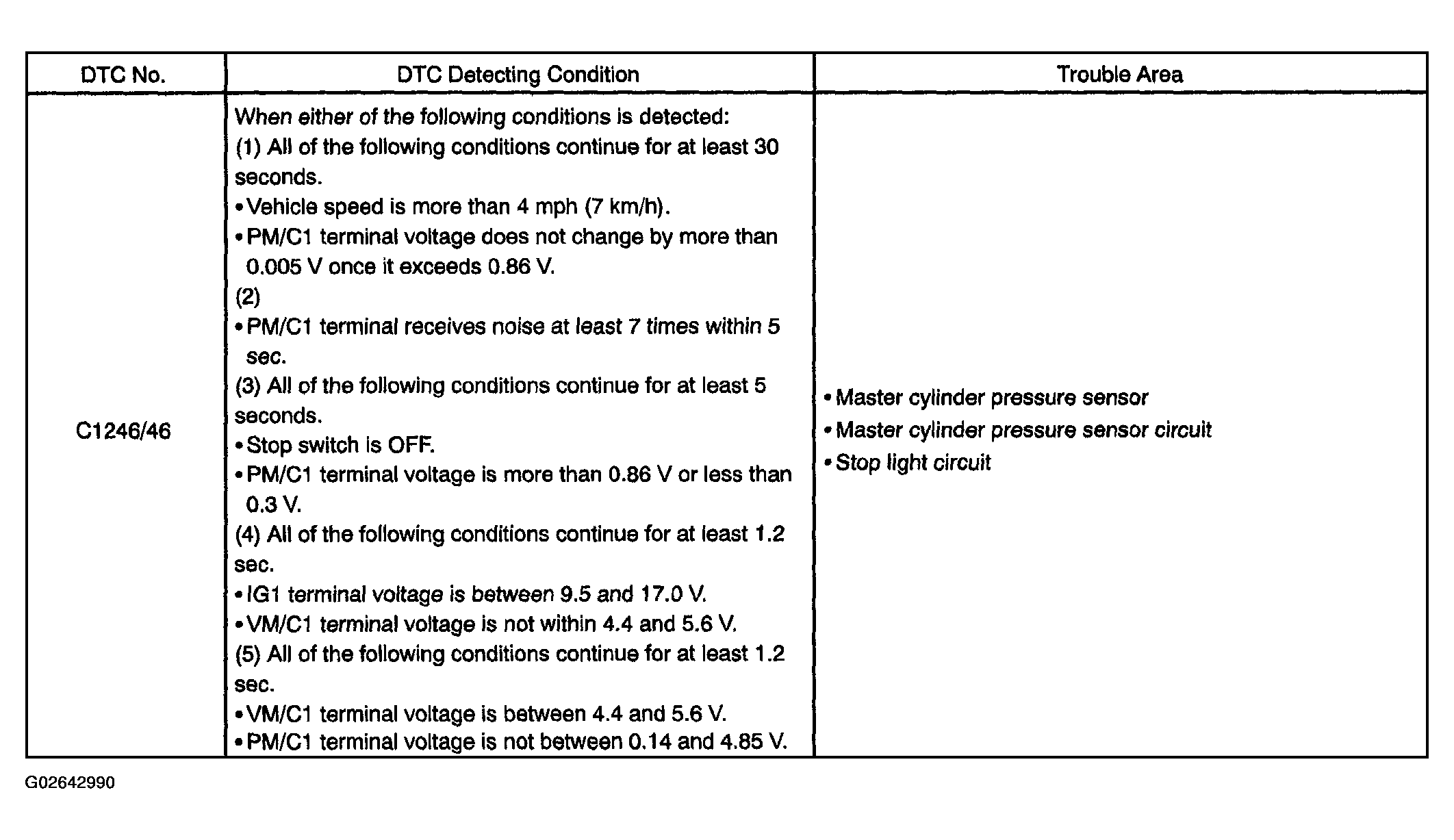

Fig 2: DTC - C1246/46 Trouble Detection Chart
G02642990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
