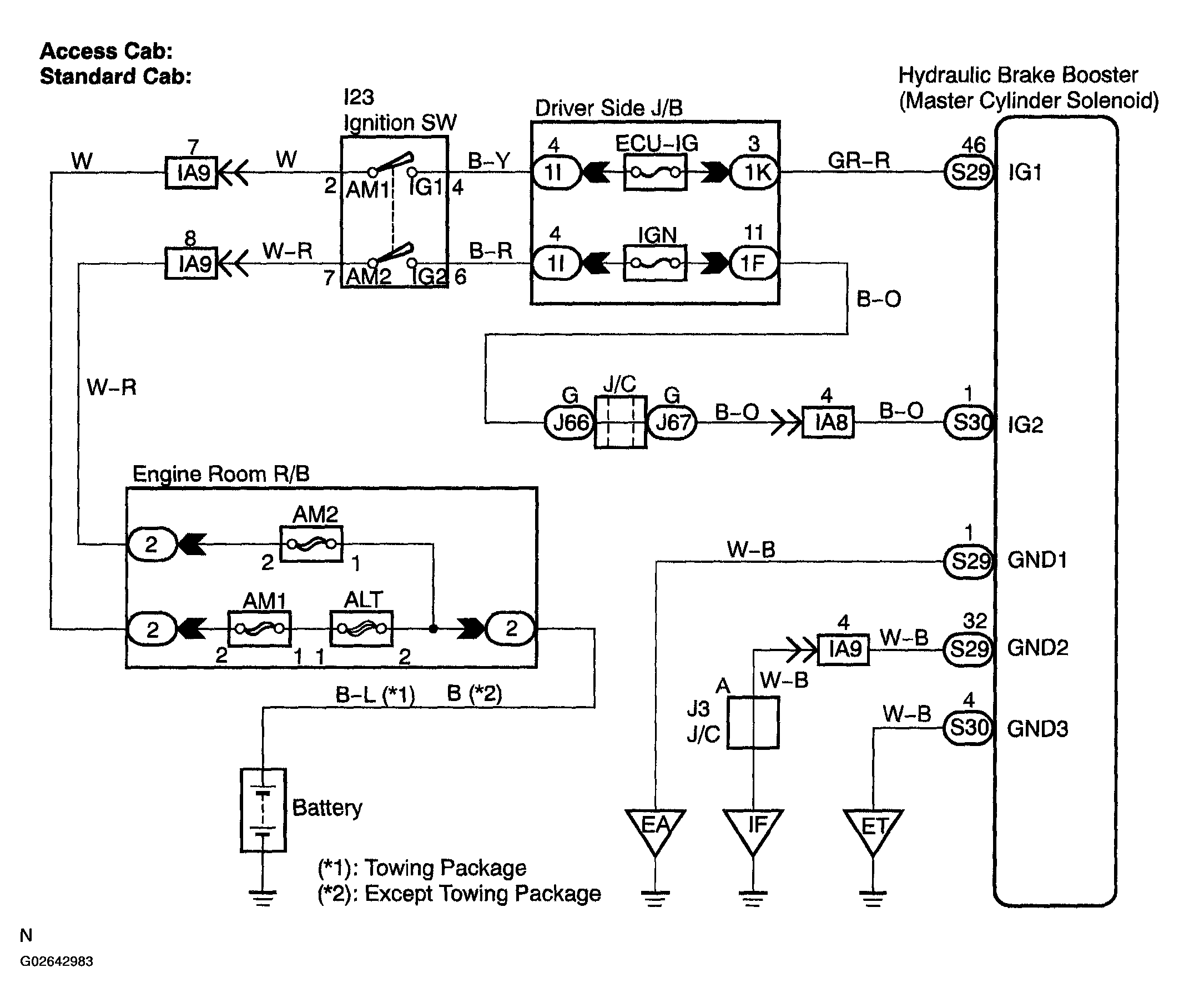

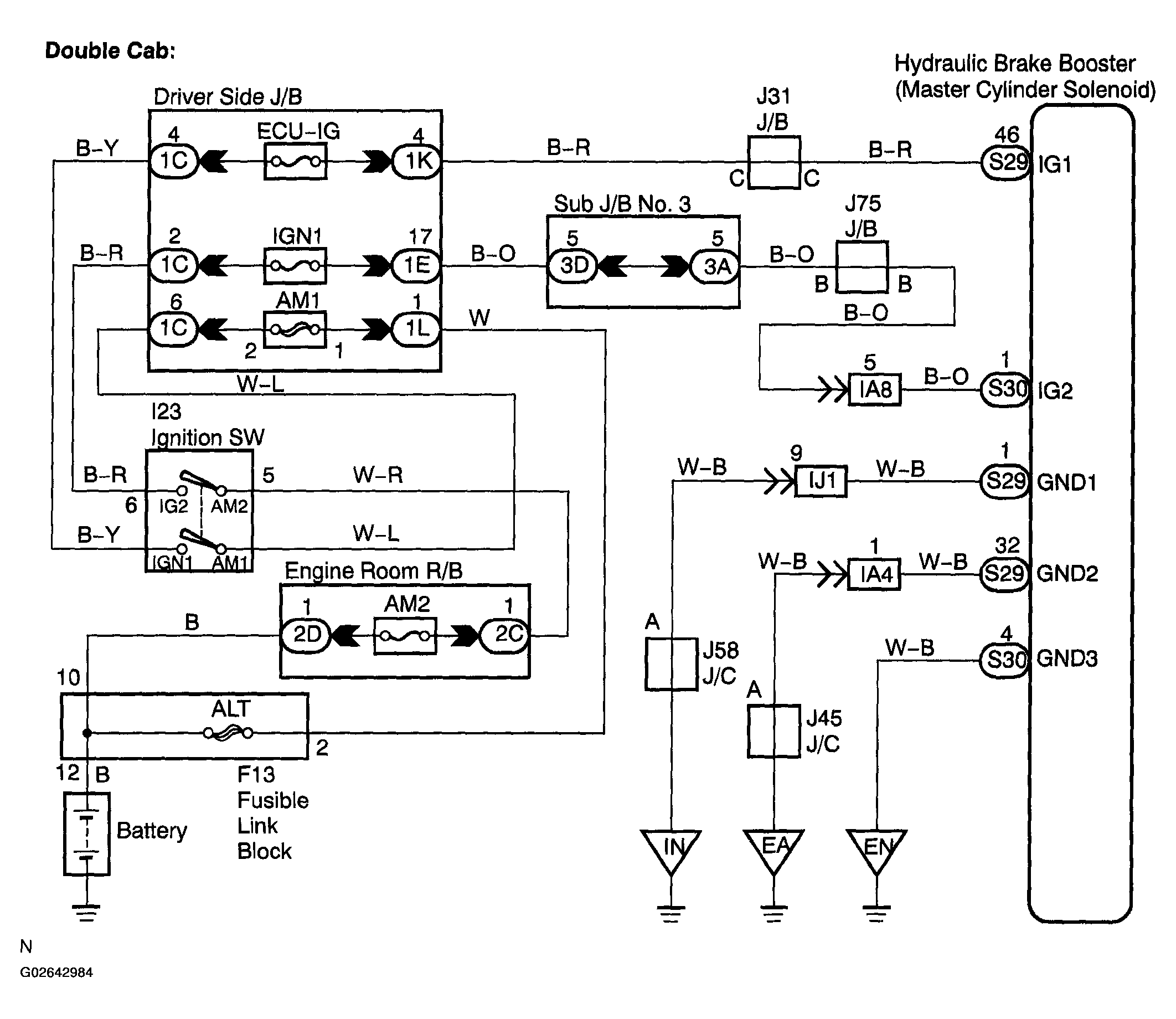

DTC C1242/42: Open Circuit in IG2 Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
