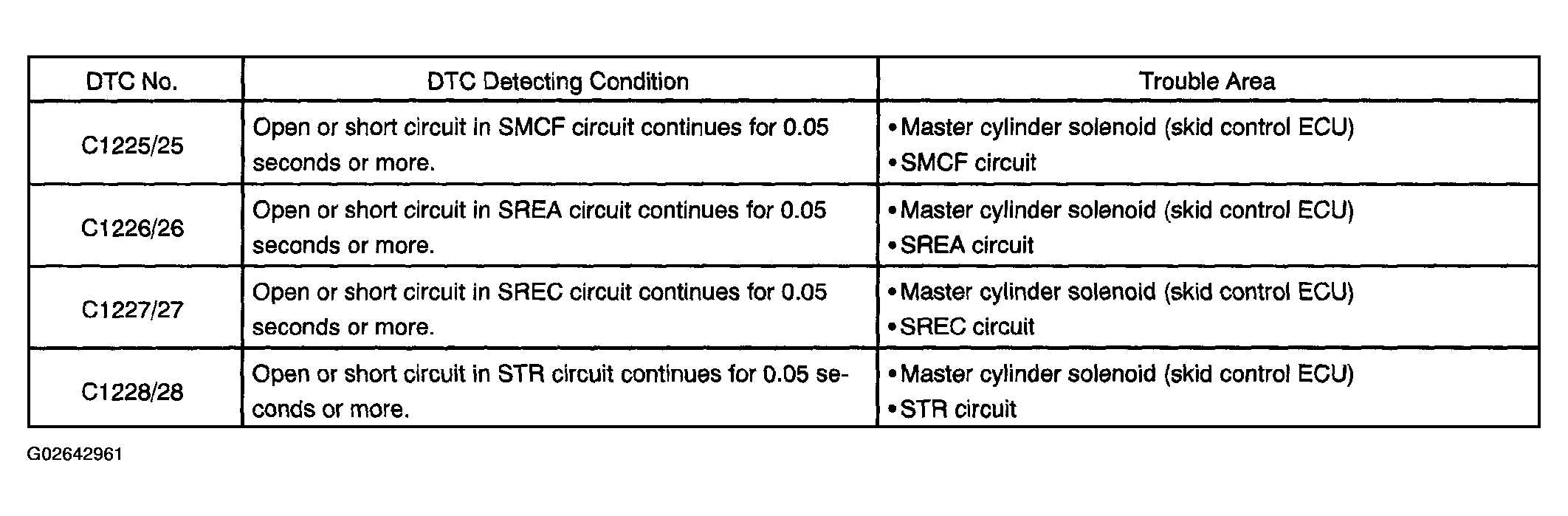

Circuit Description
WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
The TRAC & VSC solenoid operates in accordance with signals from the skid control ECU. This solenoid also raises fluid pressure and releases it from the brake cylinders.
