DTC C1203/53: ECM Communication Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

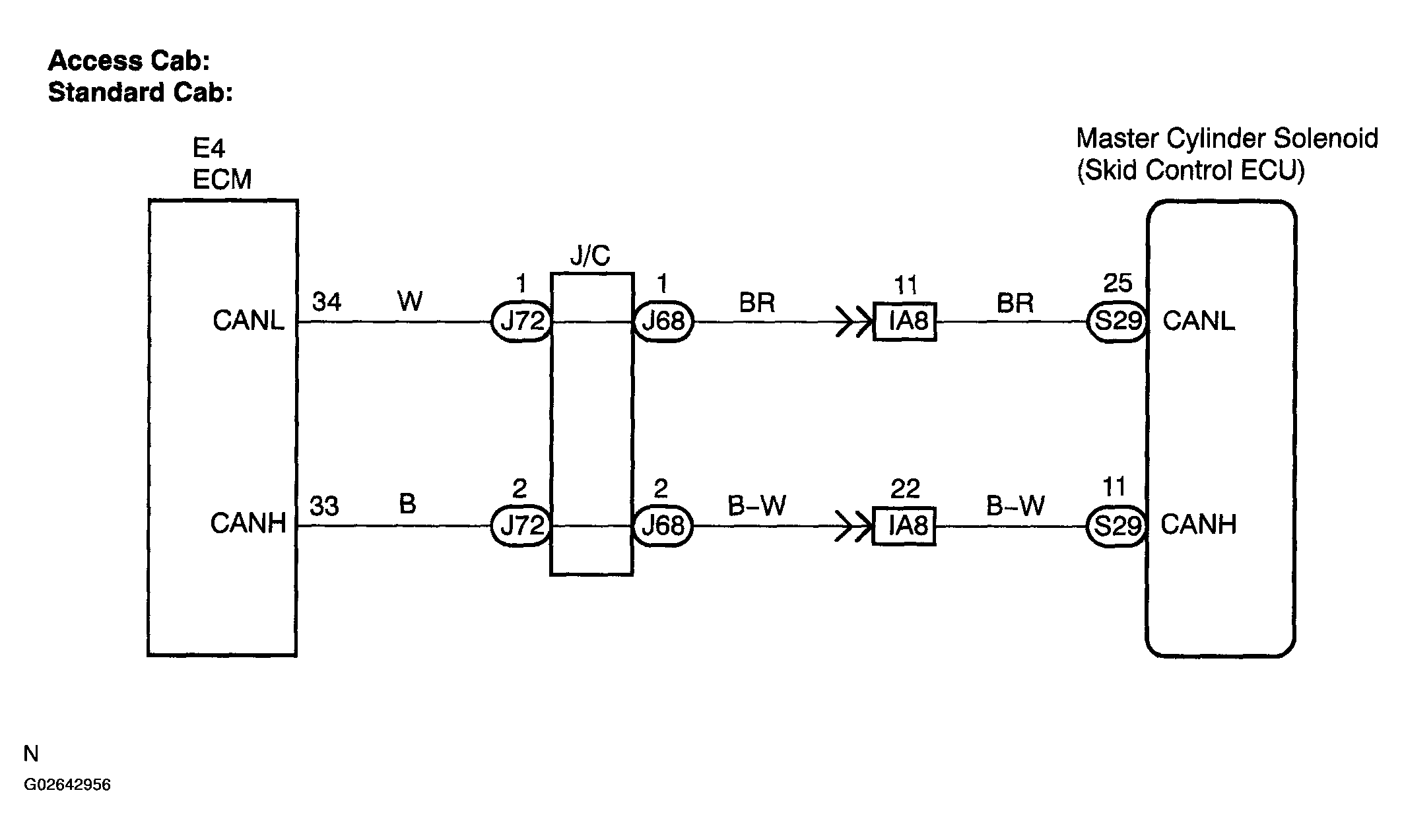

Fig 1: ECM Communication Circuit Wiring Diagram (Access, Standard Cab)
G02642956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

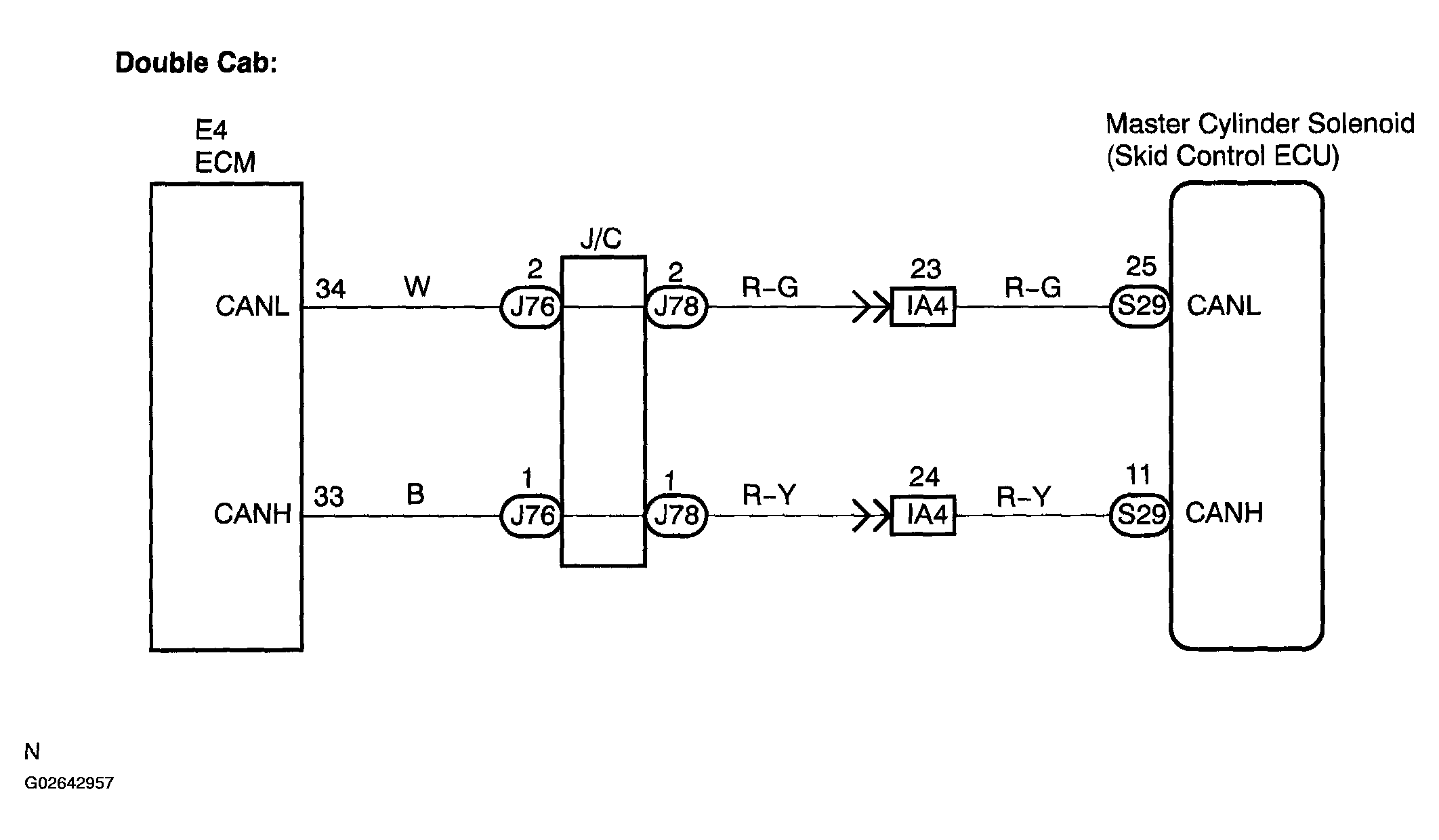

Fig 2: ECM Communication Circuit Wiring Diagram (Double Cab)
G02642957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
