Circuit Description

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

The brake fluid level warning switch sends the appropriate signal to the master cylinder solenoid (skid control ECU) when the brake fluid level drops.

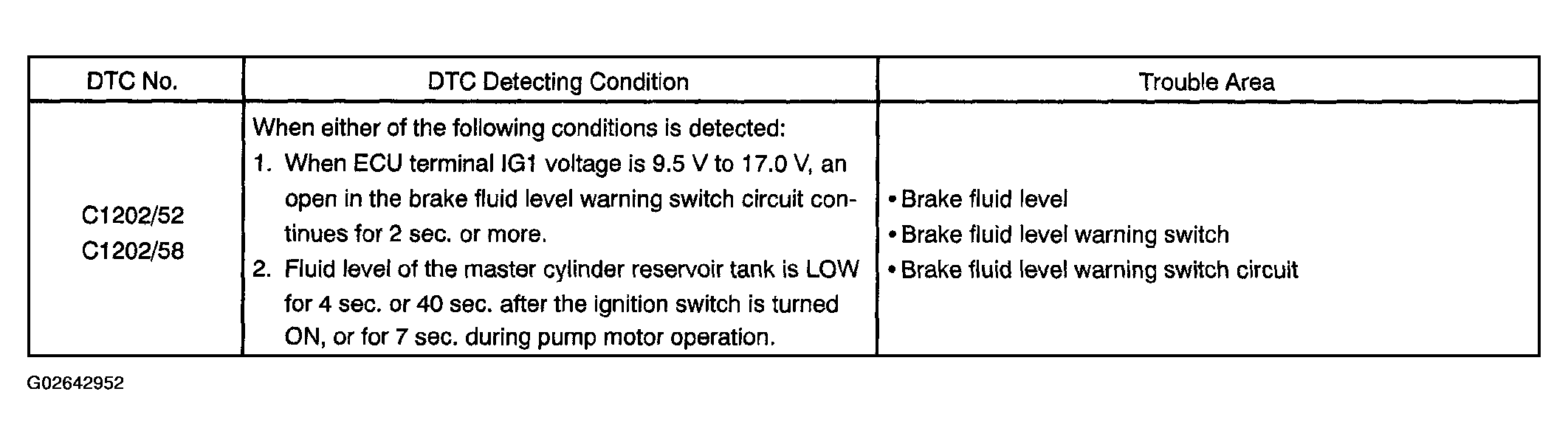

Fig 1: DTC - C1202/52 And C1202/58 Trouble Detection Chart
G02642952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
