DTC C0200/31, C0205/32, C0210/33, C0215/34: Right/Left Front/Rear Speed Sensor Signal Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Tundra and 2005 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

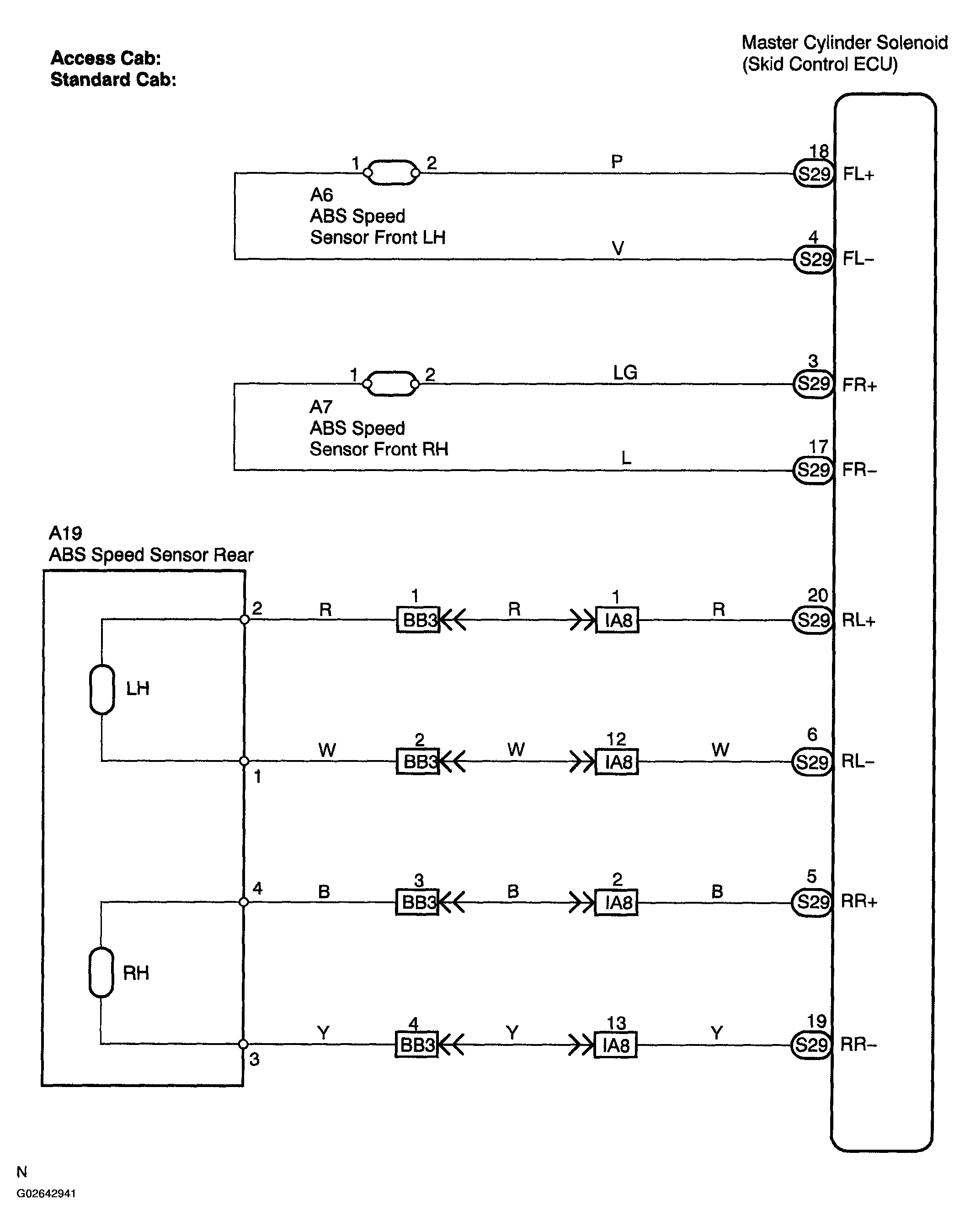

Fig 1: Wiring Diagram - ABS Speed Sensor (Access, Standard Cab)

Fig 2: Wiring Diagram - ABS Speed Sensor (Double Cab)
