Brake Booster Unit (Double Cab)
Brake Booster Unit (Double Cab)
For procedure, see
Fig 1
.

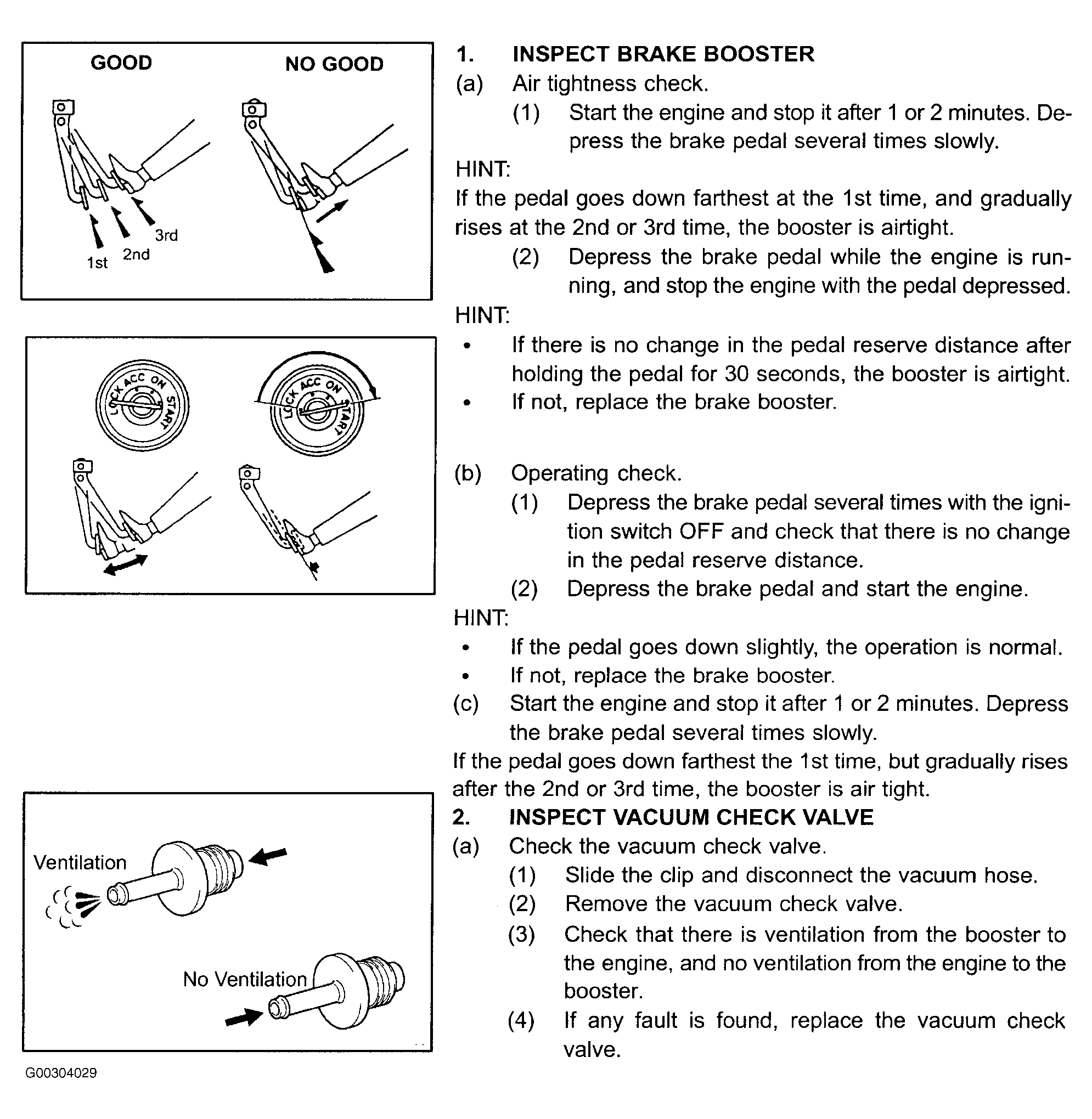

Fig 1: Brake Booster Assembly On-Vehicle Inspection Procedure (Double Cab)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
