Bleeding Procedures (Double Cab)

For procedure, see Fig 1 and Fig 2 .

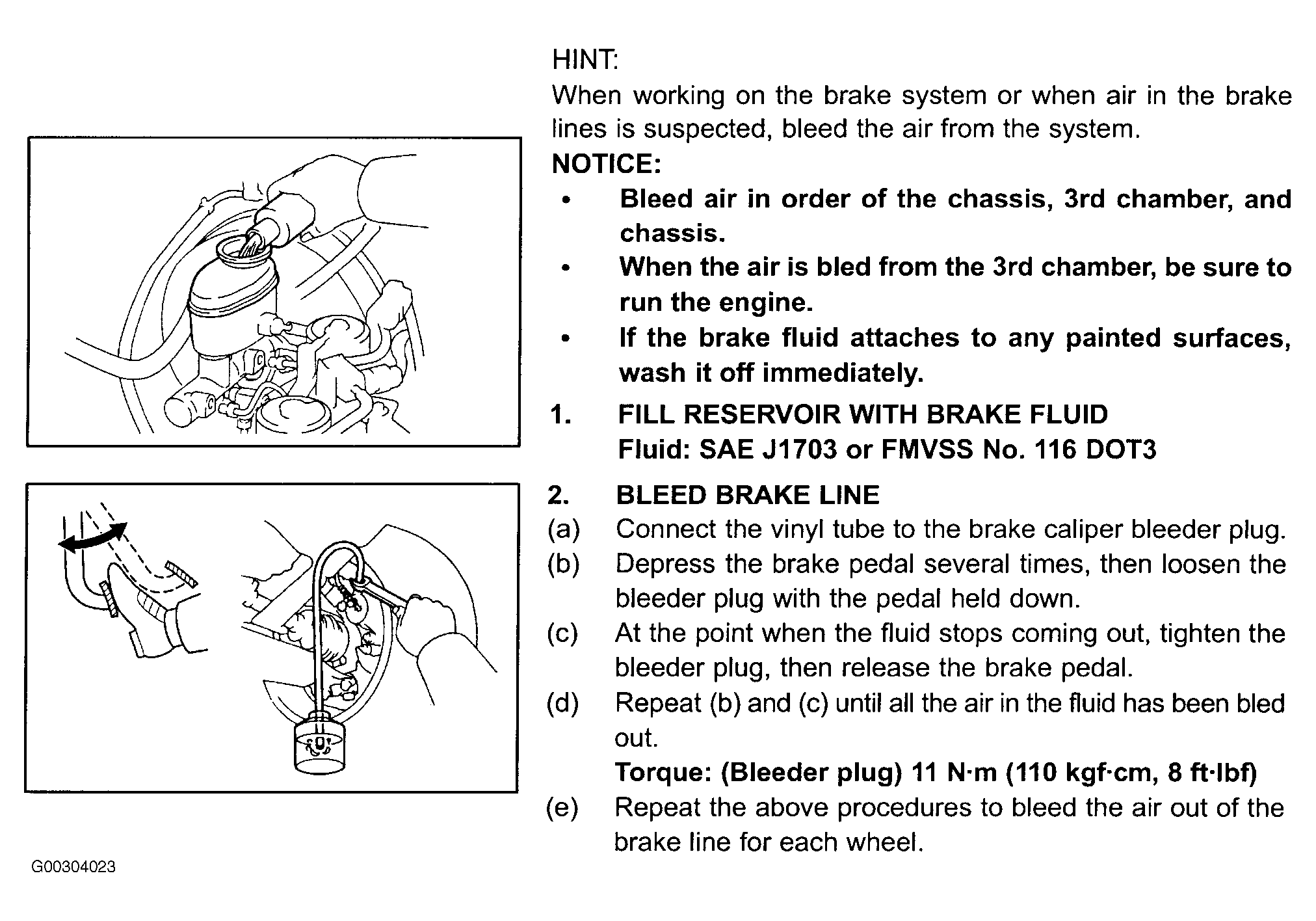

Fig 1: Brake Bleeding Procedures (Double Cab - 1 Of 2)
G00304023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

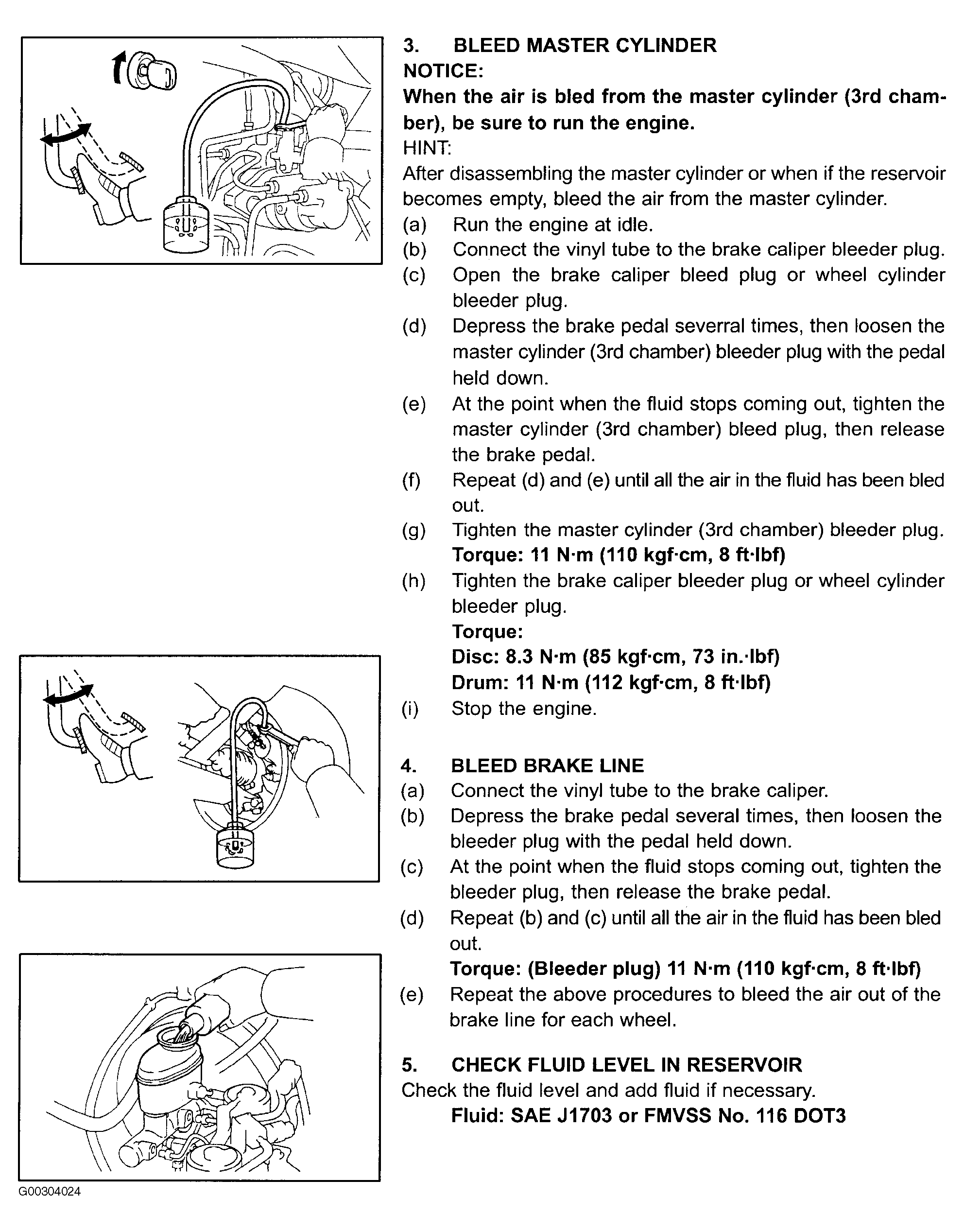

Fig 2: Brake Bleeding Procedures (Double Cab - 2 Of 2)
G00304024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
