Brake Pedal Height

For procedure, see Fig 1-Fig 3 . For component view, see Fig 4. For specifications, see BRAKE PEDAL SPECIFICATIONS table. After setting pedal height, tighten lock nut on push rod. Adjust stoplight switch and tighten switch lock nut. See STOPLIGHT SWITCH .

BRAKE PEDAL SPECIFICATIONS

Application	Free Play - In. (mm)	Pedal Height - In. (mm)
Tundra "B" & "C" Cab	.04-.24 (1-6)	6.46-6.85 (164-174)
Tundra "D" Cab	.04-.24 (1-6)	5.95-6.5 (151-165)

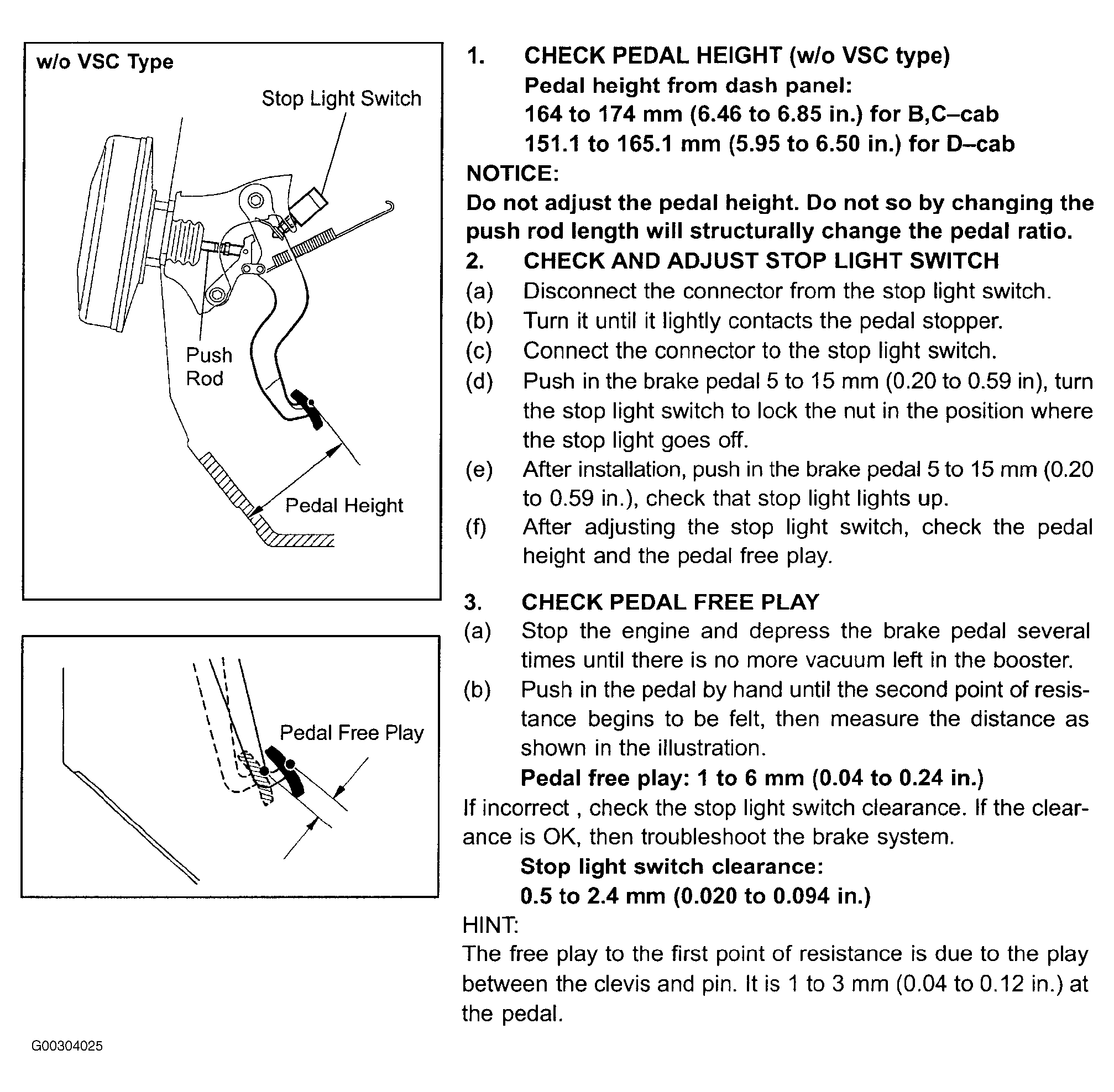

Fig 1: Brake Pedal On-Vehicle Inspection & Adjustment Procedure (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

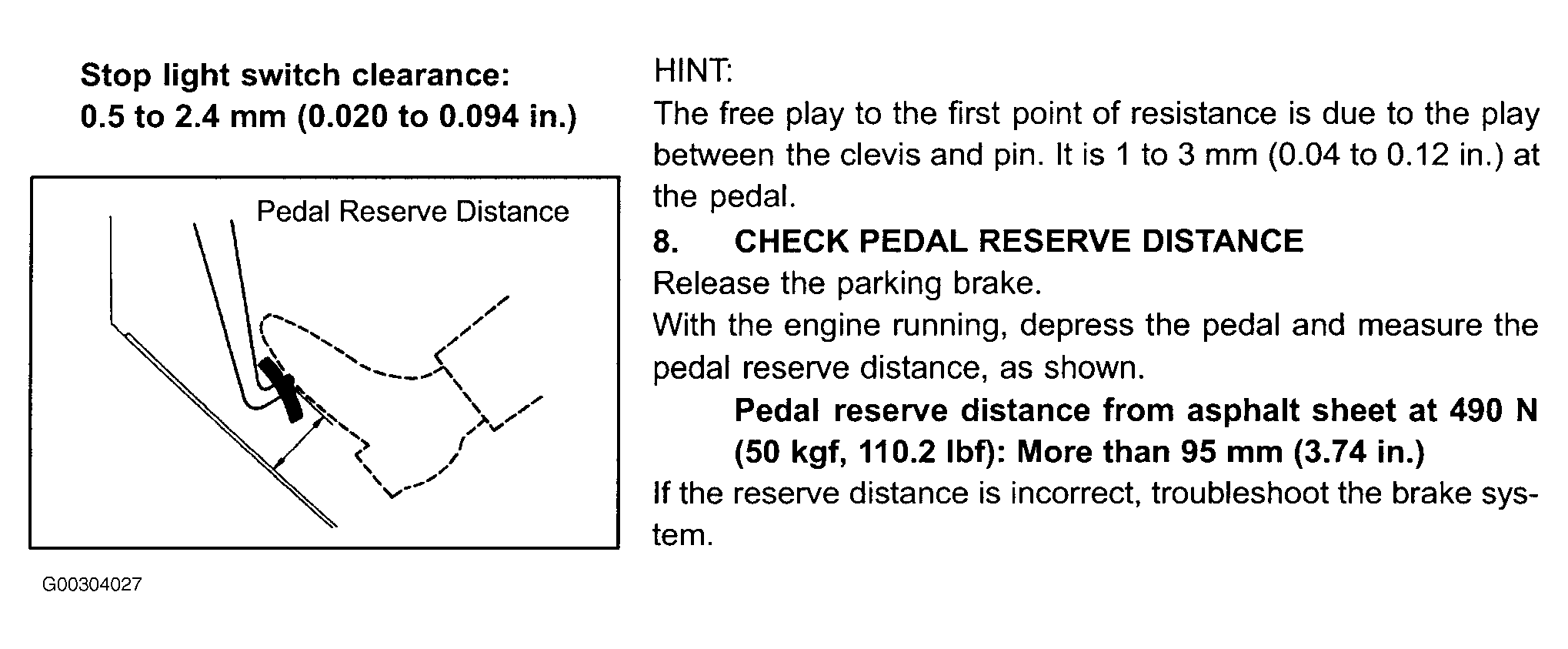

Fig 2: Brake Pedal On-Vehicle Inspection & Adjustment Procedure (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

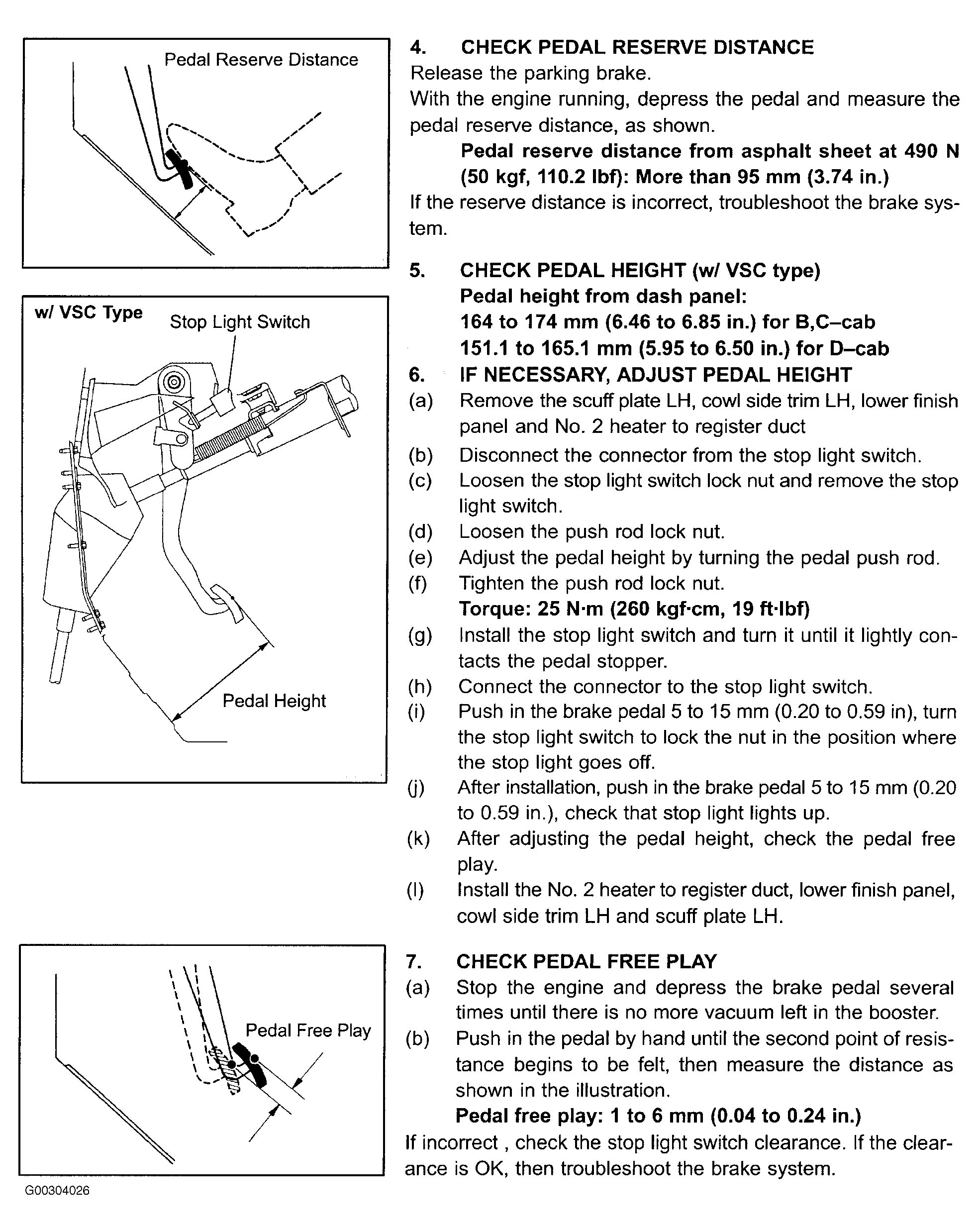

Fig 3: Brake Pedal On-Vehicle Inspection & Adjustment Procedure (3 Of 3)

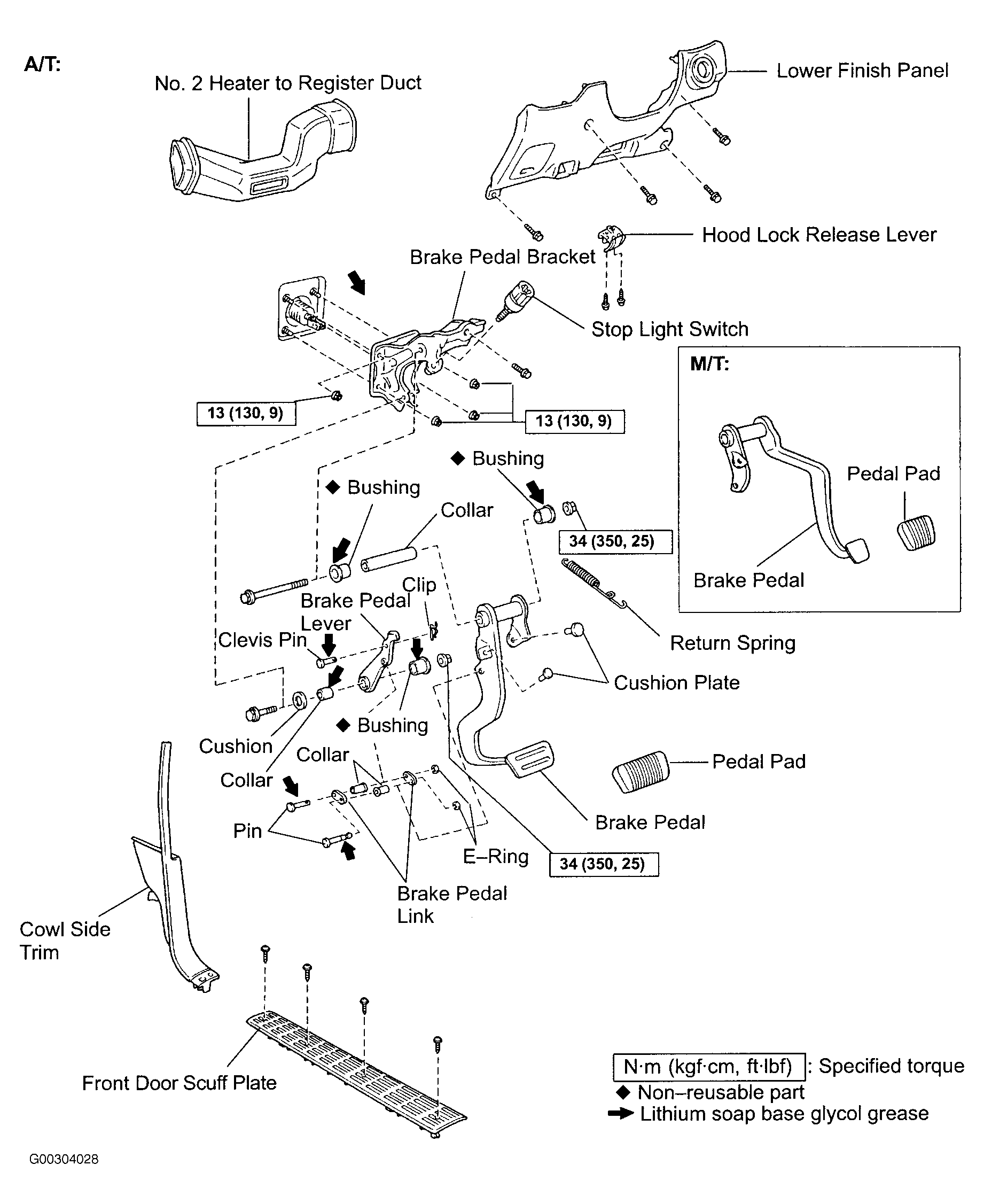

Fig 4: Locating Brake Pedal Assembly Components
