Rear Door (Double Cab): Adjustment

ADJUST DOOR IN FORWARD/ REARWARD AND VERTICAL DIRECTIONS
1. Remove the front and rear door scuff plates.
2. Remove the center pillar lower garnish.
3. Remove the front seat outer belt (see REMOVAL ).
4. Loosen the body side hinge nuts to adjust.
  Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)
5. Install the front seat outer belt and center pillar lower garnish (see REMOVAL ).
6. Install the front and rear door scuff plates.

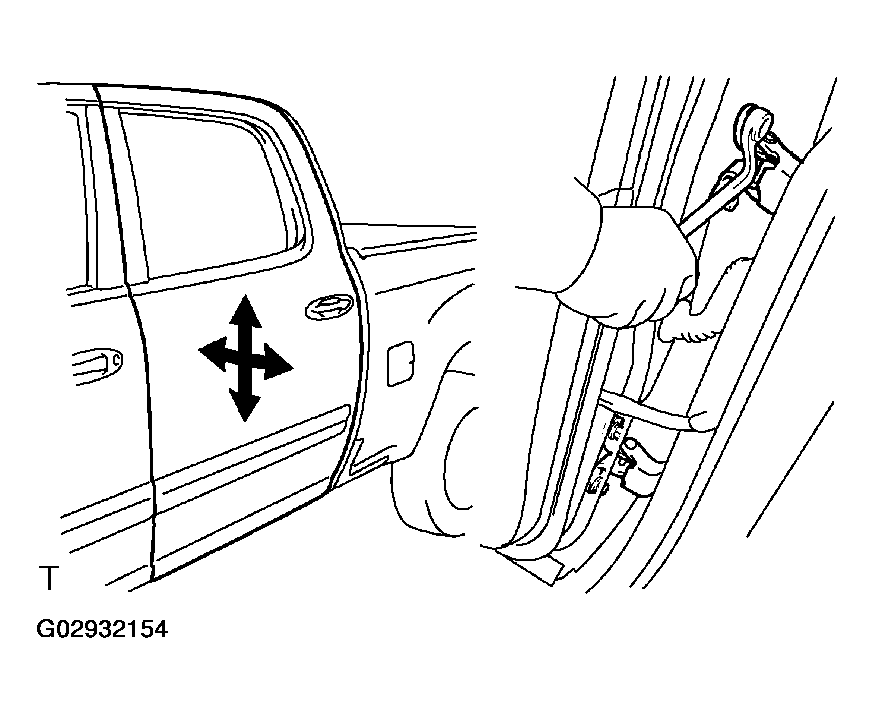

  Fig 1: Adjusting Door In Forward/Rearward And Vertical Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Loosen the door side hinge bolts to adjust.

Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)

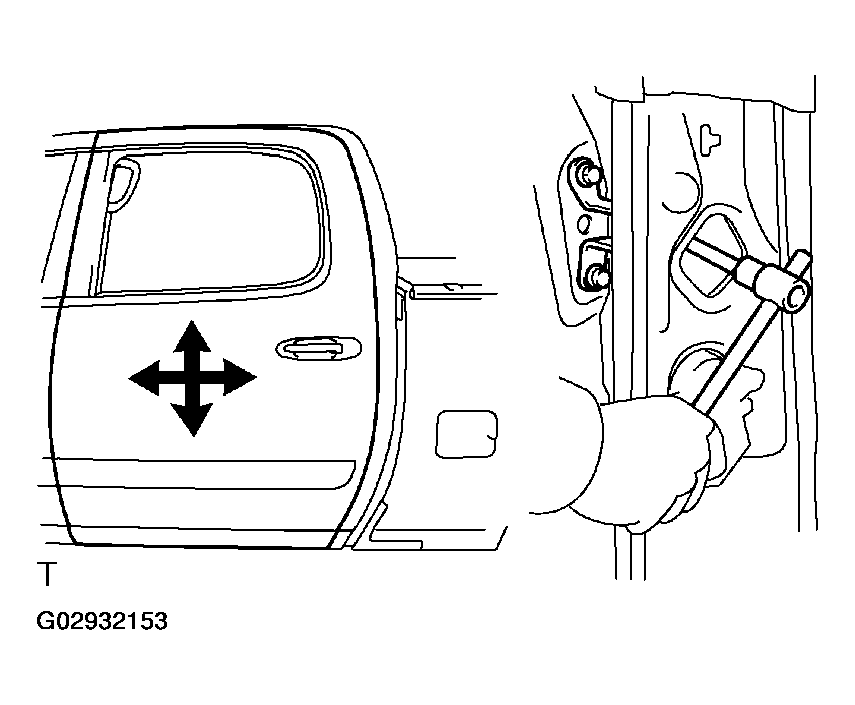

Fig 2: Adjusting Door In Left/Right And Vertical Directions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST DOOR LOCK STRIKER
1. Check that the door fit and door lock linkages are adjusted correctly.
2. Loosen the striker mounting screws to adjust.
  Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)
3. Using a plastic hammer, tap the striker to adjust it.

  Fig 3: Adjusting Door Lock Striker
