Home >> Toyota >> 2004 >> Sienna CE >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brakes & Drum Brakes >> Overhaul >> Rear Wheel Cylinders

Rear Wheel Cylinders

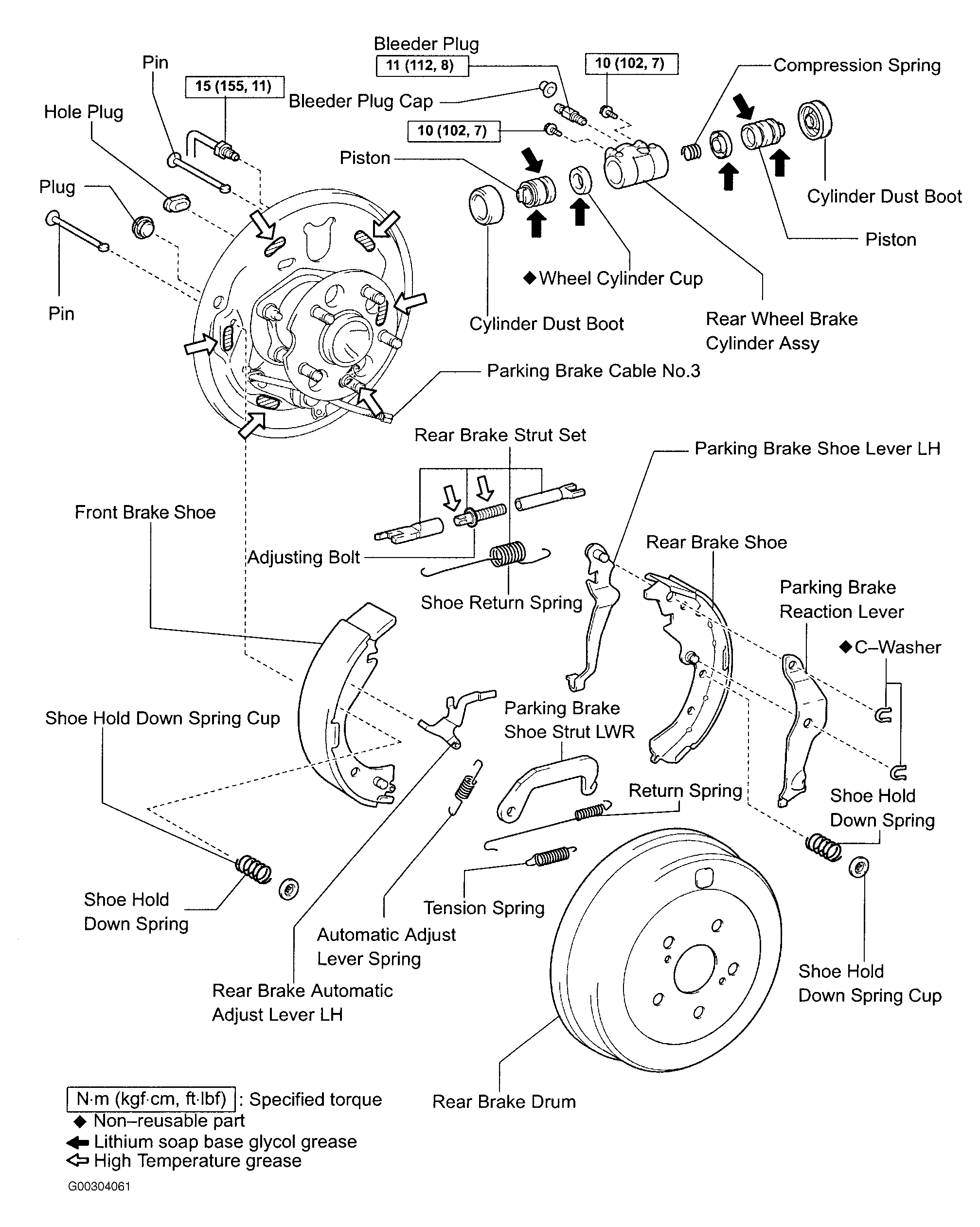

For overhaul of rear wheel cylinders, see Figure.
