Front Brake Caliper

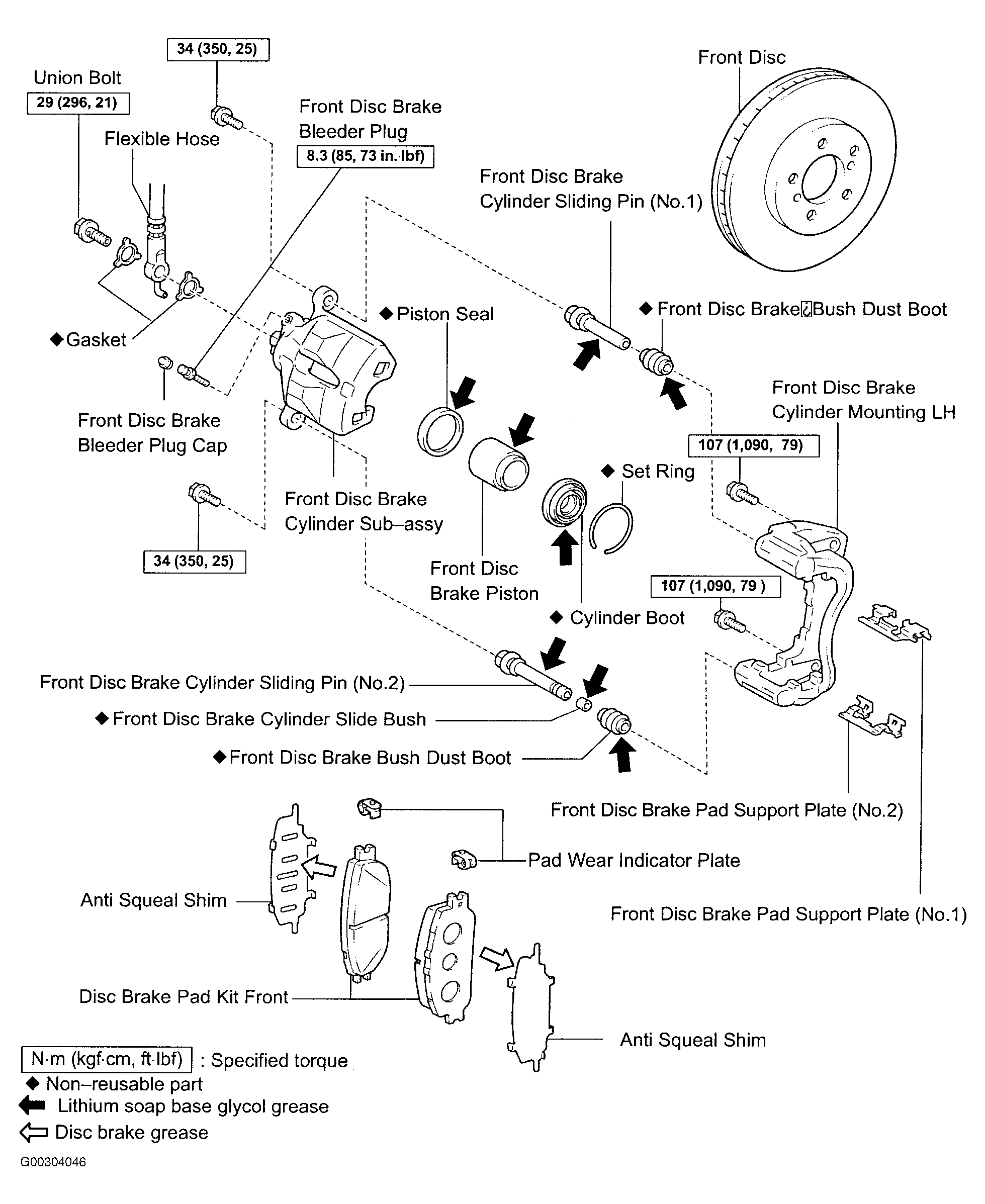

Remove caliper. See FRONT BRAKE CALIPER in REMOVAL & INSTALLATION. For overhaul procedure, see Fig 1-Fig 5 . For component view, see Figure. Fill and bleed system. Check for leaks and adjust pedal, if needed.

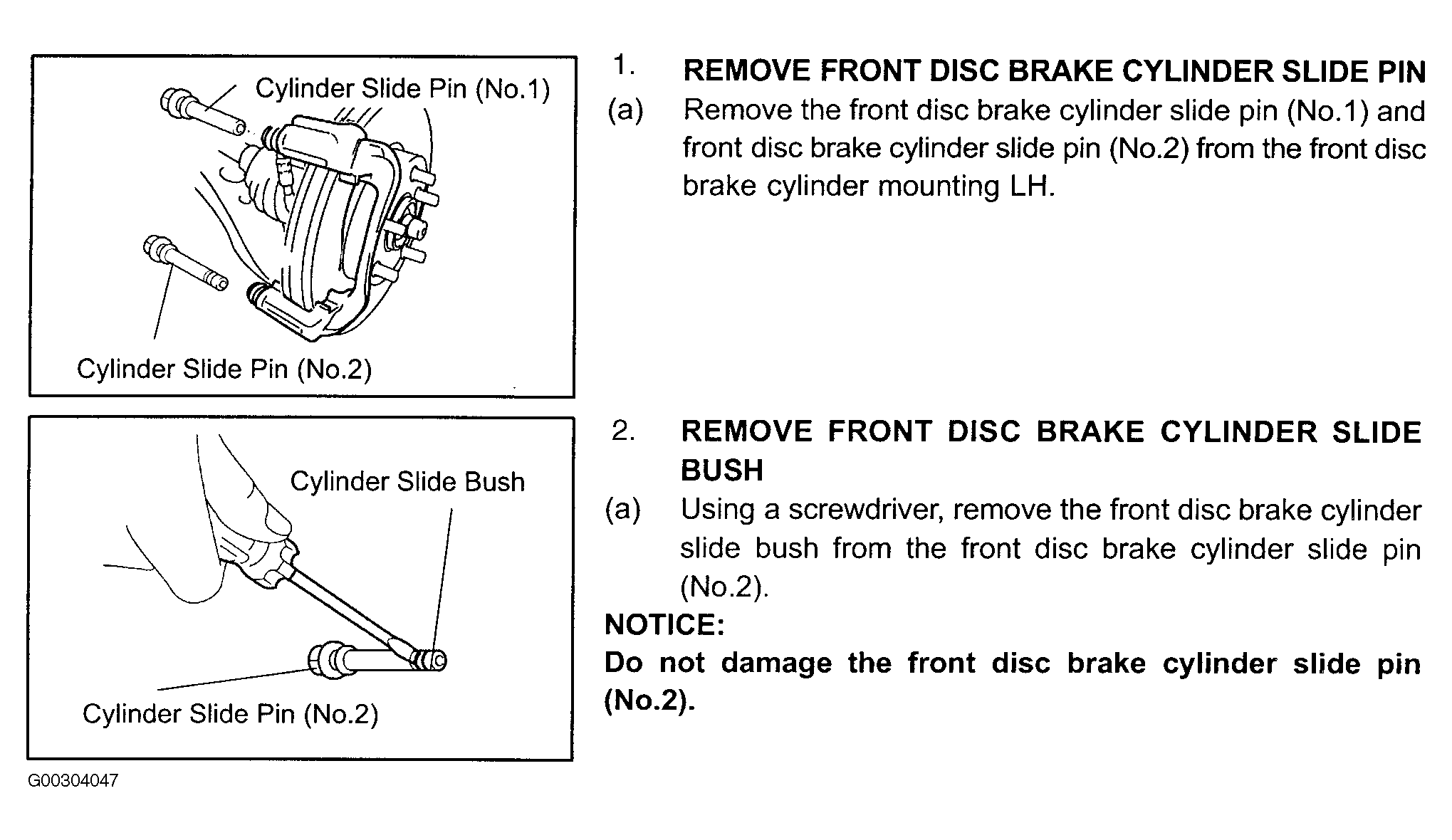

Fig 1: Front Brake Caliper Overhaul Procedure (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

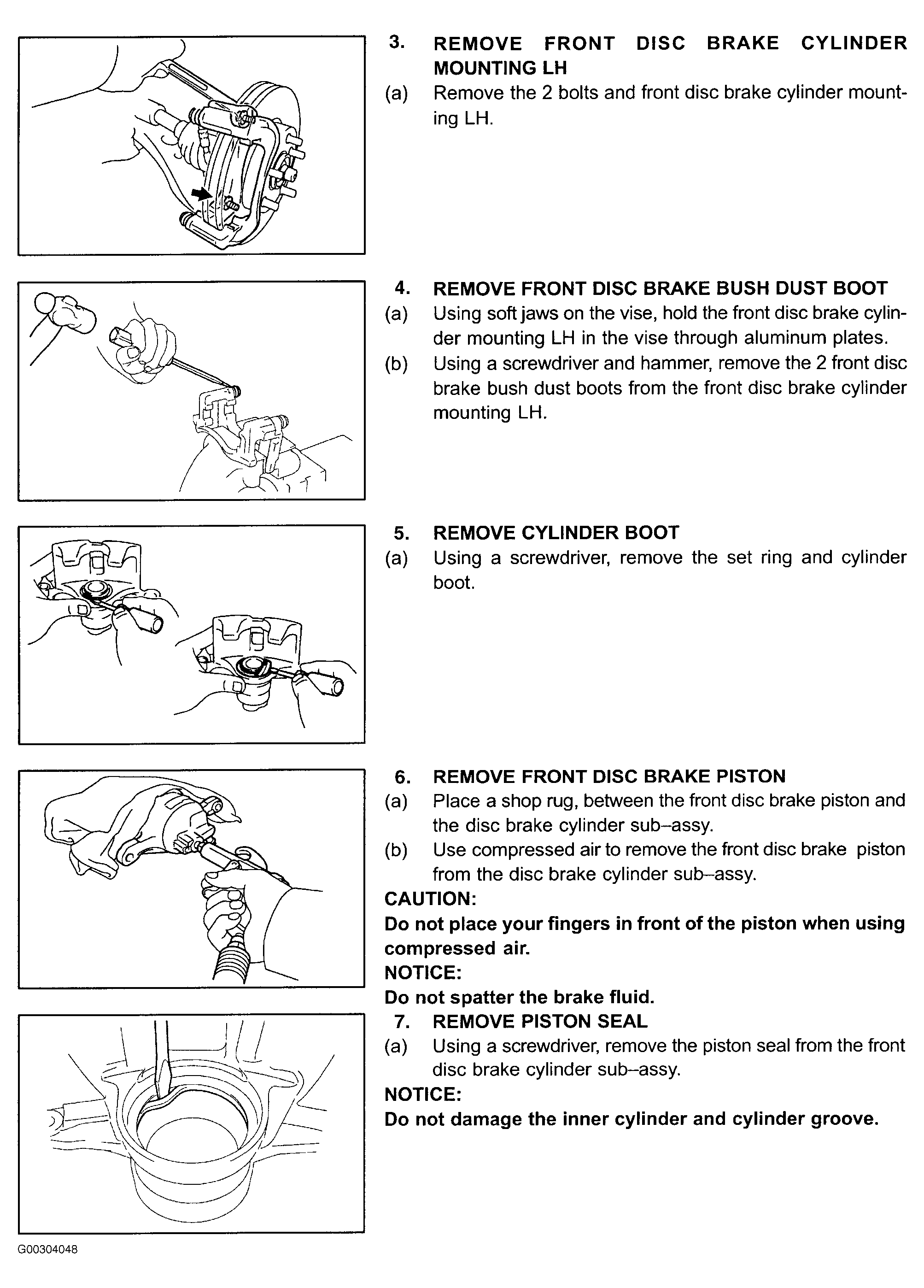

Fig 2: Front Brake Caliper Overhaul Procedure (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

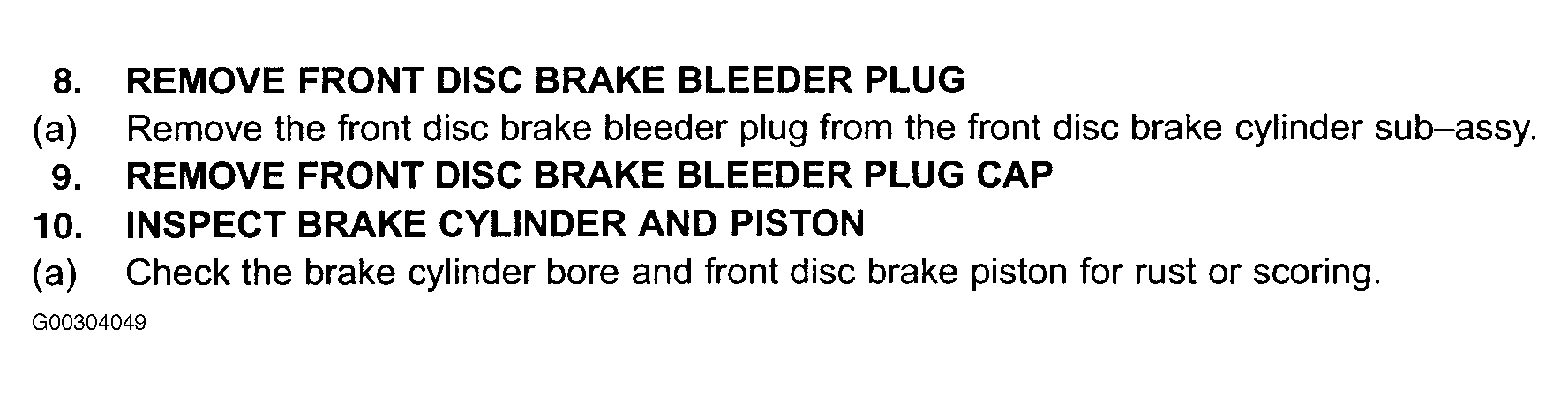

Fig 3: Front Brake Caliper Overhaul Procedure (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

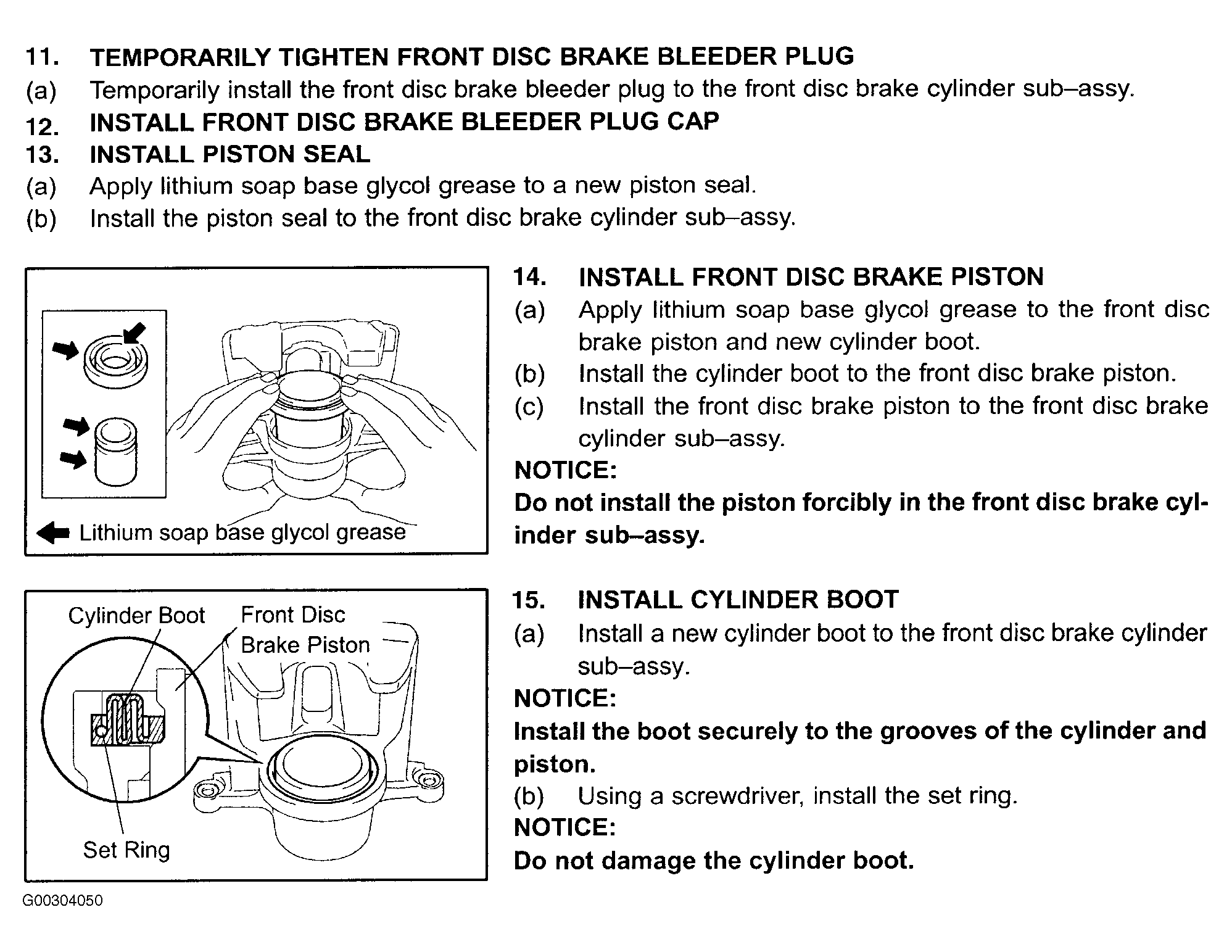

Fig 4: Front Brake Caliper Overhaul Procedure (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

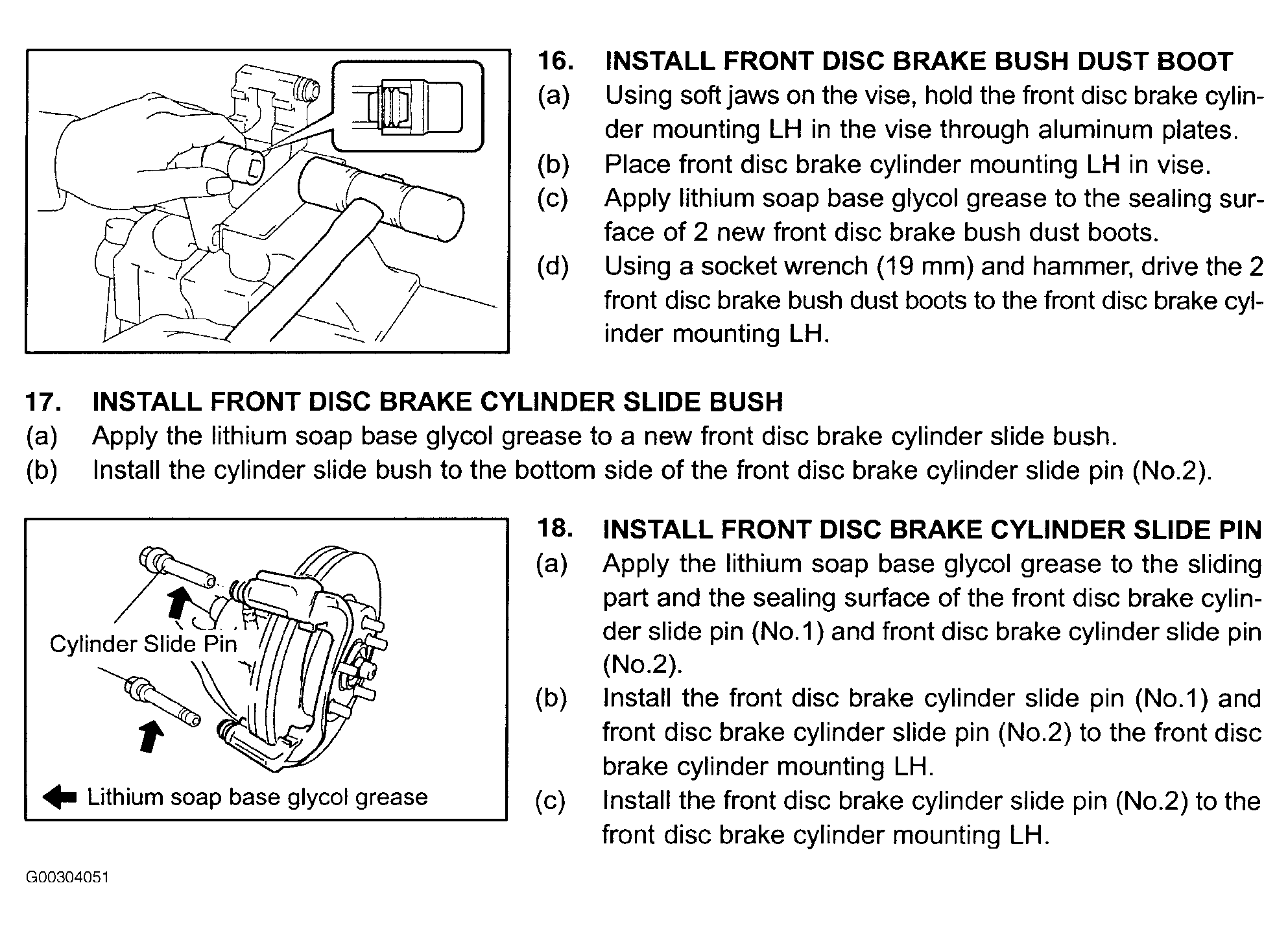

Fig 5: Front Brake Caliper Overhaul Procedure (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
