Pedal Stroke Adjustment

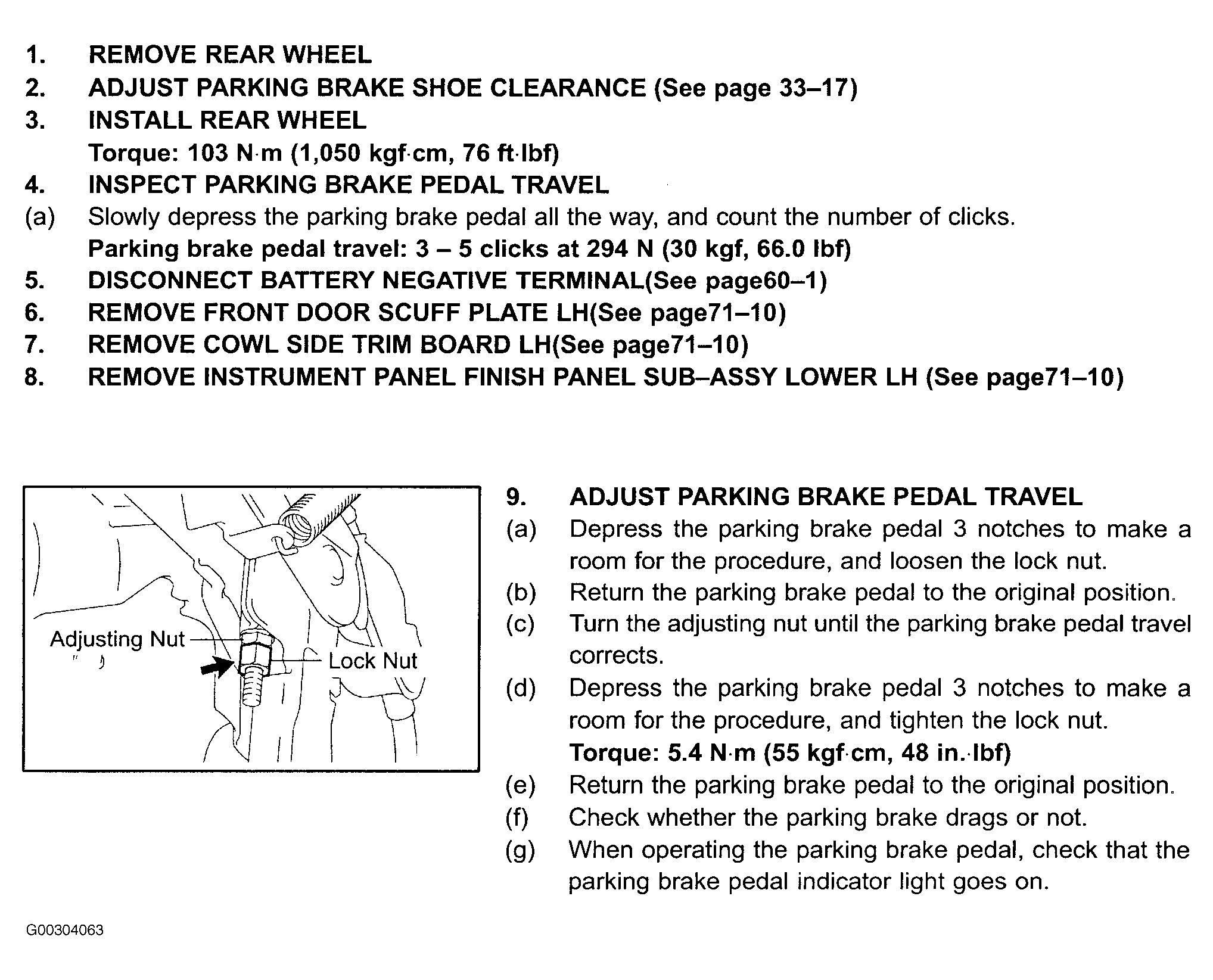

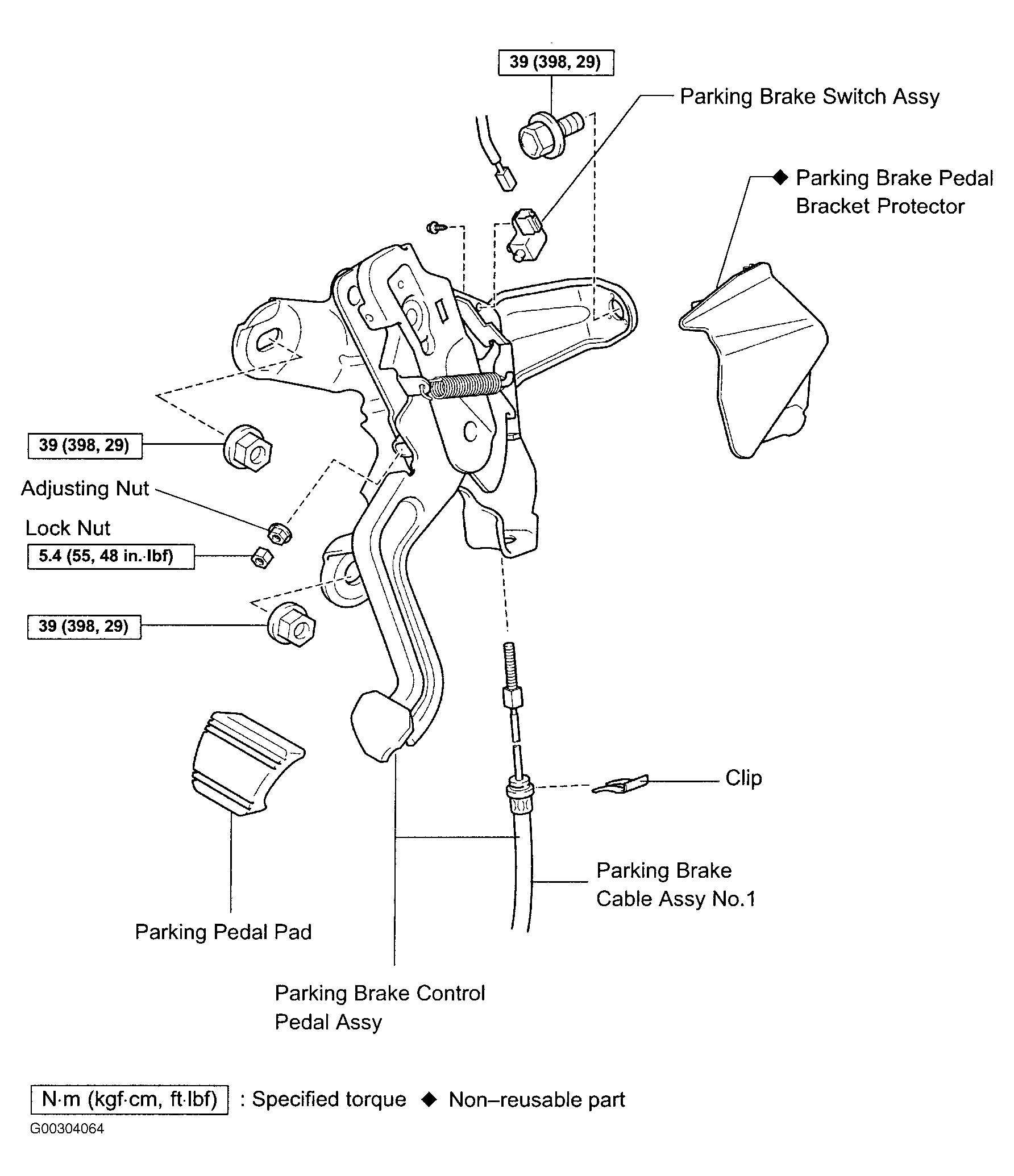

For procedure, see Fig 1. For component view, see Fig 2. For specifications see PARKING BRAKE PEDAL STROKE SPECIFICATIONS table.
PARKING BRAKE PEDAL STROKE SPECIFICATIONS
| Application | Notches | Weight Applied Lbs. (Kg) |
|---|---|---|
| Sienna | 3-5 | 66 (30) |
