Brake Pedal Height, Pedal Free Play, Pedal Reserve Distance & Stoplight Switch

For procedure, see Fig 1 and Fig 2 . For component view, see Fig 3. For specifications, see BRAKE PEDAL SPECIFICATIONS  table and BRAKE PEDAL MINIMUM RESERVE DISTANCE SPECIFICATIONS  table.

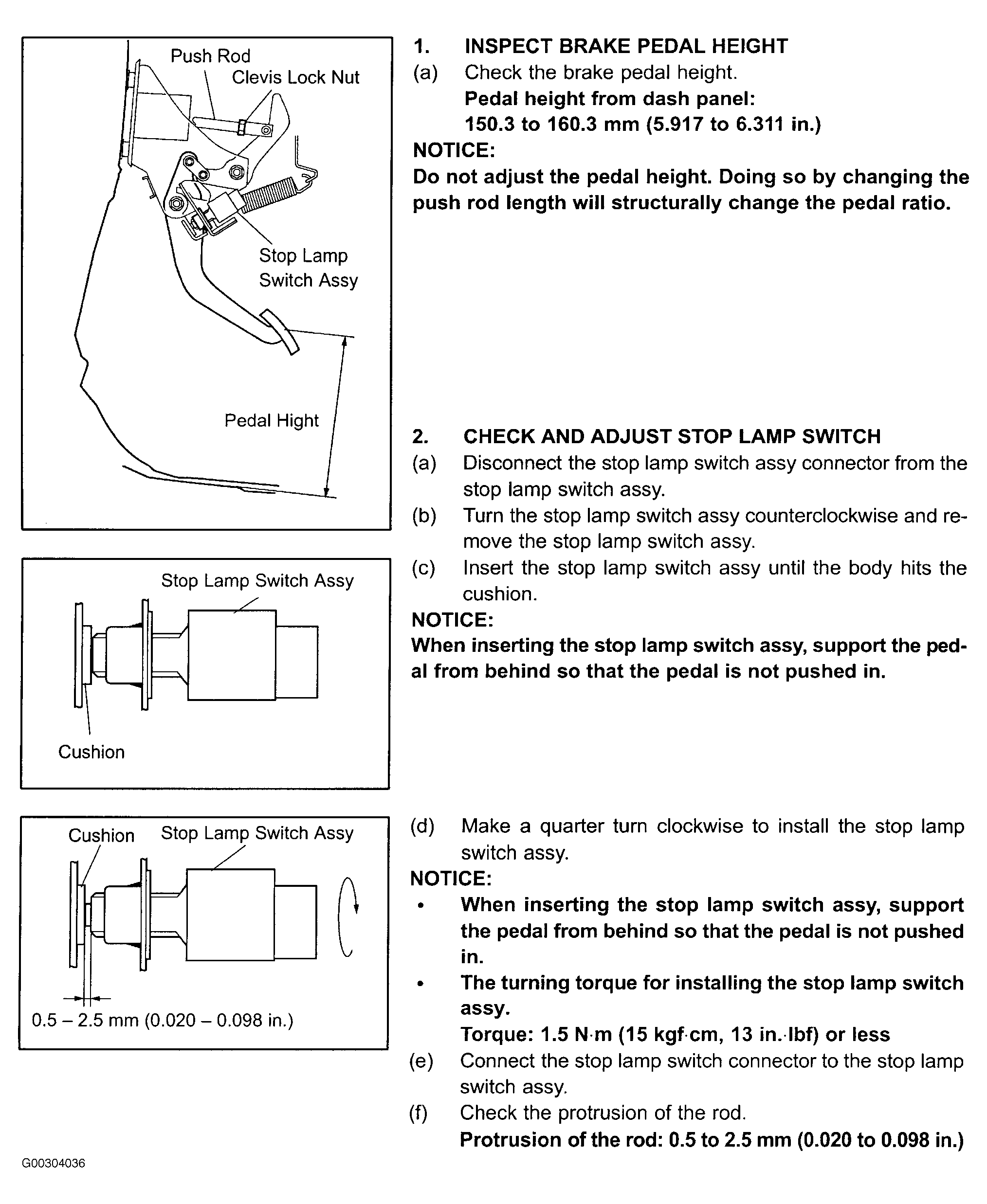

Fig 1: Brake Pedal Assembly Adjustment & Check Procedures (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

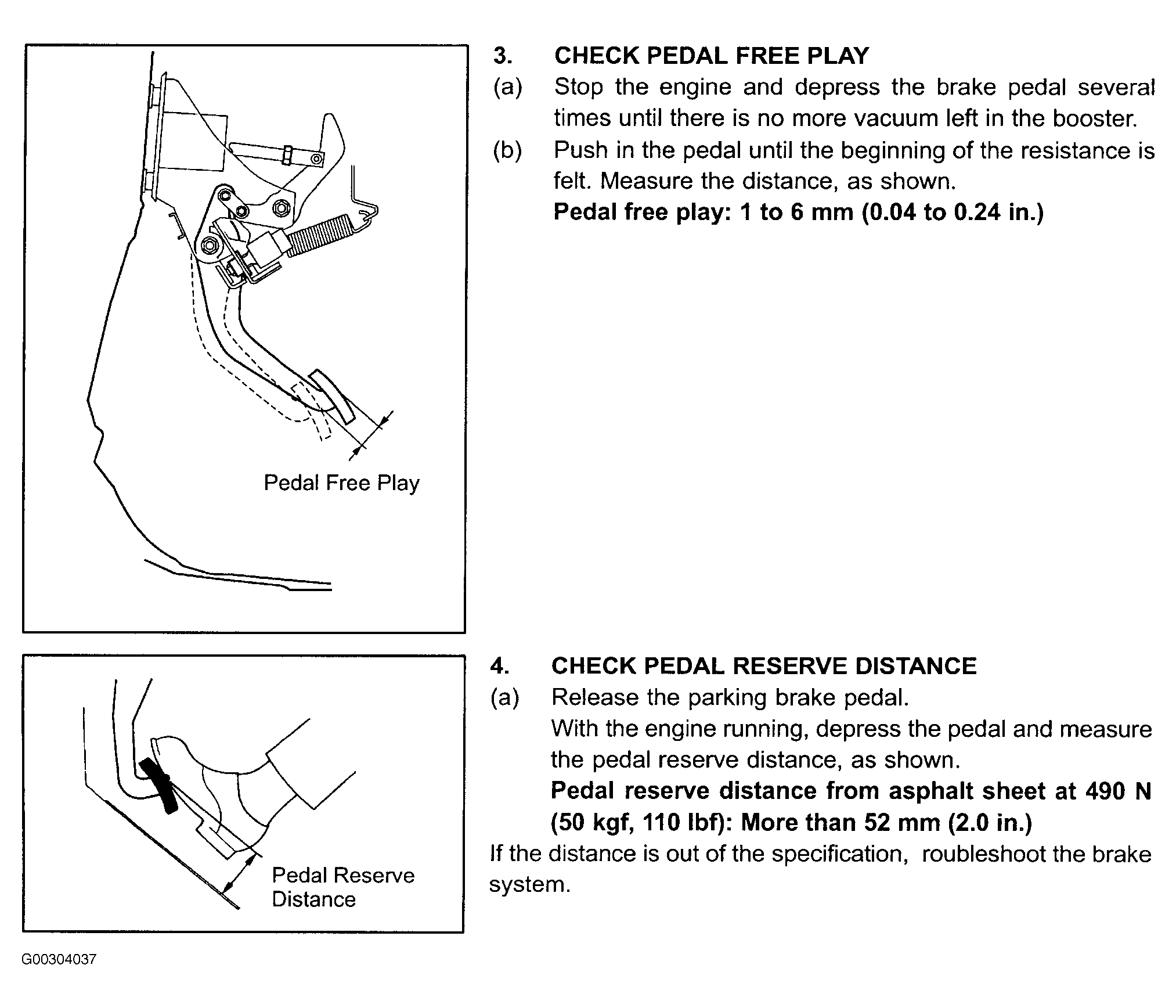

Fig 2: Brake Pedal Assembly Adjustment & Check Procedures (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

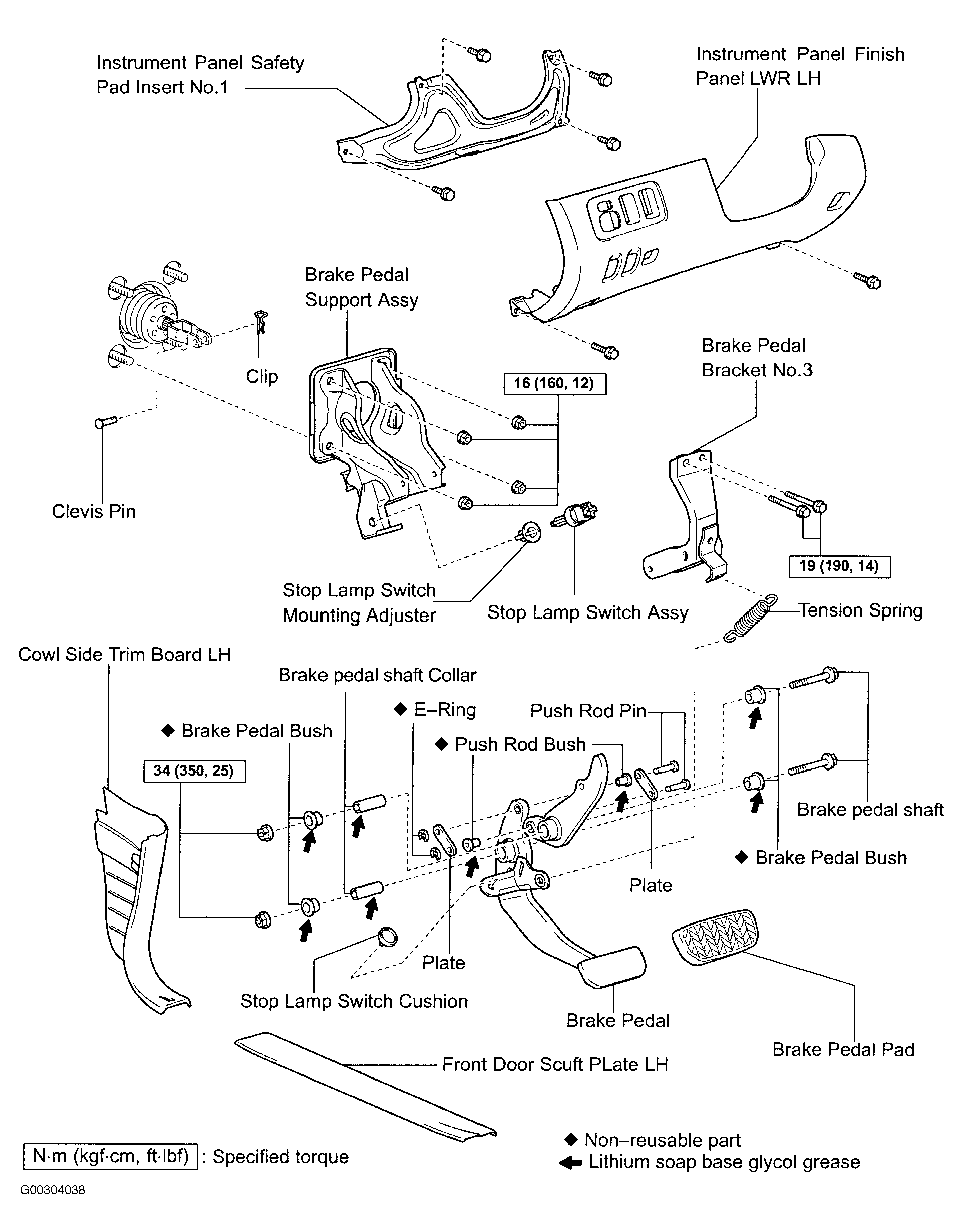

Fig 3: Locating Brake Pedal Assembly Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
