Point Socket Assembly - First Part (Left Rear Side Interior)

NOTE: COMPONENTS: See COMPONENTS

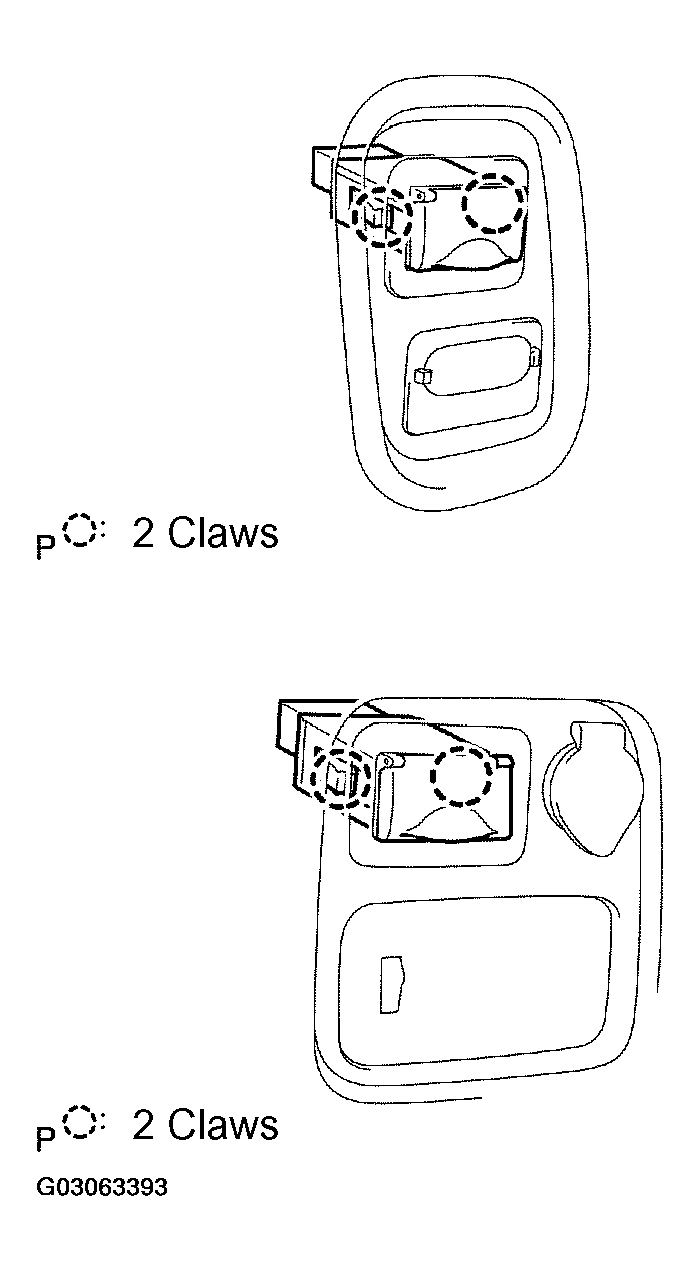

Fig 1: Removing Power Point Socket Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. REMOVE REAR DOOR SCUFF PLATE LH (See  ROOF HEADLINING ASSY  )
2. REMOVE REAR DOOR WEATHERSTRIP LH (See  ROOF HEADLINING ASSY  )
3. REMOVE BACK DOOR WEATHERSTRIP (See  ROOF HEADLINING ASSY  )
4. REMOVE BACK DOOR SCUFF PLATE (See  ROOF HEADLINING ASSY  )
5. REMOVE QUARTER TRIM PANEL ASSY FRONT LH (See  ROOF HEADLINING ASSY  )
6. REMOVE POWER POINT SOCKET ASSY
   1. Release the 2 claw fittings and remove the power point socket assy.
