Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

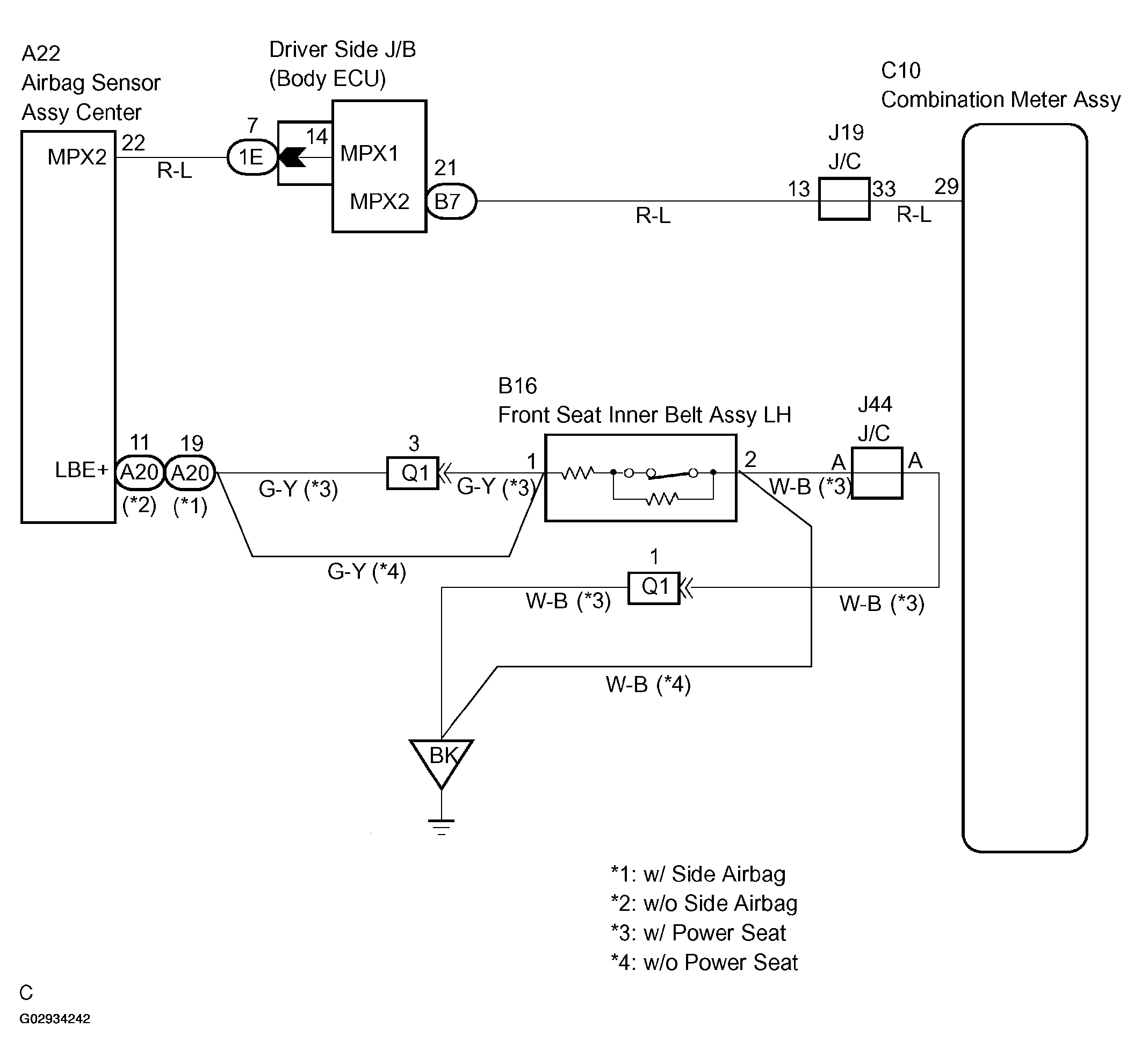

Fig 1: Wiring Diagram - Seat Belt Warning Lamp
G02934242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
