Combination Meter - Diagnosis: Pre-Check
- ACTIVE TEST NOTE: According to the ACTIVE TEST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one method to shorten work time.
- Warm up the engine.
- Turn the ignition switch to OFF.
- Connect the hand-held tester to DLC3.
- Turn the ignition switch to ON.
- Operate the hand-held tester according to the steps on the display and PERFORM the "ACTIVE TEST".ACTIVE TEST DETAILS
Item Test Details Diagnostic Note SPEED METER 0 / 40 / 80 / 120 / 160 - TACHOMETER 0 RPM / 1000 RPM / 2000 RPM / 3000 RPM / 4000 RPM / 5000 RPM / 6000 RPM / 7000 RPM - FUEL GAUGE EMPTY, 1/2, FULL - COOLANT TEMP LOW / NORM / HIGH - SHIFT INDIC L / 2 / 3 / 4 / D / N / R / P - LOW FUEL WARN Fuel warning light is OFF / ON - OPEN DOOR WARN Open door indicator is OFF / ON - D-BELT REMIND D-belt indicator is OFF / ON - OIL PRESS WARN Oil pressure warning is OFF / ON - DISCHARGE WARN Discharge warning is OFF / ON - CRUISE INDIC "CRUISE" indicator is OFF / ON - SRS WARN "SRS" is OFF / ON - HIGH BEAM INDIC Hi-beam indicator is OFF / ON - TRC OFF INDIC "TRC-OFF" indicator is OFF / ON - SLIP INDIC "SLIP" indicator is OFF / ON - ODO/TRIP DISP ODO/TRIP display is OFF / ON - L-CRUISE DISP L-Cruise display is OFF / ON - L-CRS CHECK IND L-Cruise indicator is OFF / ON - L-READY IND "READY" indicator is OFF / ON - L-CRS NORMAL "NORM" indicator is OFF / ON - KEY REMIND BUZZR Key reminder Buzzer is OFF / ON - SEAT BELT BUZZR Seat belt buzzer is OFF / ON -
- DATA LIST NOTE: According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten work time.
- Warm up the engine.
- Turn the ignition switch to OFF.
- Connect the hand-held tester to DLC3.
- Turn the ignition switch to ON.

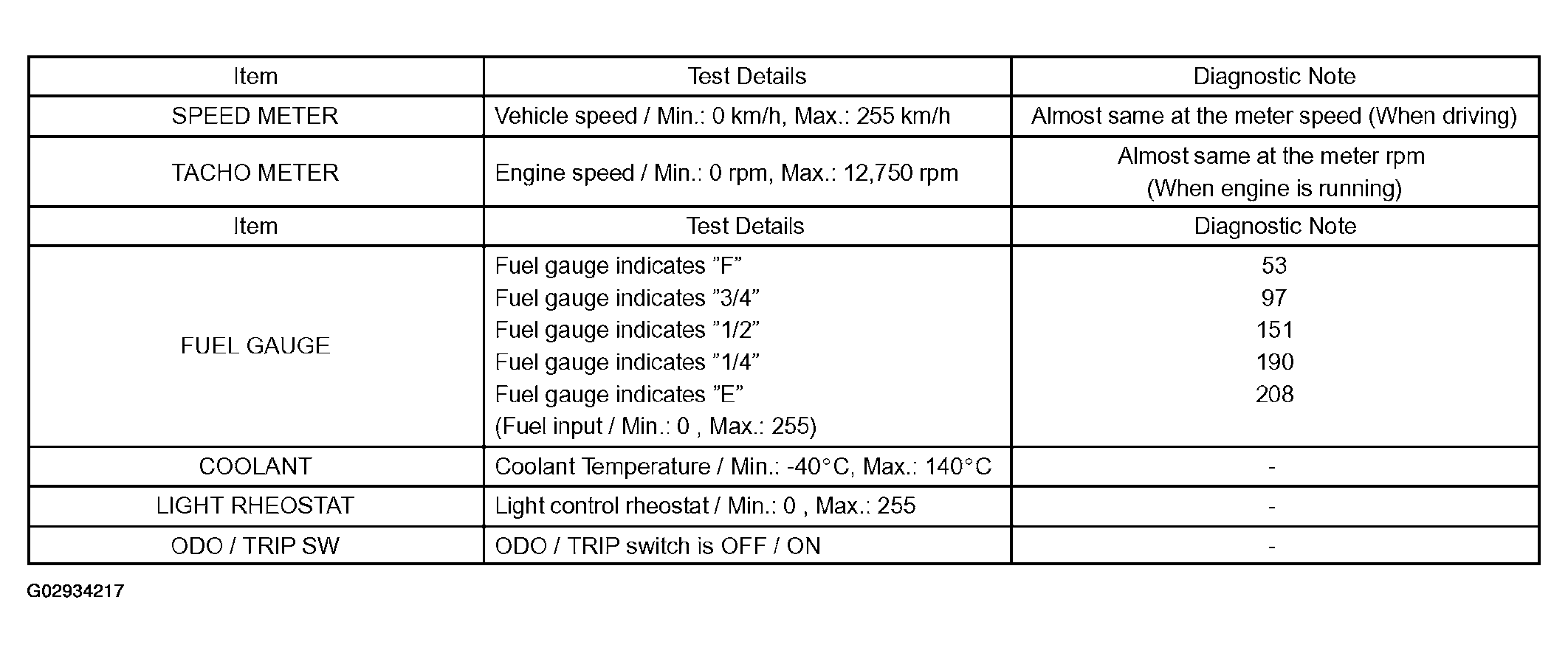

- Operate the hand-held tester according to the steps on the display and select "DATA LIST".
