Malfunction In Speedometer: Wiring Diagram

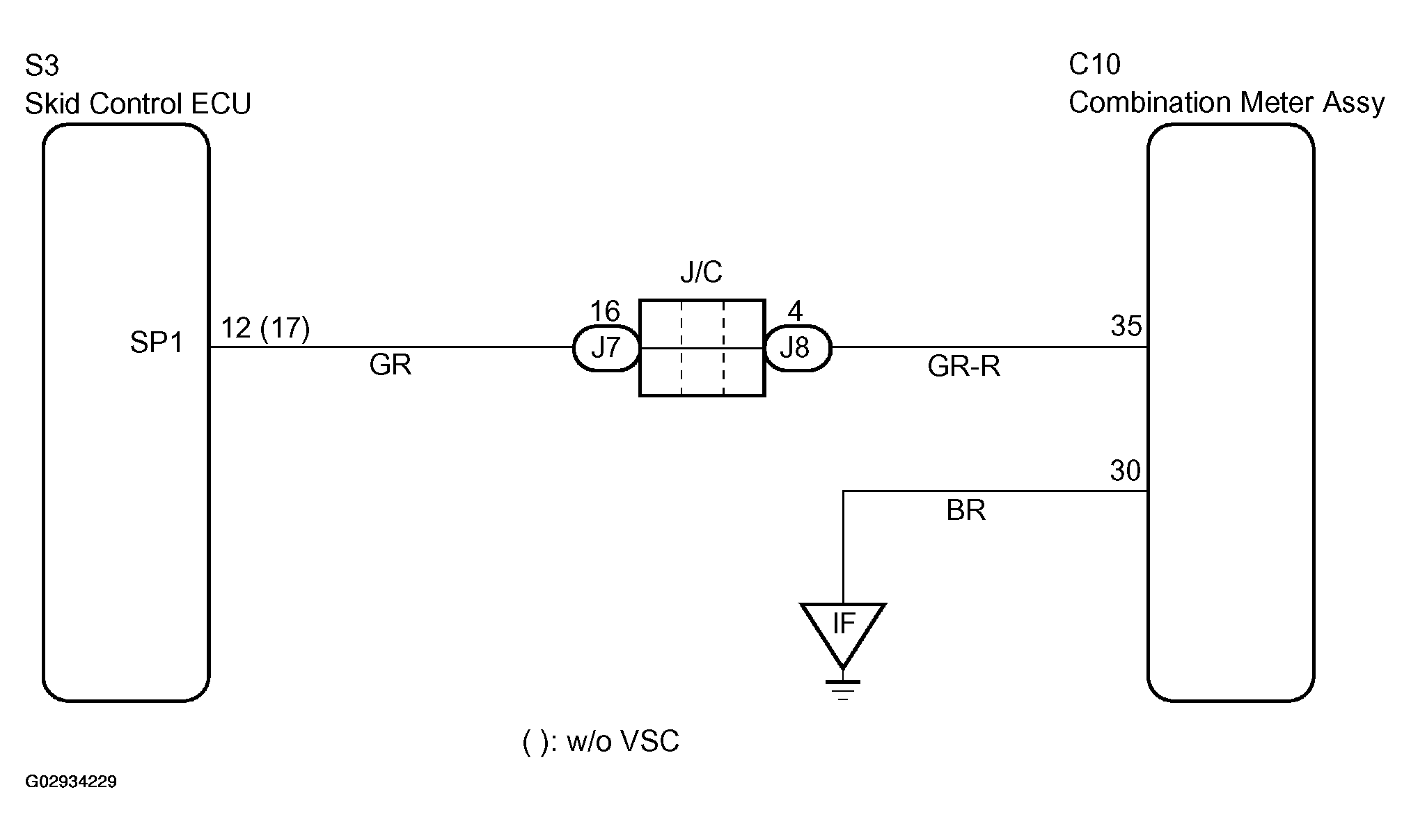

Fig 1: Wiring Diagram - Skid Control ECU

G02934229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
