Malfunction In Fuel Receiver Gauge: Wiring Diagram

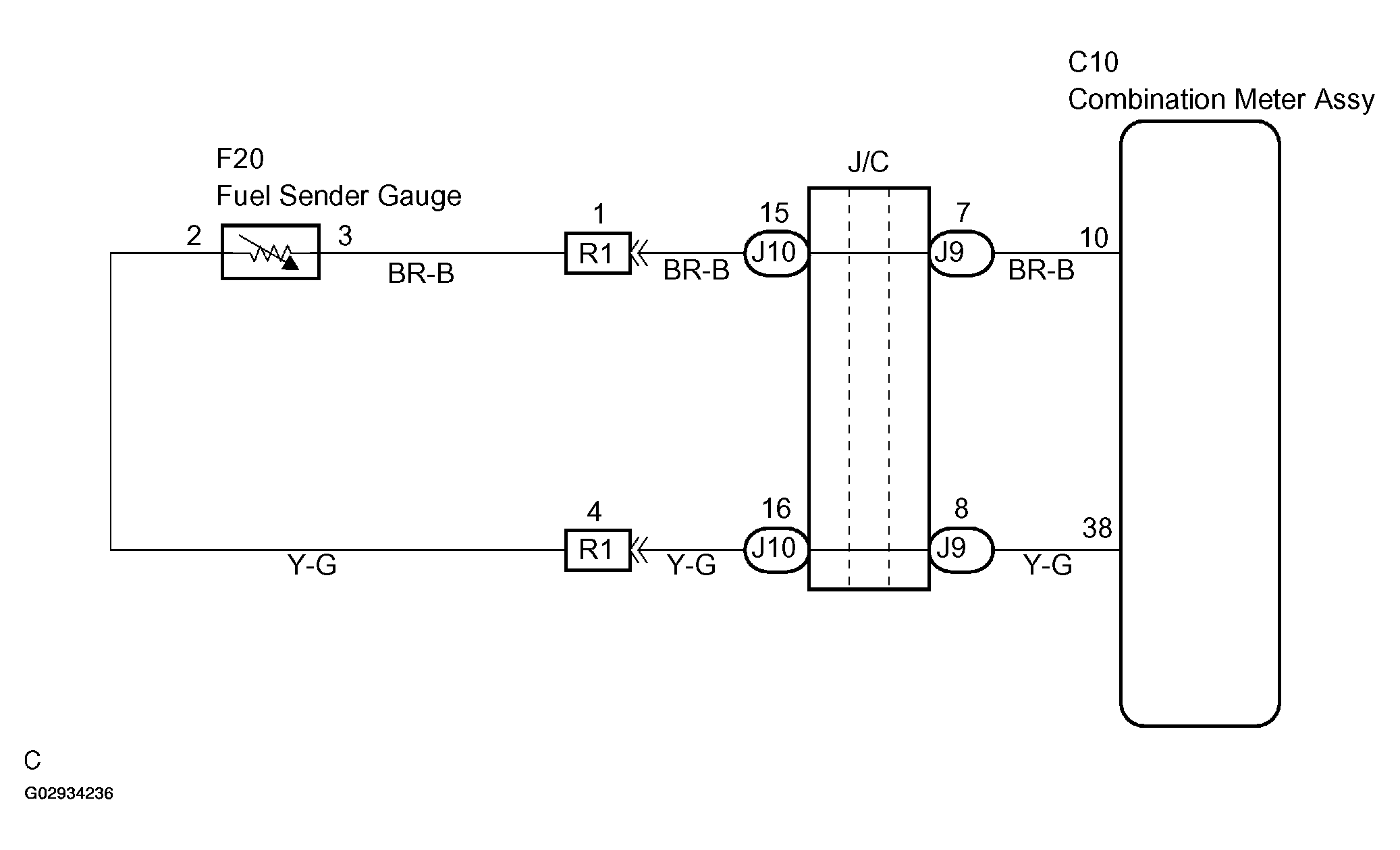

Fig 1: Wiring Diagram - Fuel Gauge

G02934236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
