Inspection Procedure

PERFORM ACTIVE TEST BY HAND-HELD TESTER (COMBINATION METER)

Operate the hand-held tester according to the steps on the display and PERFORM the "ACTIVE TEST".

ACTIVE TEST DETAILS

Item	Test Details	Diagnostic Note
FUEL GAUGE	EMPTY, 1/2, FULL	-

NG: CHECK AND REPLACE COMBINATION METER ASSY
OK: Go to next step.

READ VALUE OF HAND-HELD TESTER (COMBINATION METER)
1. Operate the hand-held tester according to the steps on the display and select "DATA LIST".

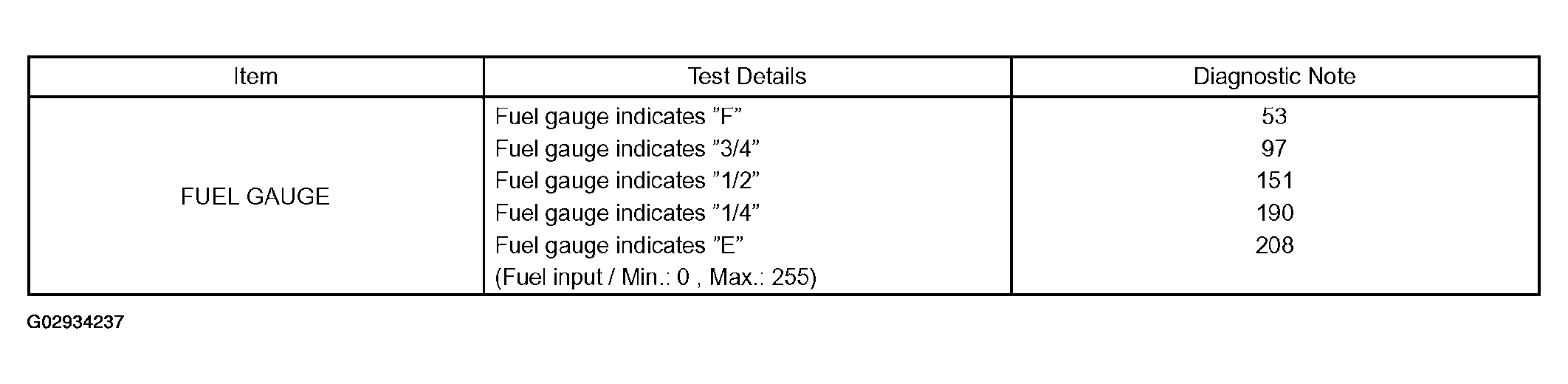

  Fig 1: Fuel Gauge Test Details
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: CHECK AND REPLACE COMBINATION METER ASSY
2. NG: Go to next step.

INSPECT FUEL SENDER GAUGE ASSY

Remove the fuel sender gauge assy.

Check that the float position is between E and F and measure resistance between the terminals 2 and 3 of the connector. Check that the resistance value changes continuously.

Fig 2: Identifying Fuel Sender Gauge Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

FLOAT LEVEL, POSITION, RESISTANCE

Float level	Float position mm (in.)	Resistance (Ω)
F	43.2 (0.17) +/- 3 (0.12)	4.0 +/- 1
1/2	5.2 (0.20) +/- 3 (0.12)	59 +/- 3
E	67.7 (2.67) +/- 3 (0.12)	110.0 +/- 1

Fig 3: Checking Float Position

NG: REPLACE FUEL SENDER GAUGE ASSY
OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
