Combination Meter - Diagnosis: Location

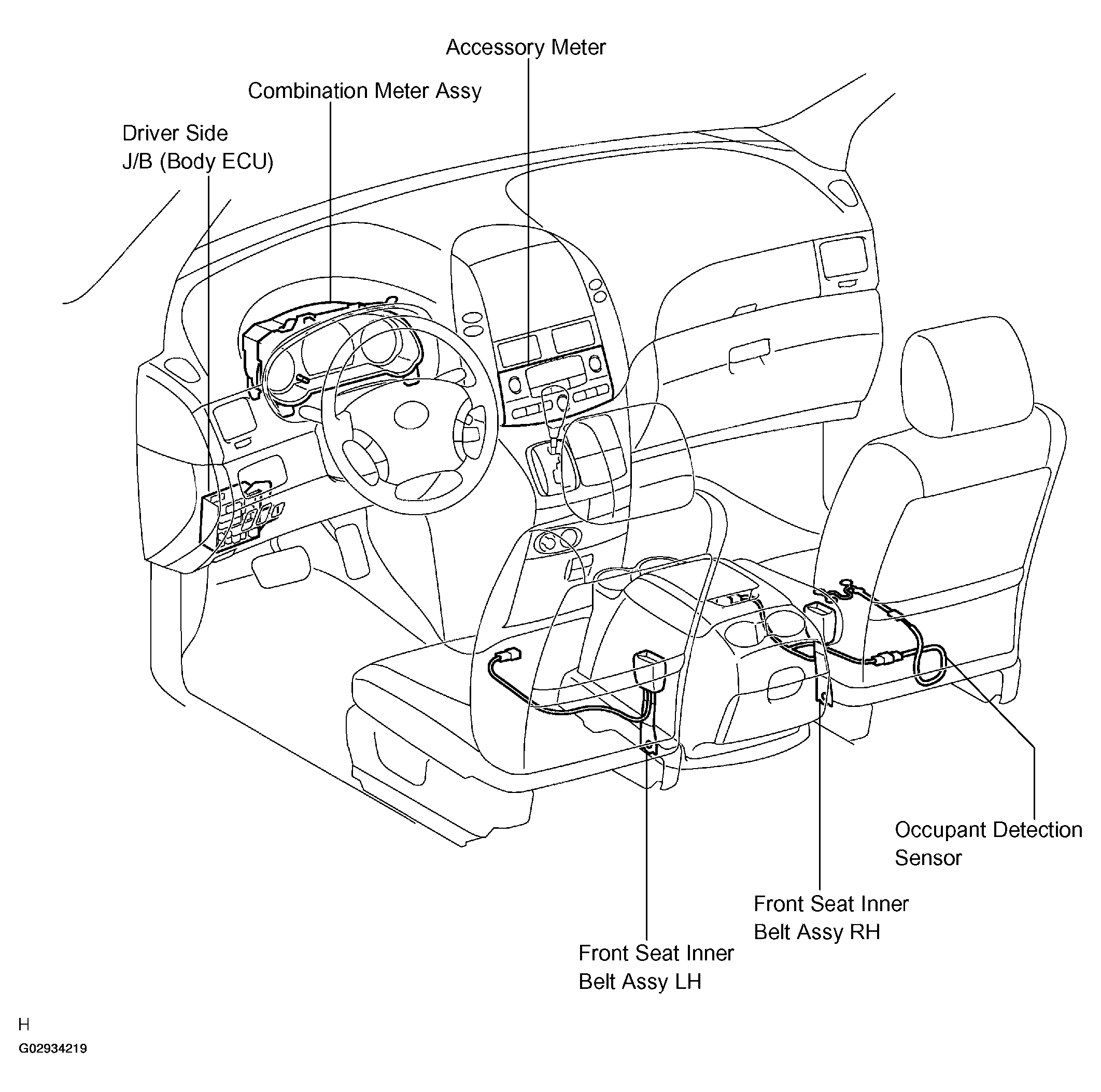

Fig 1: Identifying Combination Meter Connectivity Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

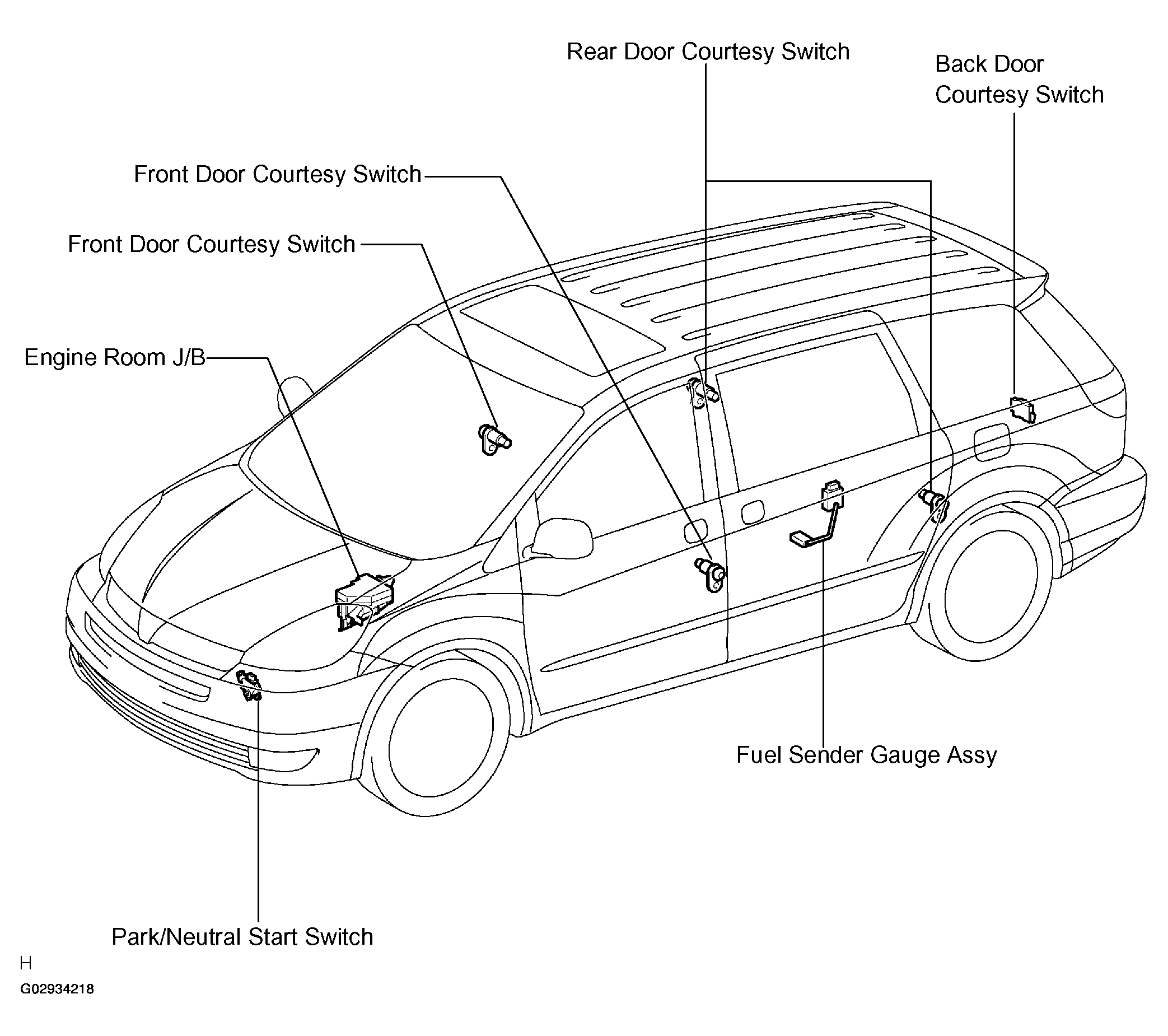

Fig 2: Identifying Combination Meter Connectivity Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

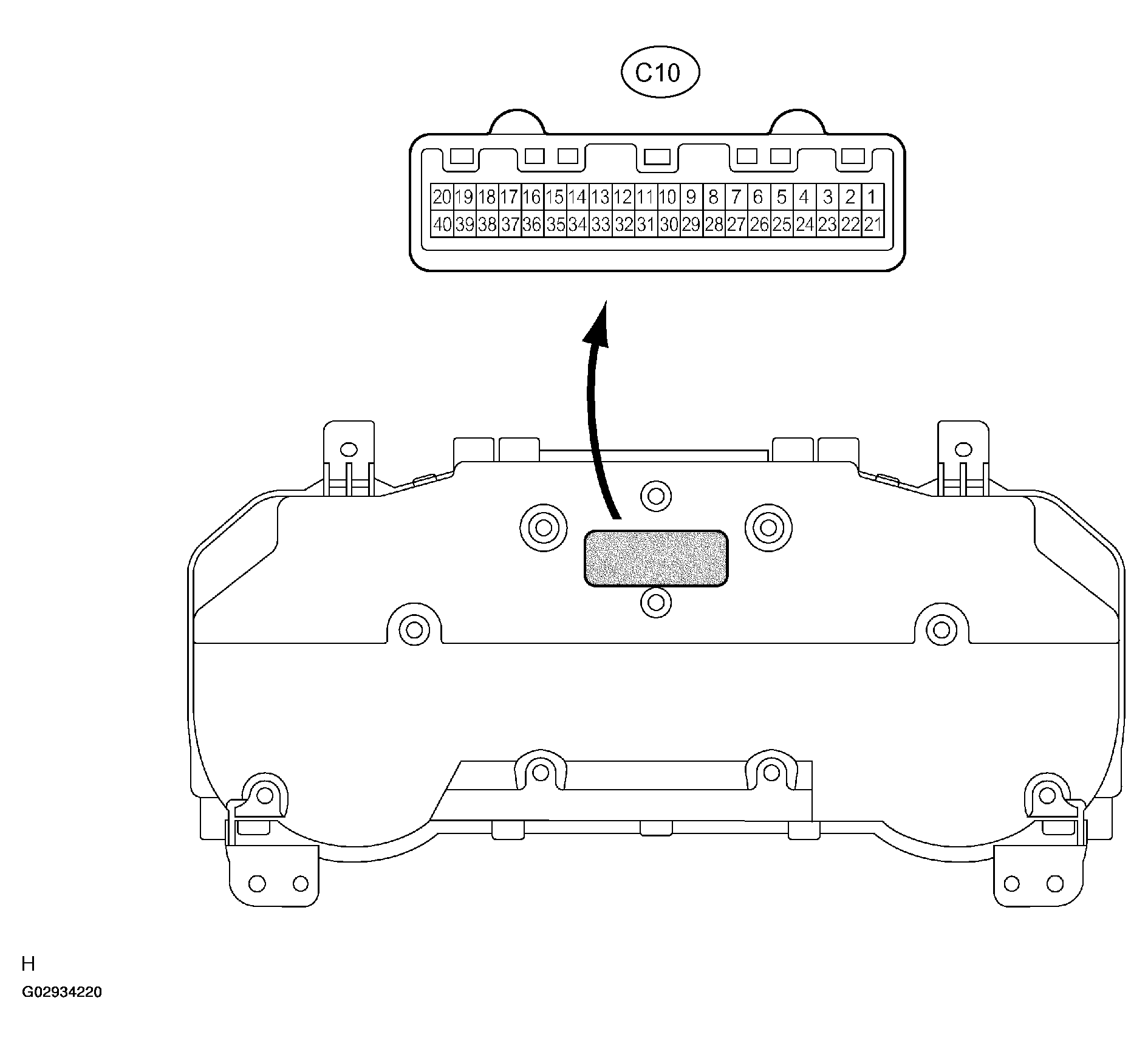

Fig 3: Identifying Combination Meter C10 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

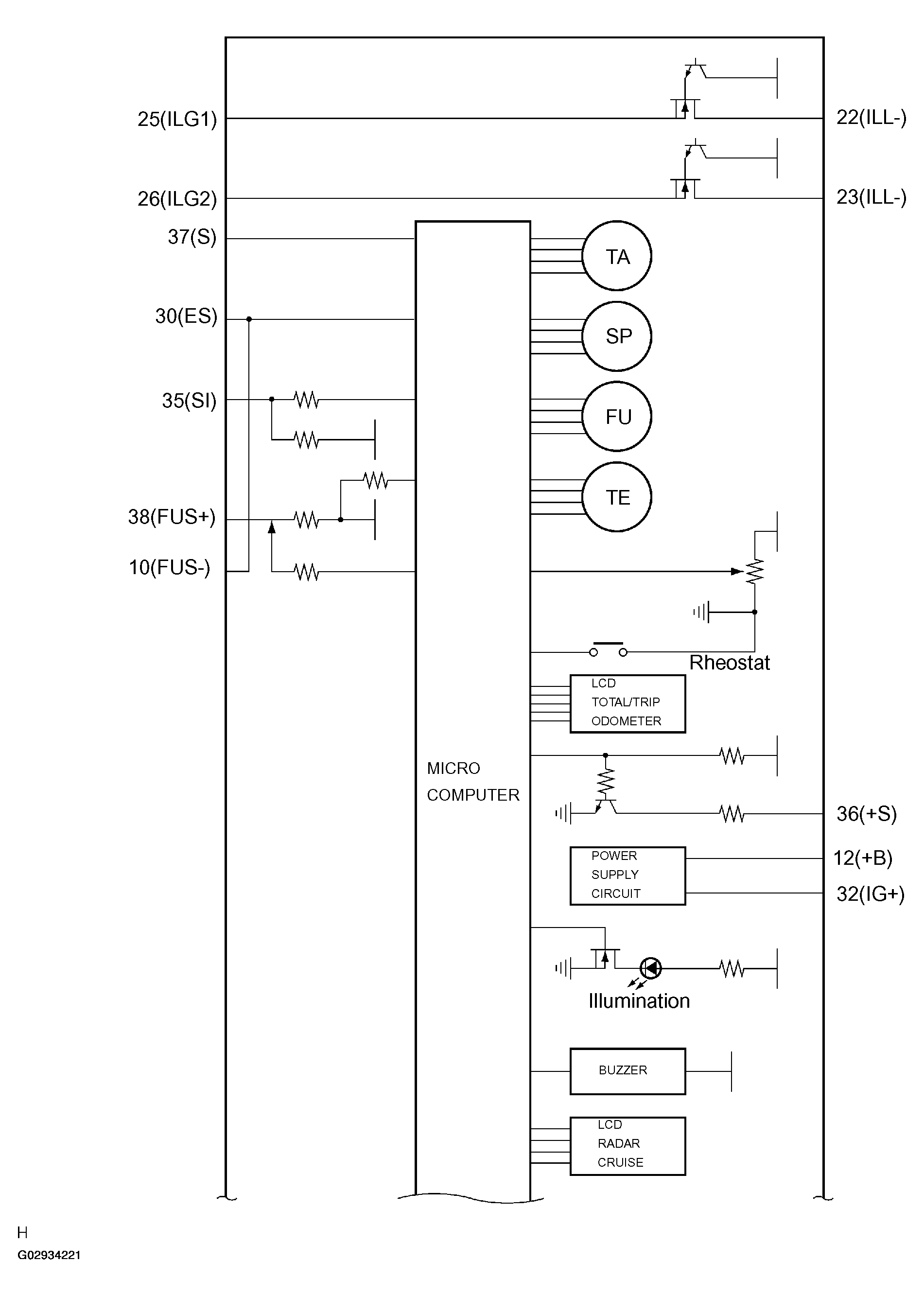

Fig 4: Combination Meter Circuit Diagram (1 Of 2)

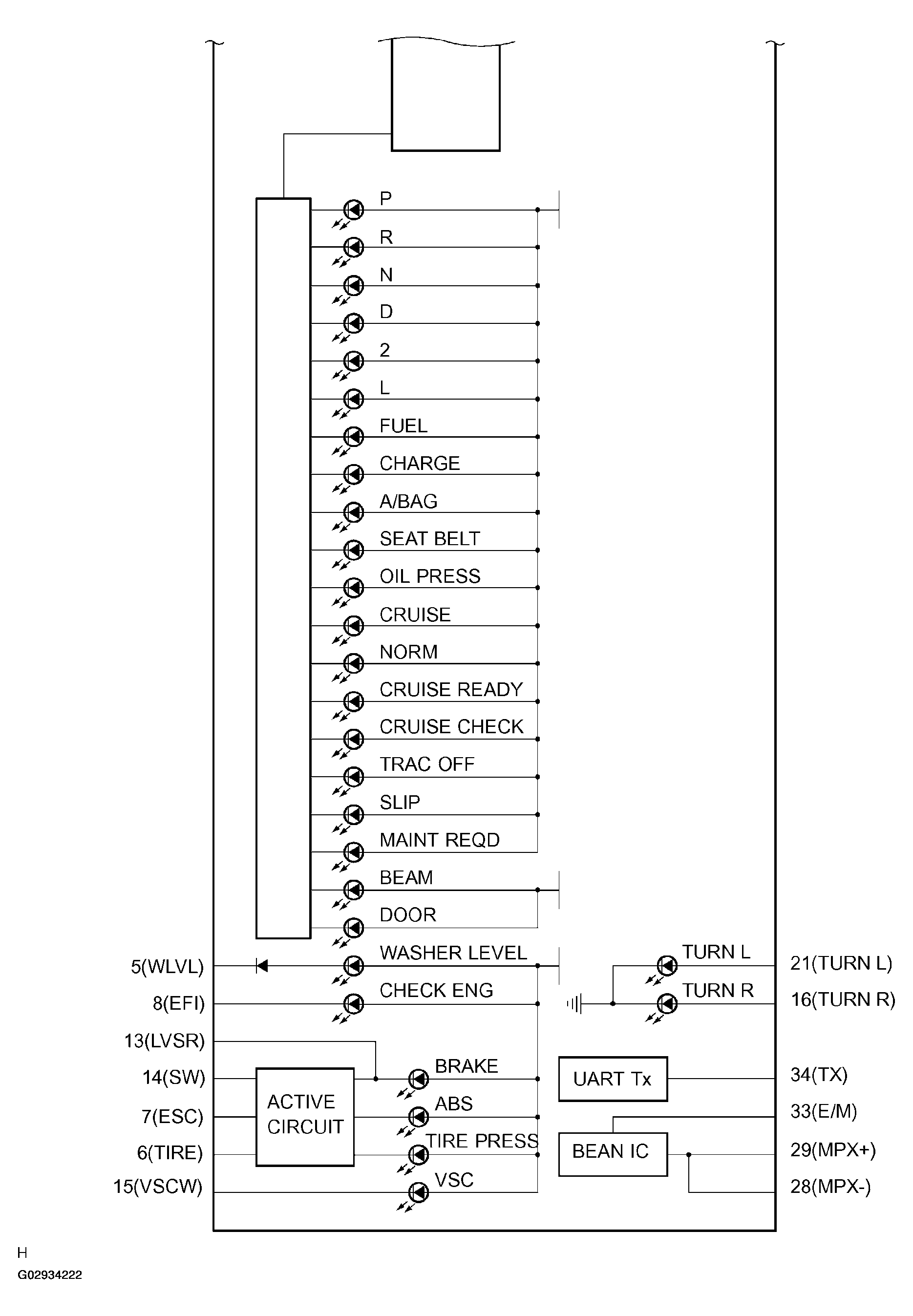

Fig 5: Combination Meter Circuit Diagram (2 Of 2)

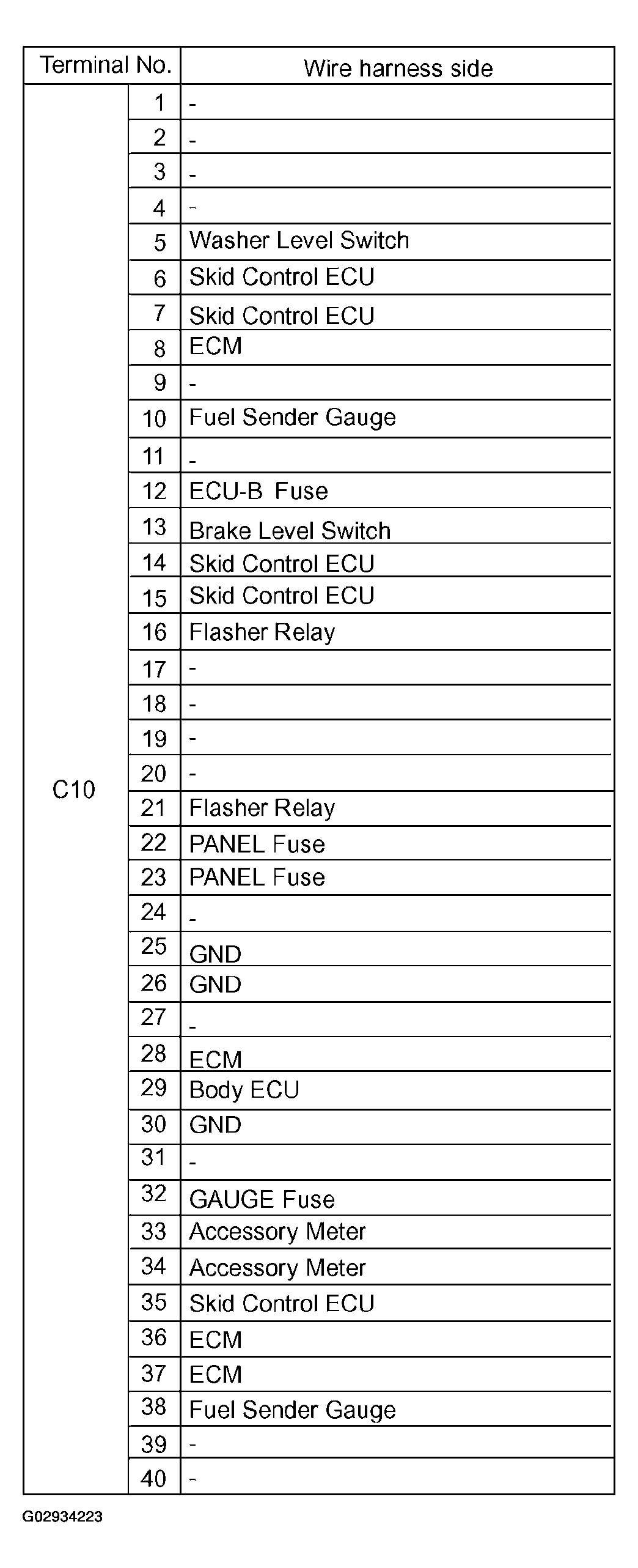

Fig 6: Combination Meter (C10) Connector Terminal Description Table
