Entire Combination Meter Does Not Operate: Wiring Diagram

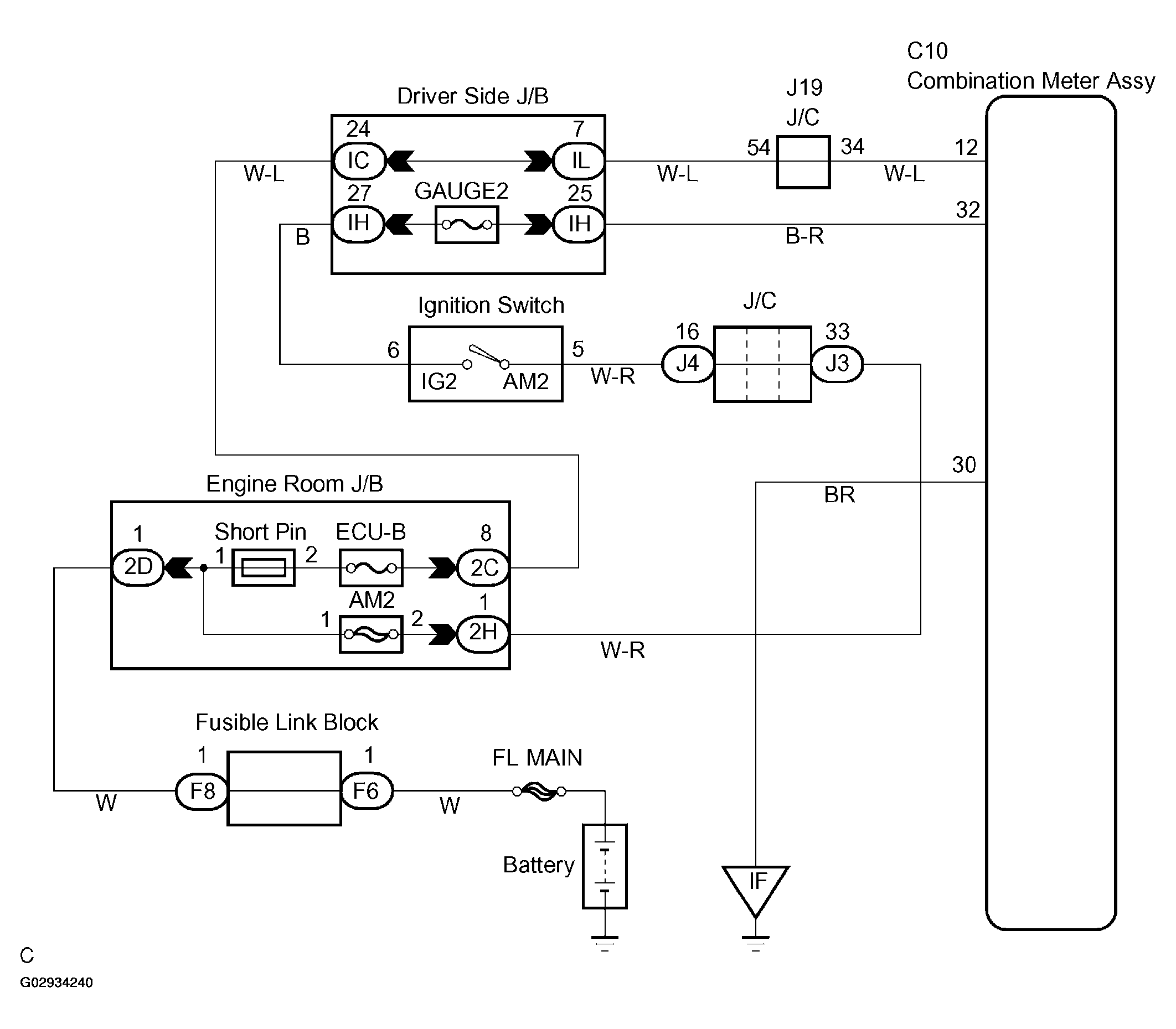

Fig 1: Wiring Diagram - Combination Meter

G02934240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
