Diagnostic Trouble Code Chart
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the chart below (Proceed to the page given for that circuit).

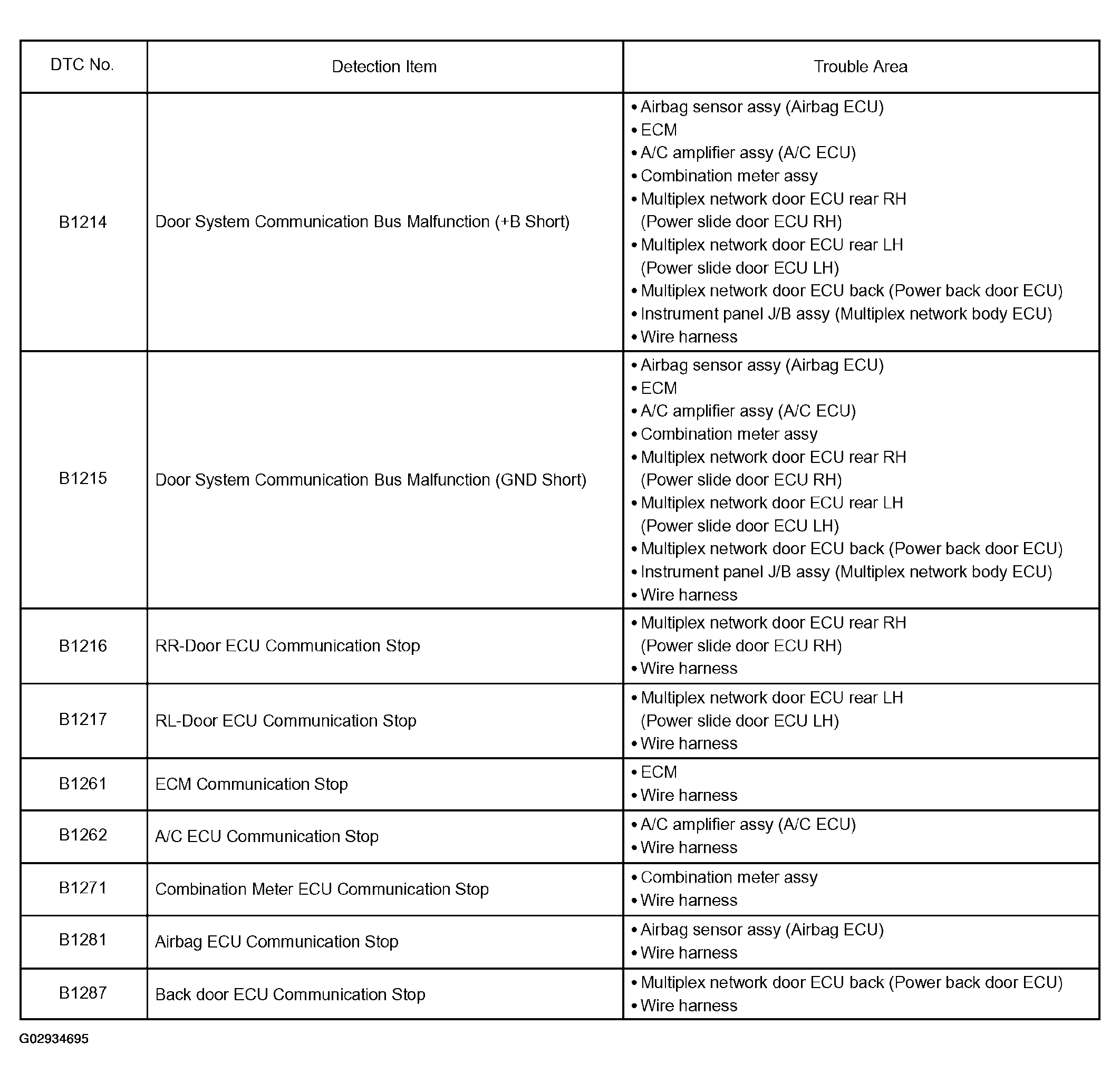

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC B1214, B1215 | DOOR SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT/GND SHORT) |
| DTC B1216 | RR-DOOR ECU COMMUNICATION STOP |
| DTC B1217 | RL-DOOR ECU COMMUNICATION STOP |
| DTC B1261 | ECM COMMUNICATION STOP |
| DTC B1262 | A/C ECU COMMUNICATION STOP |
| DTC B1271 | COMBINATION METER ECU COMMUNICATION STOP |
| DTC B1281 | AIRBAG ECU COMMUNICATION STOP |
| DTC B1287 | BACK DOOR ECU COMMUNICATION STOP |
