Parking Brake (Rear Disc System): Installation

For installation procedure, see Fig 1. For parking brake lever adjustment procedure, see PARKING BRAKE .

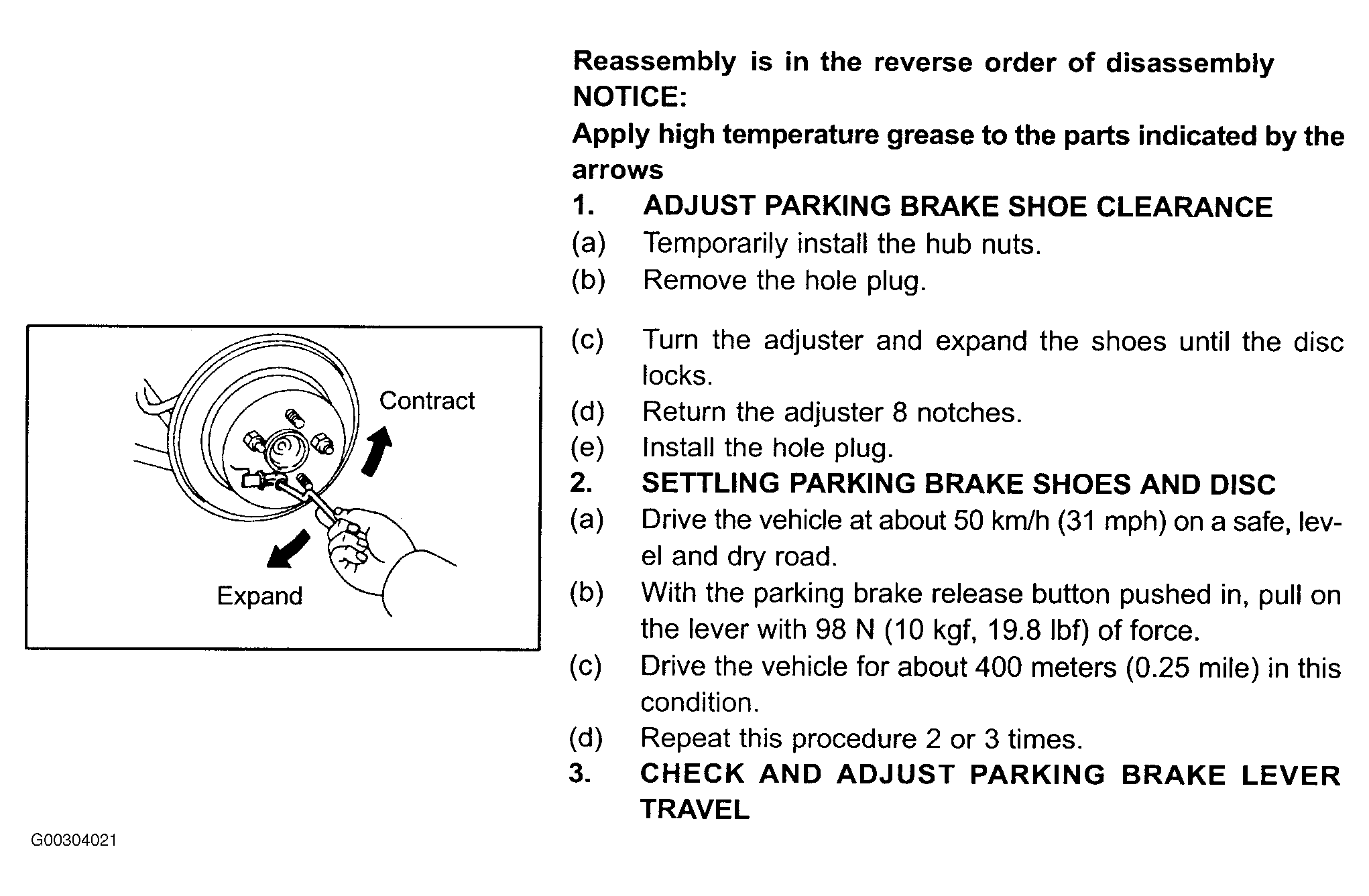

Fig 1: Rear Disc Brake Parking Brake Reassembly Procedure
